Sliding glass Door handle

Quick Learner from Carlock, IL

Apr 22, 2020 3:24 pm

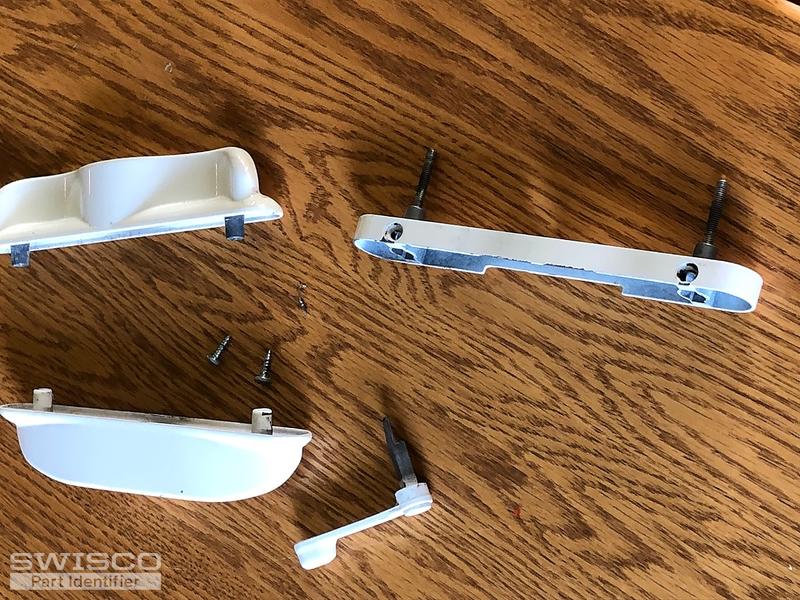

On one of the parts of the handle the part # is DR05-1540 and another is DR05-1530. I took off two handles, a latch and then a piece that the screws come through. The latch is the piece that is broke and it is for a sliding glass door.

4 user uploaded images

5 Replies

Tom from SWISCO

Apr 24, 2020 2:03 pm

I recommend our 82-080 handle set. This looks very similar to the hardware in your photos. Please review our information to confirm that everything matches up.

Quick Learner from Carlock, IL

Apr 24, 2020 3:37 pm

I think 82-080 is the right part, but the only part that is broke is the latch would part 82-240 work on the 82-080 handle set? Thanks!

Tom from SWISCO

Apr 27, 2020 9:14 am

The 82-240 latch is definitely compatible with the 82-080, though there's no guarantee that it will work on your older style set. It may be worth a shot, at least, especially if that's the only broken piece. If worse comes to worst, you can see our return policy here.

Quick Learner from Carlock, IL

Apr 27, 2020 10:43 am

Ok thanks I think I will try it then. Thanks for your time.
