Sliding glass door

Home Owner from Mccormick, SC

Mar 1, 2025 4:56 pm

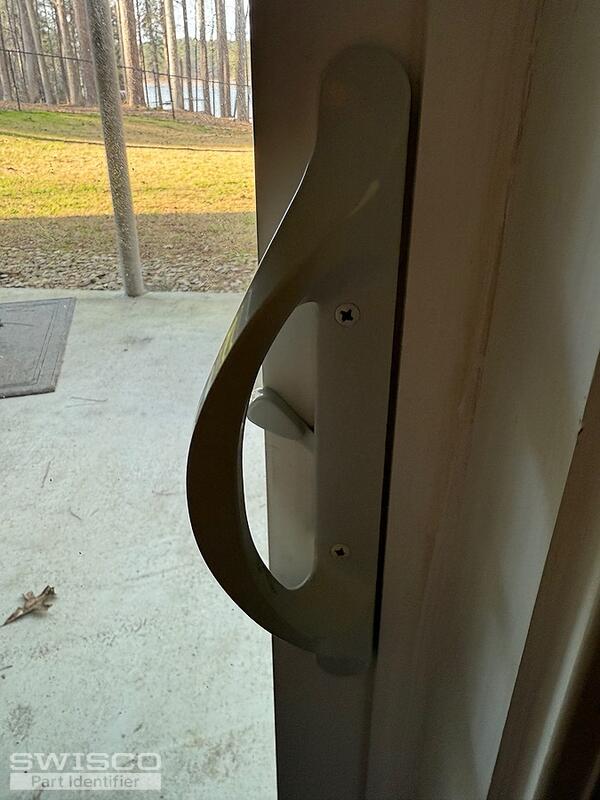

I need a keyed lock to fit this sliding glass door. I would also like to add a screen if possible. I attached the only numbers I can find on the door.

4 user uploaded images

7 Replies

Bob from SWISCO

Mar 2, 2025 11:18 pm

Hello there. Is the thumb lever with the inside pull perfectly centered between the two mounting holes on the pull base? It looks like it is, but please double-check to be safe. If so, the 82-030A Keyed Handle Set will work as a replacement.

I am afraid we do not sell replacement screens. A local hardware store or one of the big box stores should be able to help with this. I apologize we can't help with that, and let us know if you have further questions.

Home Owner from Mccormick, SC

Mar 5, 2025 12:56 pm

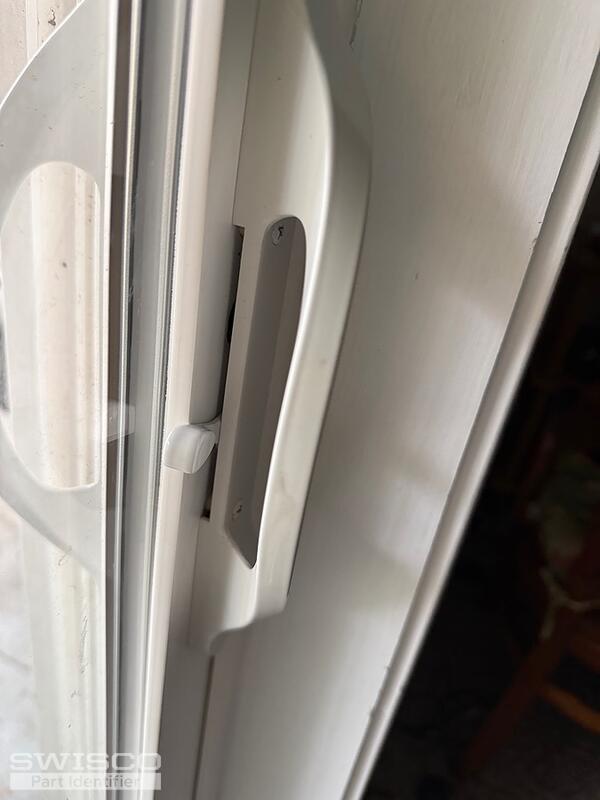

It is not centered see additional picture it is more toward the bottom. Screws are 3 7/8 apart center to center of screw heads.

1 user uploaded image

Bob from SWISCO

Mar 6, 2025 8:17 am

Thanks for verifying! With that in mind, our 82-030B would be a better option. This has an offset thumb lever and key lock.

Home Owner from Mccormick, SC

Mar 15, 2025 1:23 pm

I have more Info on the current handle it is a Truth 45586 handle set currently on that sliding door. That is what is stamped on the inside of the handle part. I wanted to be sure the keyed replacement was still the same one considering this new information.

Home Owner from Mccormick, SC

Mar 15, 2025 1:28 pm

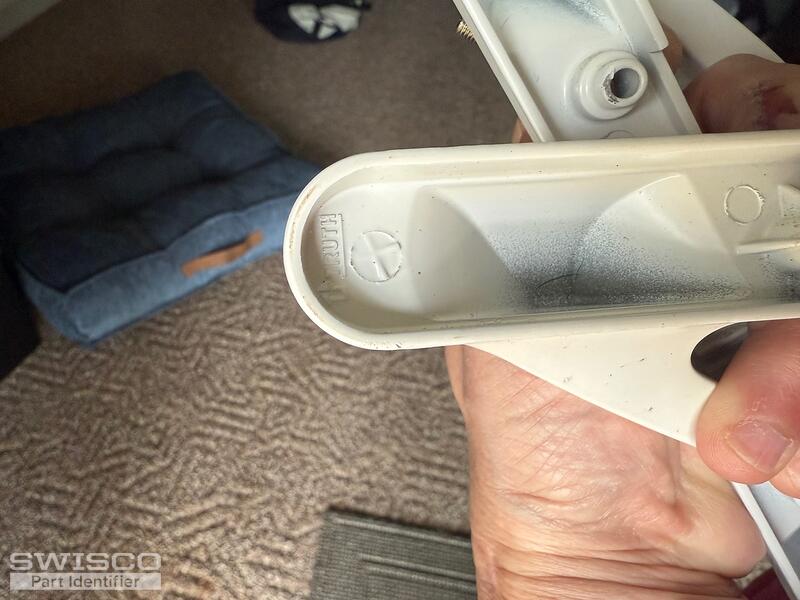

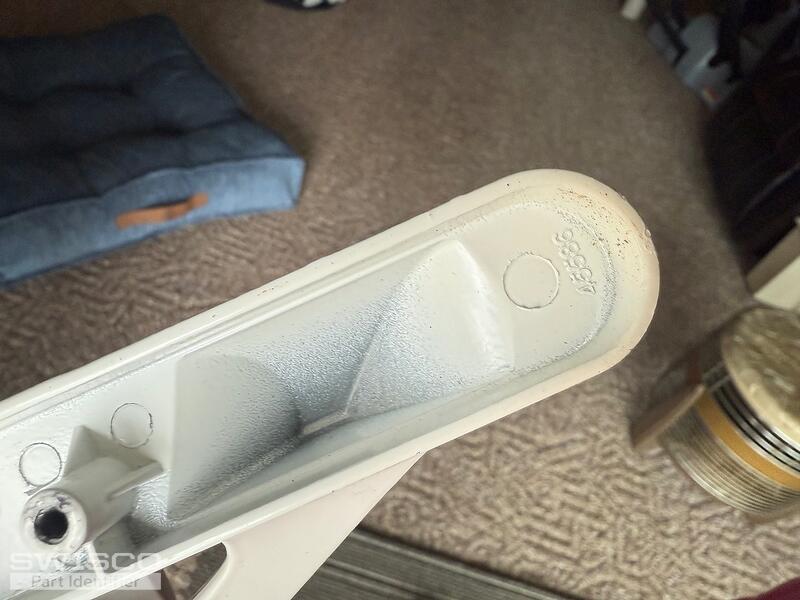

Pics of current handle and number Truth 45586 thumb lock offset toward bottom of handle.

2 user uploaded images

Bob from SWISCO

Mar 17, 2025 8:44 am

Thanks for the additional information. That stamp doesn't really change the situation all that much. We don't sell this exact handle set, so the best we can offer is an alternative. The 82-030B should work as long as the following criteria are met:

The installation holes are 3-15/16" apart, center-to-center
The thumb lever is offset

If those details don't match, let me know and we can work from there. Otherwise the 82-30B should work perfectly well.
