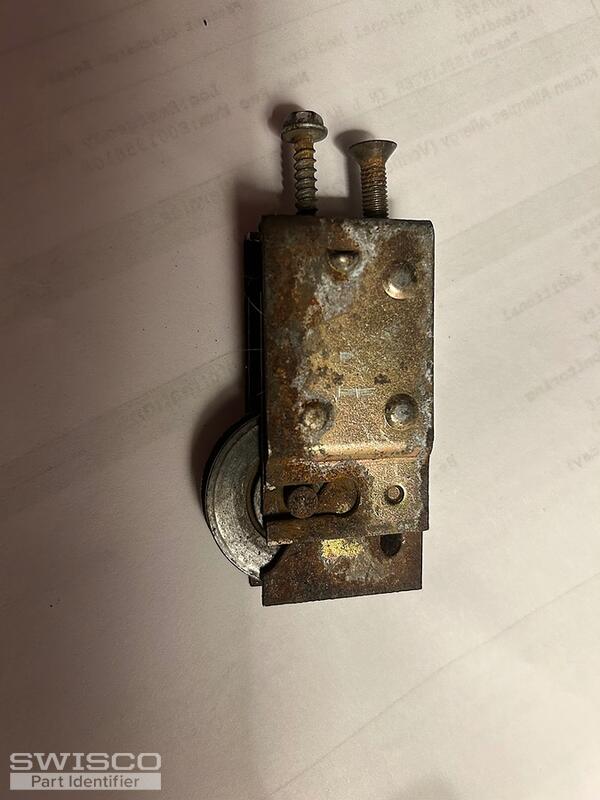

First the adjustment screw is on the top as opposed to the bottom.
The outer housing measures 2 1/8 but the inner housing extends 5/16 past the outer housing measuring a total of 2 7/16.
The height of housing is 1 3/16.
The thickness is 3/4.
And wheel is steel concave 1 1/4.
Everything in inches.
It is from a rental house that I maintain for a guy and I didn't think to take a picture of it installed. Hope I gave you enough info
Sliding glass door description

Handy Person from Hot springs village, AR
Mar 15, 2024 12:32 am
1 user uploaded image
2 Replies

Casey from SWISCO
Mar 18, 2024 8:54 am


Hello,
Your roller resembles the 81-298 at first glance. We'll include the dimensions from our product page below. Take a look and let us know if you need anything else. Thank you!

Dimensions for 81-298
