Sliding glass door handle

A home owner from Thornton says:
August 16, 2017
The inside handle is wooden but the metal part that screws to the door is gray. On the outside, the handle is white. On the outside handle it says SASHCONTROLSINC with the number PT 1963 and then a number 2 a little farther down. The metal part is broken and I need to replace it.
Thanks!

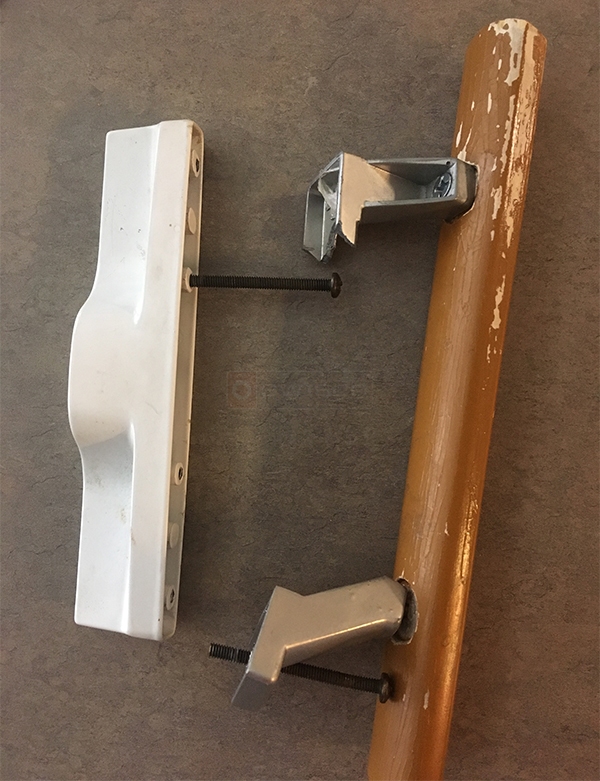

User submitted a photo of patio door hardware.
Profile picture of Dave Sr.
Dave Sr. from SWISCO responded:
August 22, 2017
Would you be able to show us the rest of the handle plate? Much of it is broken off, and I'd like to see how it locks the door, either through a hook latch like our 82-003, or through a lever that interacts with a mortise lock. Can you also tell me the installation hole spacing, center-to-center?
A home owner from CO says:
August 25, 2017
Unfortunately, the rest of the handle has been lost so I can't show you any more of it. However, I

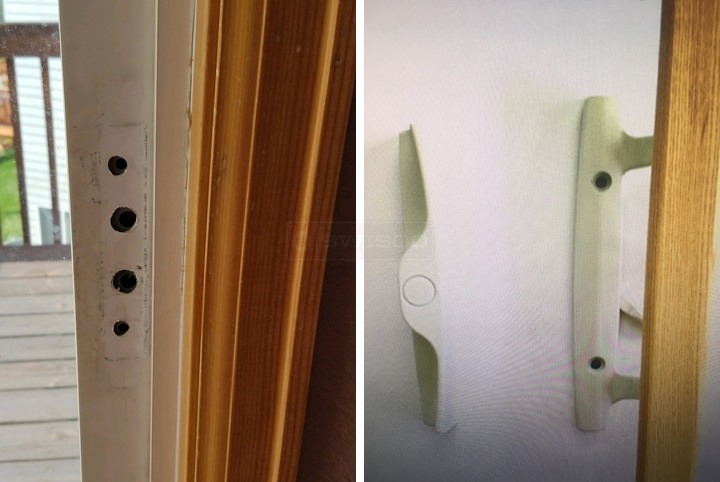

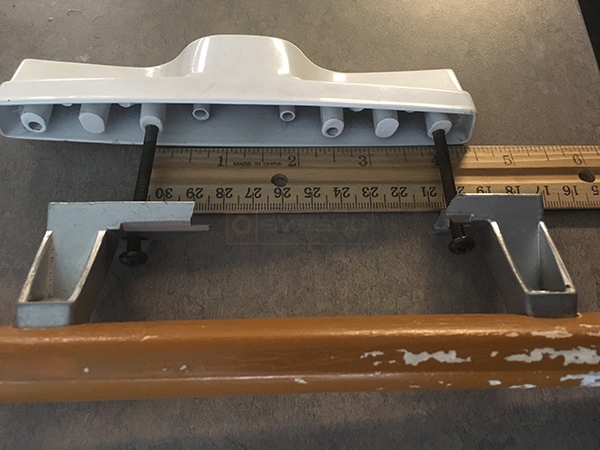

User submitted photos of patio door hardware.
User submitted photos of patio door hardware.
Profile picture of Dave Sr.
Dave Sr. from SWISCO responded:
August 29, 2017
Thank you. It looks like your door uses an internal mortise lock. That third picture itself closely resembles our 82-035. Start with that and see if you could get it to work.
