Sliding glass door handle replacement

Question

If I measured correctly the measurements are as follows;

7x1 flat side of handle

9 1/2 x 1 where curved handle is

between the screws is - 3 9/16"

from top if screws to bottom of screws 4 1/4

not sure if I measured correctly.

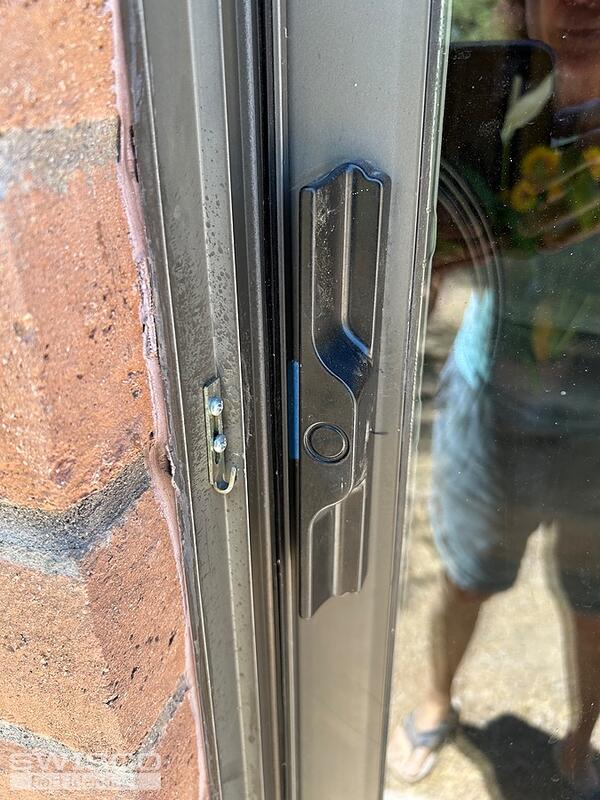

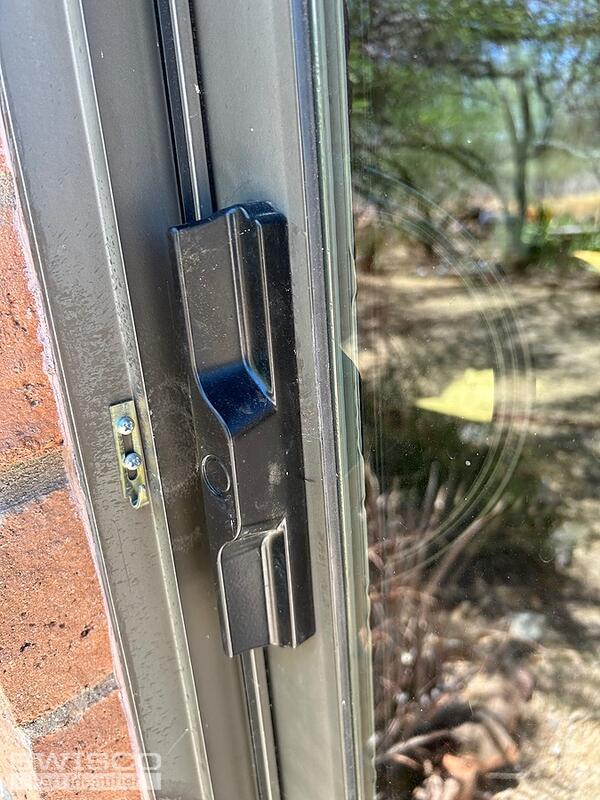

As per the picture the front side where the handle is broken where the screws are.

i hope you can help, thank you

my name is Rita

Bob · Accepted Answer

Hello there. Double-check the hole spacing. From the center of each mounting hole, I suspect the hole spacing is actually 3-15/16". If so, the 82-030 handle set should work for you.

Hole center dimensions for 82-030
