Sliding glass door handle with lock.

Home Owner from Carmichael California
Mar 28, 2024 2:02 pm
Need loxk mechanism, level to lock/unlock door. Would also consider buying full replacement.

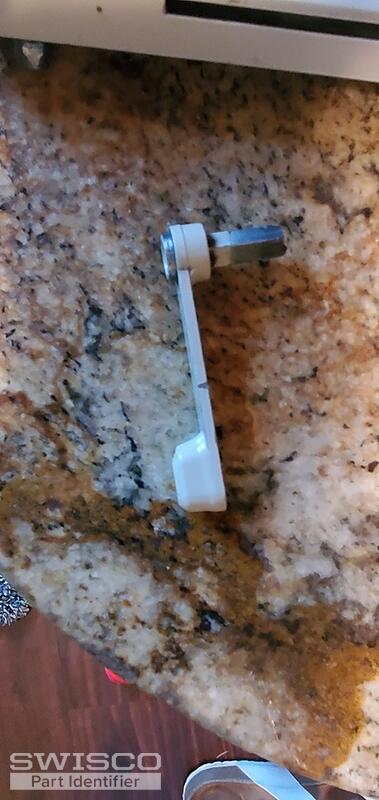

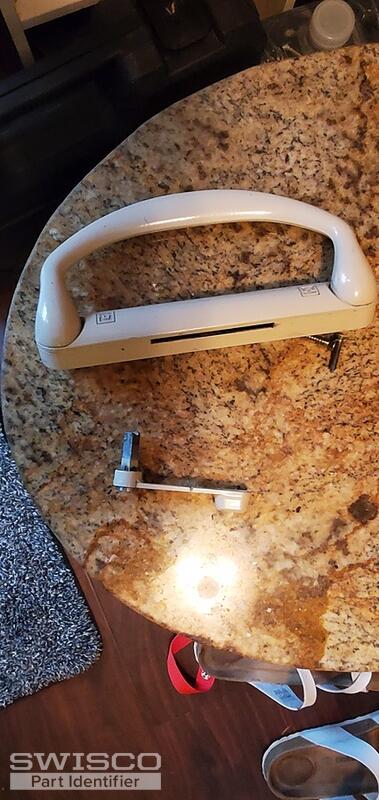

20240326_104911 20240327_182601 20240327_182609 20240327_182635 20240327_182641
5 user uploaded images
1 Replies
+ Add a Comment
Bob
Bob from SWISCO
Mar 28, 2024 6:34 pm
SWISCO
EXPERT

Thanks for posting. This thumb lever looks like the 82-240. Note that if the lever broke, it is possibly due to the mortise lock in the door having malfunctioned. To test this, remove the handle set from the door and try manually 'throwing' the lock with a slotted screwdriver. If it doesn't budge, then you know the mortise lock has to be replaced as well. See our 82-238. For an all-new keyed handle set, see the 82-081. Let me know if you have any questions.

+ Add a Comment
Products and resources found in this discussion
Roto Multi-Point Mortise Latch Lever
Roto Multi-Point Mortise Latch Lever
82-240
$5.20
Keyed Mortise Style Handle Set, 4-15/16"
Keyed Mortise Style Handle Set, 4-15/16"
82-081
$62.05
Double Hook Mortise Lock
Double Hook Mortise Lock
82-238
$39.80
