Sliding glass door lock

Quick Learner from Jonesboro, Ga
I need the part that actually goes on the door ... I have the part that it locks into as the picture shows. I'm having a hard time finding the part that fits into the actual door . All I can find is locks that are squared off instead of oval. Can you please help me?
2 user uploaded images
6 Replies
Emily
Emily from SWISCO
SWISCO
Expert

Hi there!

It looks like you're referring to your mortise lock. Could you show us a picture of your original mortise lock? We would need to know the dimensions as well.

Thank you!

Quick Learner from Jonesboro, Ga
I wish I could show you the lock but unfortunately I can't...it dropped down inside the door! That's why we need another one!
Emily
Emily from SWISCO
SWISCO
Expert

Unfortunately, without the original, we won't be able to identify a replacement mortise lock for you. There's simply too many options and we'll need to narrow them down by comparing your original to our inventory.


Quick Learner from Jonesboro, Ga

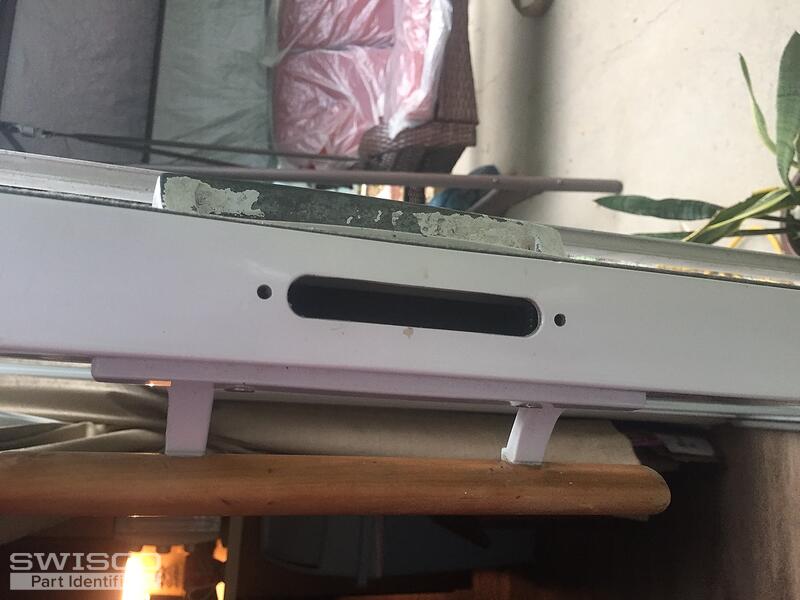

The oval cut out is exactly 3 inches and the screw holes are exactly 4 inches.
2 user uploaded images
Emily
Emily from SWISCO
SWISCO
Expert

Take a look at our 82-218 and compare our dimensions to your cutout and installation holes. We can't guarantee this will work for you but it's our best option.
