Sliding glass door lock

Quick Learner from California
Aug 16, 2024 5:41 pm

I have a 870 Series patio sliding door with a broken lock. I believe it's the keeper that is broken. How do I order a replacement lock?

1 user uploaded images
3 Replies
Bob
Bob from SWISCO
Aug 16, 2024 10:15 pm
SWISCO
EXPERT

Thanks for posting. The handle set is our 82-086 or 82-089. This handle set works with a number of different mortise locks and keepers. Please open the door and show us photos of both the mortise lock, as well as the keeper (which is the strike plate on the door frame the lock attaches to). We can narrow down what may work for you from there.

Quick Learner from California
Aug 17, 2024 3:50 pm
Here are the additional pictures you requested.

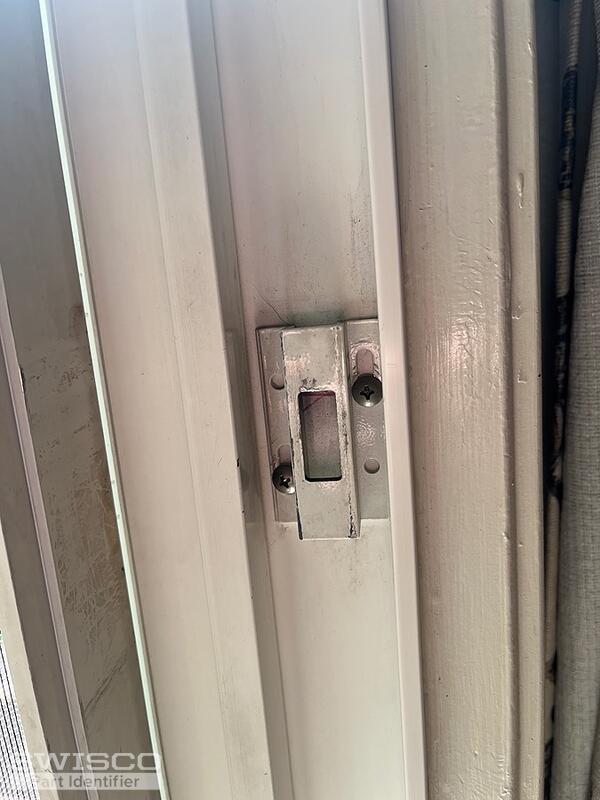

IMG_7563 IMG_7564 IMG_7565
3 user uploaded images
Bob
Bob from SWISCO
Aug 17, 2024 10:37 pm
SWISCO
EXPERT

Perfect, thanks. The mortise lock is our 82-226. For the keeper, see how our 89-029 matches up.

Alternate image for 89-029
Alternate image for 89-029

 To test if the mortise lock is broken, try removing the handle set and then manually 'throwing' the lock with a slotted screwdriver. If it doesn't budge or is stiff, then you know a new 82-226 is necessary. Let me know if you have further questions.
