Sliding glass door lock replacement.

Quick Learner from Brooklyn, NY

Feb 9, 2017 7:04 pm

Sliding glass door lock is broken (and removed). Need replacement. I don't currently have the original lock. The cutout facing the door's width is .5" wide x 4.25" height.

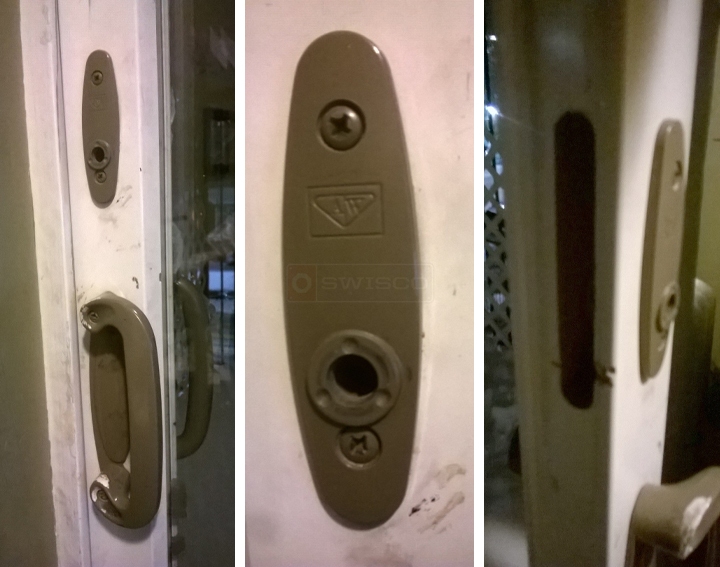

User submitted photos of patio door hardware.

4 Replies

Quick Learner from Brooklyn, NY

Feb 9, 2017 8:23 pm

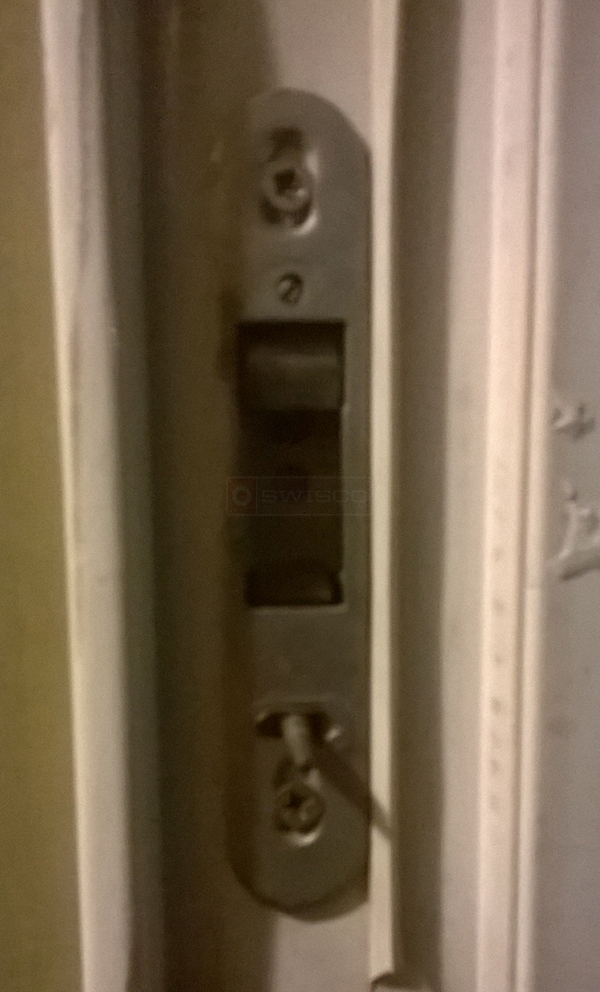

This is the view from the receiving side.

Quick Learner from Brooklyn, NY

Feb 9, 2017 10:46 pm

To clarify: The door itself has an empty cutout space .5" x 4.25" while the receiving plate on the opposite doorframe is .5" x 5.25"

Paul from SWISCO

Feb 15, 2017 11:30 am

Looks like you have an old Andersen door. The inside thumb latch could be our 82-043, while the mortise and strike are look like the parts in our 82-037 set. They are the new replacements used by Andersen. See what you think!
