Sliding glass door mortise

A quick learner from Nevada says:

September 13, 2020

Hi
I am trying to replace the mortise latch for my sliding glass door. The door has a metal plate and I cannot fit the mortise latch in position. I bought a PLPCI 45 degree E2014 adjustable latch with no luck. Any suggestions? The door did not have a latch when I bought the house in 2008. I have attached a picture of the sticker on sliding door.

Thumbnail of the uploaded file named EE1FDF81-EF31-459F-A818-70B774665A67.jpeg

Thumbnail of the uploaded file named 4351D993-5275-4F9D-8310-3AF4F8591544.jpeg

Tom from SWISCO responded:

September 16, 2020

I'm not sure what mortise lock you need, unfortunately. Your photos don't indicate what it would have been. Can you show me a picture of the hole where the mortise goes? Can you also tell me the size of that hole, and the distance between the two screw holes on either end?

A quick learner from Nevada says:

September 23, 2020

Hello again.
I attached some pics and measurements for you to see if it can be determined what I might need to fix the mortise lock on my sliding door.

Thumbnail of the uploaded file named 0408A0CF-63FE-41A4-9CE5-C311F266272B.jpeg

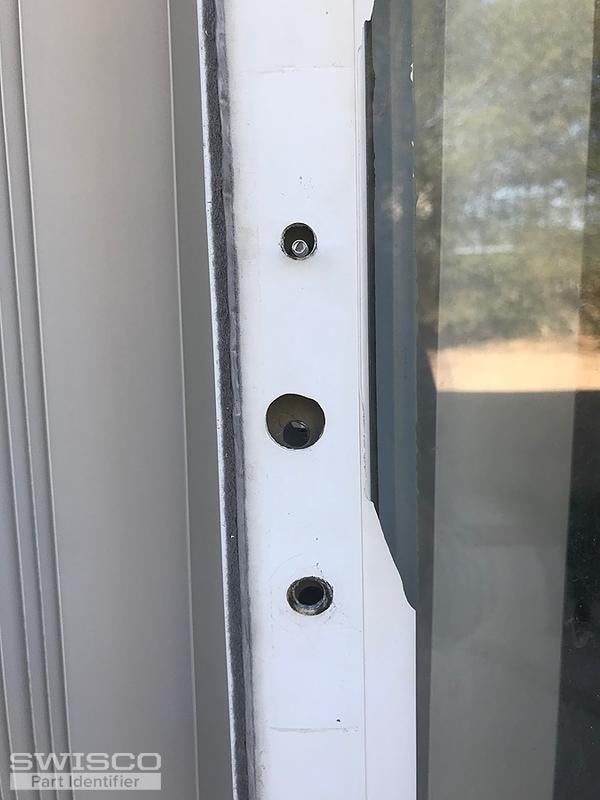

Thumbnail of the uploaded file named ACF3985B-C3D7-4679-901F-96FB022F18EC.jpeg

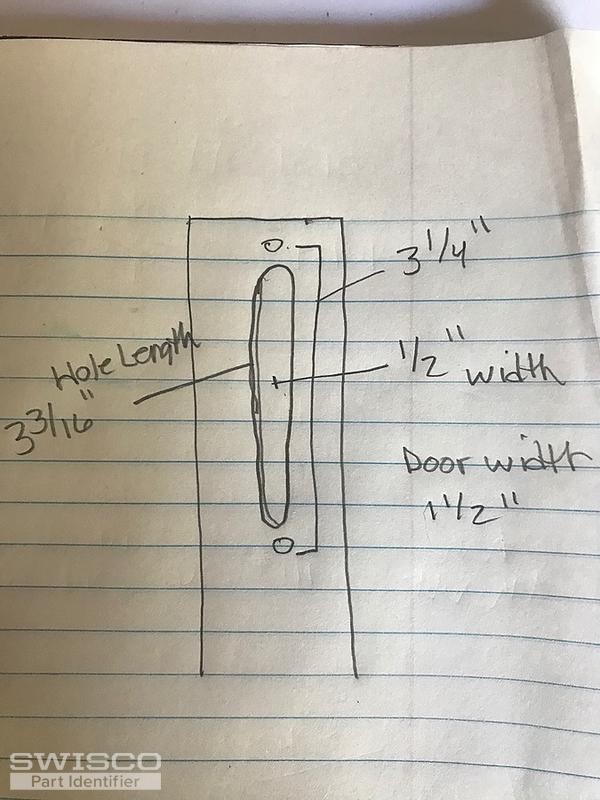

Thumbnail of the uploaded file named 075597A3-C540-4CE0-B3E6-4DBA51DA82D2.jpeg

Tom from SWISCO responded:

September 24, 2020

I believe you might need the 82-218. Review the dimensions on its product page and see if this looks right. The video below shows how to install this mortise lock.

A quick learner from Nevada says:

September 26, 2020

Thanks Tom!
I will give it a shot when I get the part and let you know.
The inner metal plate, on the door seems to be a mystery as I haven't seen this feature on any DIY tutorials I've looked at.
Wish me luck.
Patty

Mortise Lock, Round Face, 3-11/16"

82-218

$11.70
