Sliding glass door parts

Home Owner from Charleston, SC

Sep 9, 2022 8:56 am

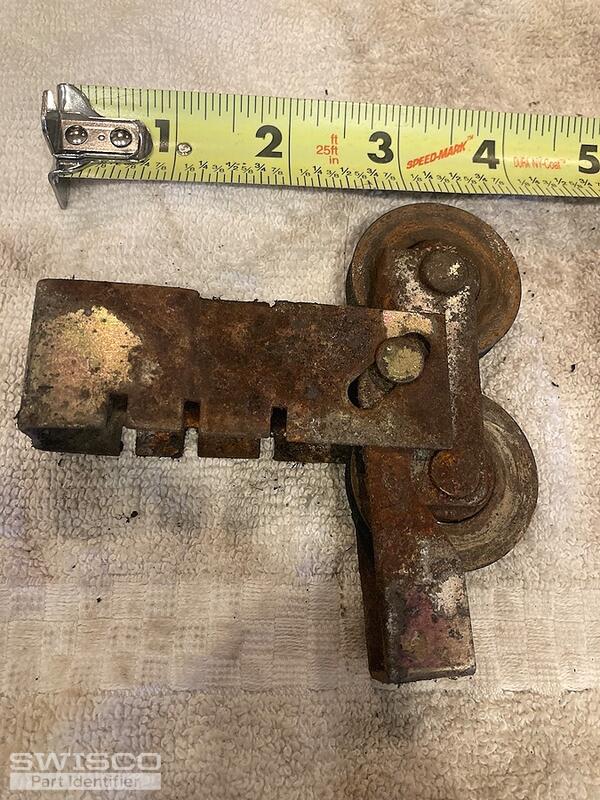

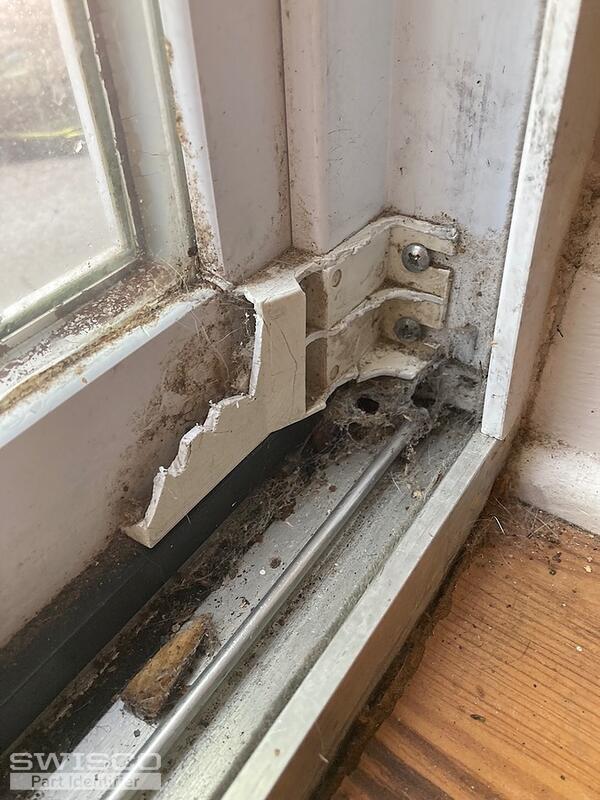

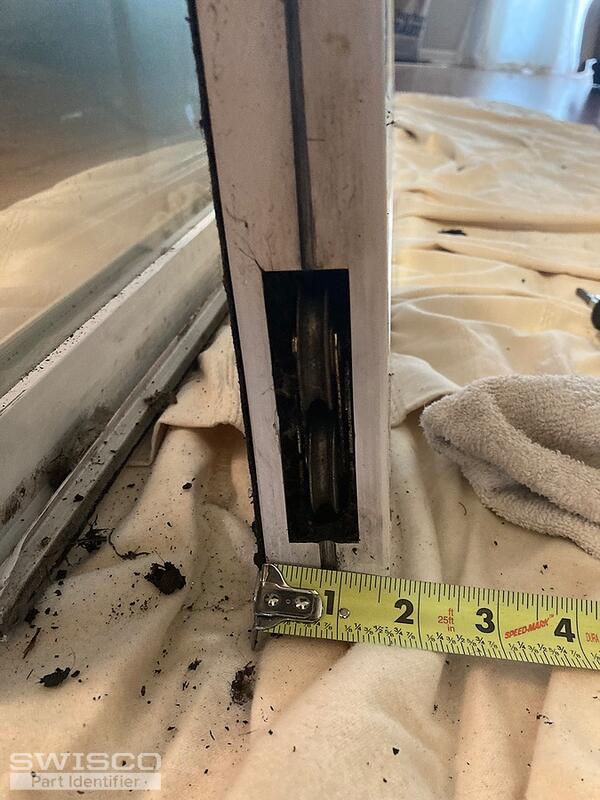

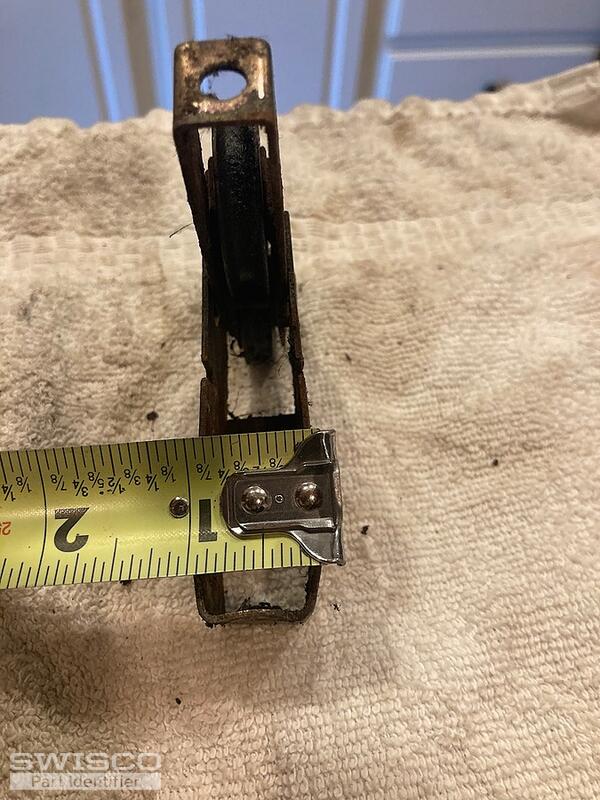

I have a sliding glass door in a home that was built in 2001 that has the Guardian glass stamp on the glass. I am hoping that you have the parts that are needed to get the door rolling again. Above I have sent pictures of the parts I need. I will need two bottom rollers on each side of the door, the handle which at one time had a lock on it, and the plastic clips to secure the fix door to the wall.

5 user uploaded images

4 Replies

Emily from SWISCO

Sep 13, 2022 10:50 am

Hello!

Start by taking a look at our 81-030 and 81-095 rollers, along with the 80-051 clip. Look over the dimensions for these parts and see if they match what you need.

I'm afraid I can't get a good look at your handles from your last photo. Would it be possible for us to see a clear, unobscured view of them?

Home Owner from Charleston, SC

Sep 13, 2022 12:45 pm

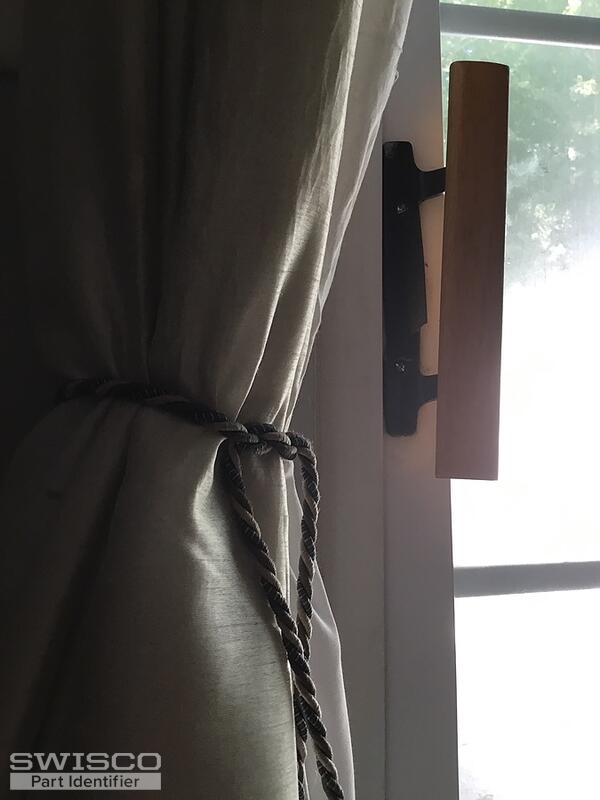

The clips, rollers and mortise lock look correct. I will be ordering these now. The original handle that had the mechanism to engage the mortise lock no longer exists that enabled the door to lock. I can send a picture of what is left of the handle on the door (which I sent that didn't photograph well), but I would like to be able to lock the door and not use the stick that we use now that keeps the door shut.

1 user uploaded image

Emily from SWISCO

Sep 13, 2022 1:00 pm

Thank you for the additional photo! Your handle set looks like it could be a good match for our 82-035 with 3-15/16" hole center spacing but look over the specifications and see if you agree. You could also consider our 82-030 which is a more modern style.
