Sliding glass door replacement handle

Question

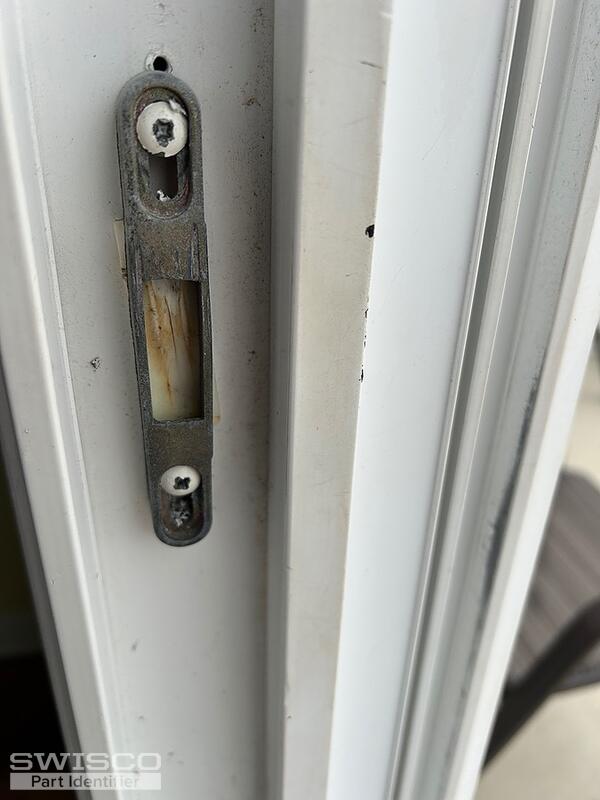

Hi! I'm trying to identify these parts so I can replace the broken locking mechanism. I couldn't find any name or numbers on the door.

Thanks for your help! Have a great day!

Steve

Casey · Accepted Answer

Hello,

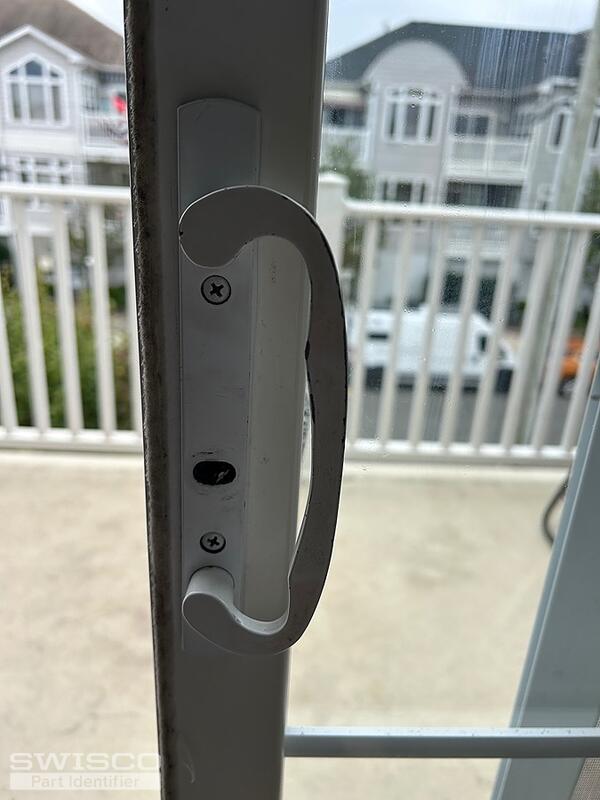

If the thumb latch is the only broken part, take a look at the 82-107 lever kit. We also offer the 82-086 handle set with 3-15/16" hole spacing.

Dimensions for 82-107

Dimensions for 82-086

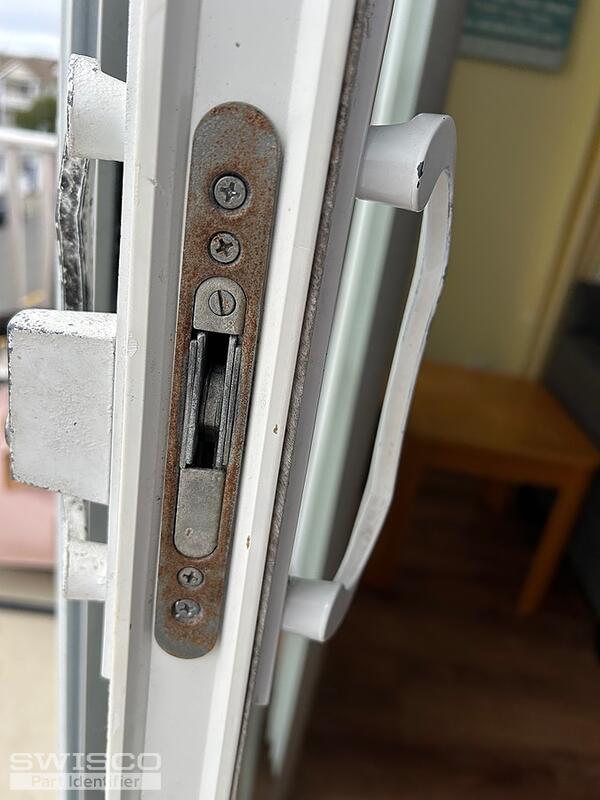

As for the mortise lock, see the 82-226, along with the keepers commonly used with this lock that we've related on this page. Thanks for posting!

Alternate image for 82-226
