Sliding glass door rollers
Quick Learner from Mason Michigan
May 23, 2020 8:54 pm

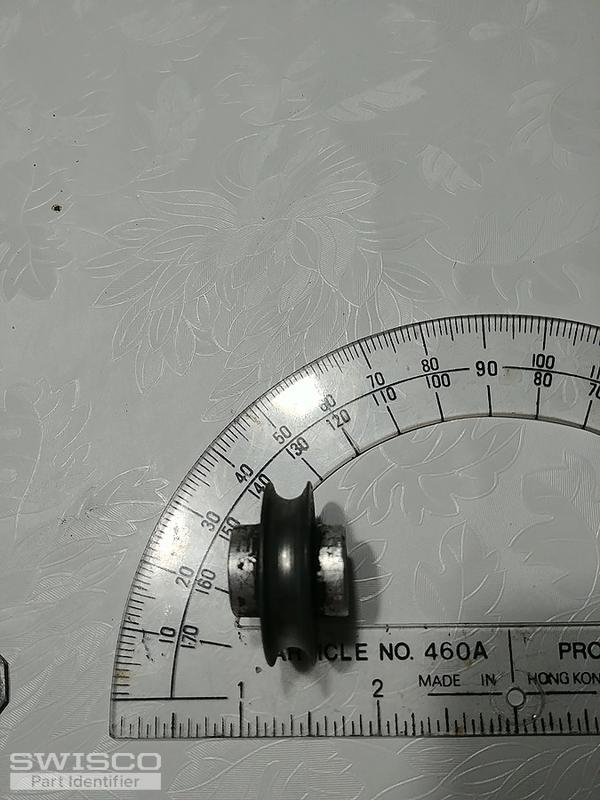

This sliding glass door is old. The only markings I can find on it is 0v62. That marking is between the double pane windows on the bottom . The diameter of the hole is 5/8. The diameter of the roller is 1 and 1/4 in. That diameter of the concave roller is 1/4 inch. The overall width of the roller and bushing is three quarters of an inch. I cannot find anything online with that large of a bushing. My axle appears to be in fine shape. Just looking for roller and bushing. Thank you
4 user uploaded images
3 Replies
Quick Learner from Mason Michigan
May 25, 2020 5:16 pm
The diameter of the hole is not 5/8, I'm not real good with math. The diameter of the axle is 1/4 inch in the hole for the axle is slightly larger. Look forward to hearing from an associate. Thank you
Tom from SWISCO
May 27, 2020 1:35 pm
Based on these photos and your measurements, I recommend our 81-230. This looks like a match for your old roller.
