Sliding glass door rollers

Home Owner from Georgia, USA
Hello! This door is 50 years old, and I wouldn't be surprised if these were the original rollers. Once we cleaned them up from erroneously applying WD-40 (using the proper dry rub now!), they work pretty well except the bearings on the front roller are shot.

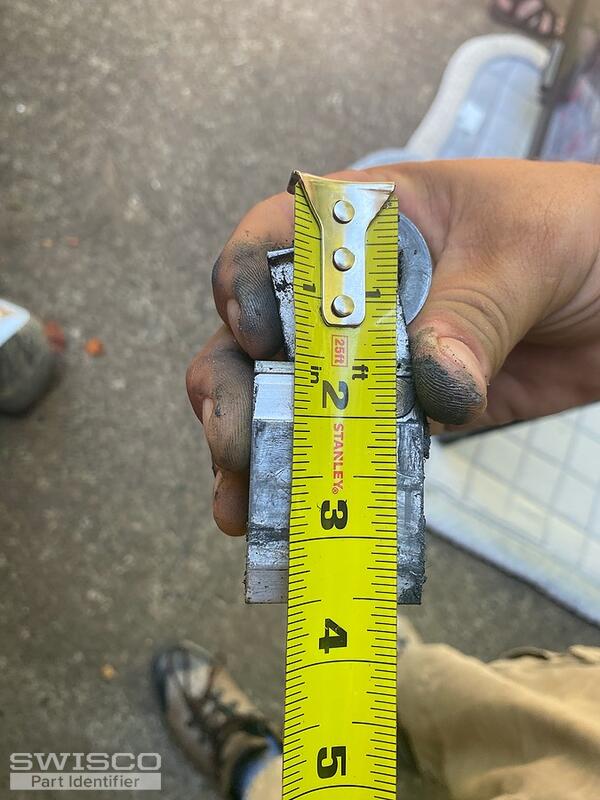

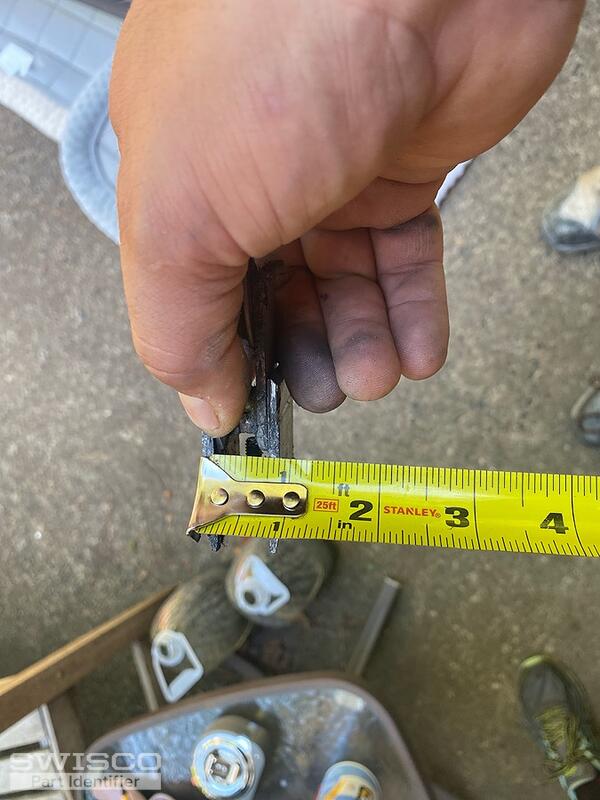

There are no markings. The steel wheel is 1 1/4" across. The larger portion of the outer housing is 1 1/2" x 2". The total length of the whole mechanism from wheel to end is 3 1/2". Please let me know if you need any further information.
Truly hoping you can either find this exact type or a proper replacement and/or fix.
Thank you so much!
Dawn
5 user uploaded images
4 Replies
Dave Sr.
Dave Sr. from SWISCO
SWISCO
Expert

Hi Dawn, thank you for posting,

I believe your roller was used on Peachtree patio glass doors. It is no longer available. Take a look at the 81-112 and compare the dimensions with your roller. We believe this roller is the replacement for the one in your photos. Also take a look at the other two rollers used on Peachtree doors to see if these might be a better fit. Lastly take a look at the 81-266 roller axle kit. This could be also used to repair you patio glass rollers if the housing is still in good shape. Review all and let us know if you have any questions!


Home Owner from Georgia, USA
The 81-112 rollers are now installed and the door functions beautifully. You literally saved me thousands of dollars that I thought I was going to have to spend on a new door and glass panels. Y'all are the best, and I am recommending your company to everyone. Thank you! Dawn
Dave Sr.
Dave Sr. from SWISCO
SWISCO
Expert

Hi Dawn!

This is great to hear! We appreciate your feedback and happy that we could assist with your repair. Please let us know if you have any future hardware questions!
