Sliding glass door rollers

Question

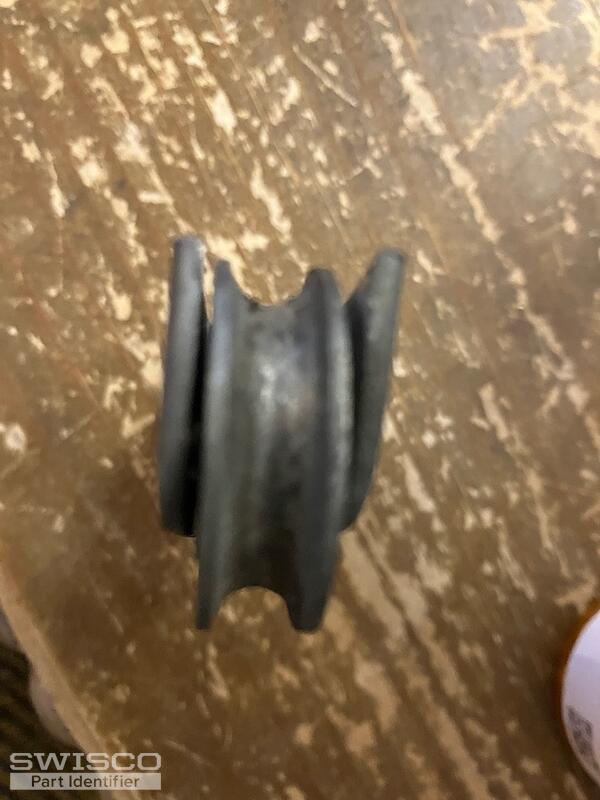

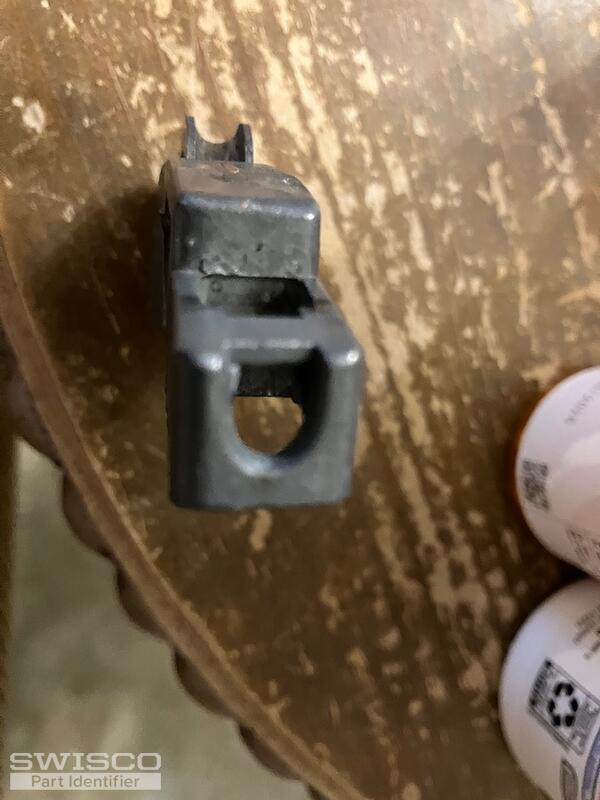

These rollers are off a set of fur wood sliding door from the 70's. They are in perfect shape except for the rollers. No marking or part numbers. Roller is exactly 3 inches in length. Width of 0.5 inches and roller diameter of 1 1/8 inches. Rollers insert into an aluminum rail

Paul · Accepted Answer

Hello,

Unfortunately, the manufacturer of your die-cast roller assembly is no longer in business. In this case, we suggest removing the sliding glass door from the track and, using a sawhorse, carefully lay the door flat. Remove the two bottom frame screws and carefully remove the bottom rail from the glass with a block of wood and hammer. Remove the other old roller from the frame and line up the new roller's top screw hole. See the diagram associated with the 81-023 roller below. Thanks for posting!

Alternate image for 81-023

Diagram on how to modify the bottom rail of the 81-023.
