Sliding glass door tandem wheel replacement

Question

Hello,

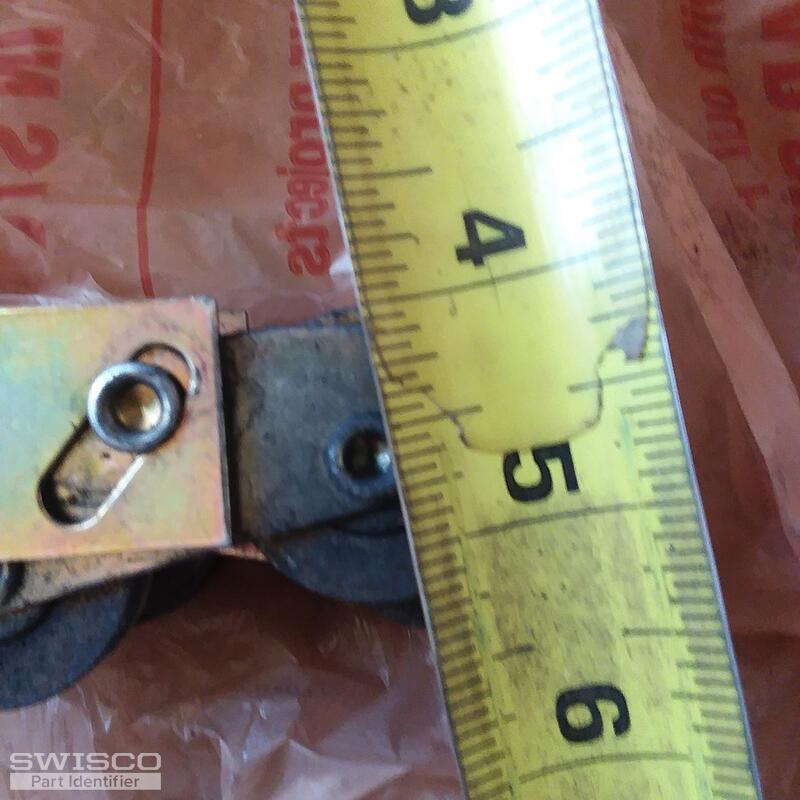

I'm looking for a part number for a Del Mar tandem wheel assembly. The following are the parameters for this vinyl sliding door:
3 1/8" long
3/4" wide
wheels 1 3/16" diameter steel. (I'm thinking they are closer to 1 1/4" but they are definitely larger than 1 1/8").
1" high.

Jasmine · Accepted Answer

Hey there,

Thanks for posting! Your Del Mar roller looks a lot like our 81-138, which does match your existing measurements. The only difference is that the wheel diameter on this roller is 1-1/8". Since there is only 1/8" of a difference in the size of the roller, you should be able to adjust the roller to accommodate for the difference in size.

Take a look at the dimensions below and see what you think.

Alternate image for 81-138
