Sliding glass door wheel

A quick learner from Stoughton Mass says:

September 16, 2018

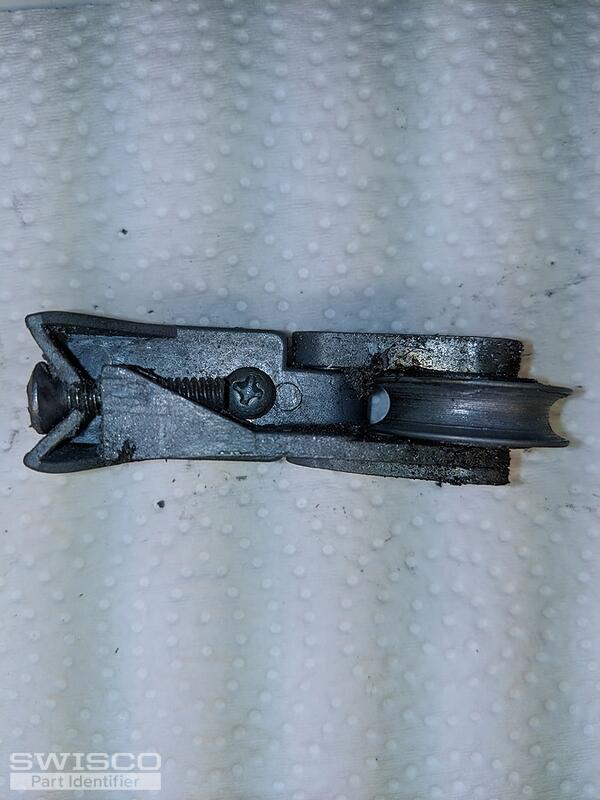

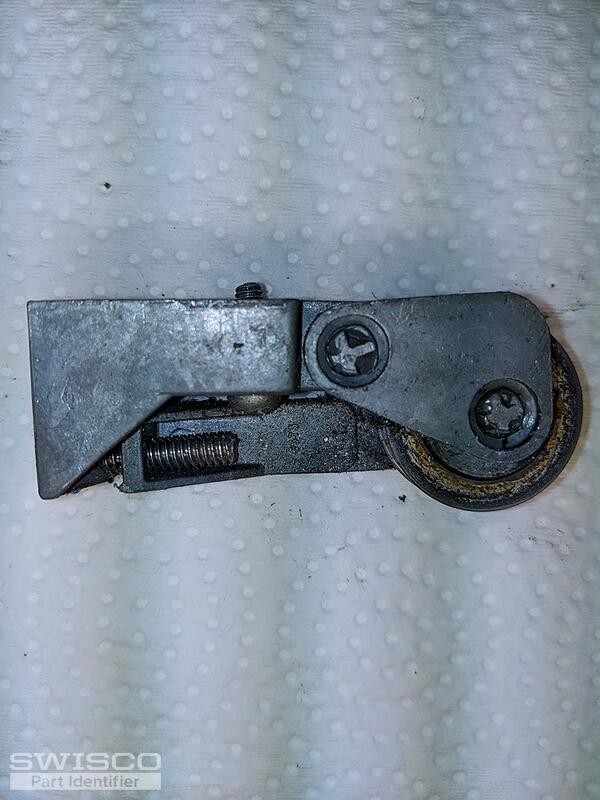

Looking to find something close to replace my sliding glass door wheels. Condo is 40 yrs old...so im assuming my door is that old. There are no identifying marks that I can find on frame or glass or wheels. Wheel assy is 3" long to end of wheel. 1" tall. Wheel is 1 1/16" diameter. Screw at top of assy is 1 1/8' from square end. Bottom of frame cutout is 3 1/2"

Tom from SWISCO responded:

September 21, 2018

Start by looking at our 81-262. This looks similar in design to your roller, and the dimensions look good, too. Let me know what you think.

A quick learner from Stoughton Mass says:

September 21, 2018

2 questions on your suggested replacement wheel. 1). Does 81-262 collapse to a rectangle when adjustable screw is turned? 2). I don't think the screw hole at the top will line up with my existing threaded hole. My screw hole location dimension from end of flat end is 1 1/8th " this one says 1 9/16

Dave Sr. from SWISCO responded:

September 25, 2018

I see what Tom is getting at, but I don't think our 81-262 will work. Believe it or not, your best bet is probably our our 81-023 (along with the 33-103 and 33-104 screws). It just takes a bit of work. You will need to remove the bottom rail off of your patio door to install this new type of roller. Take a look at the diagram below for some insight on how this installs. I won't lie to you, it's not the easiest project in the world. You may want the help of a local professional.

Diagram on how to modify the bottom rail of the 81-023.

Adjustable Roller Assembly, 1-1/4" Steel Concave BB

81-262

$14.87

Sliding Door Roller, 1-1/4"dia. Steel Concave BB

81-023

$10.20

Phillips 1/4-20 x 3/4" SS Machine Screw

33-104

$0.39

Phillips Flat 10-32 x 1/2" SS Machine Screw

33-103

$0.29
