Sliding mirror closet doors

Quick Learner from westerville, Oh
Jul 26, 2024 8:43 am
I need 96" inches of track identical to the track shown in the attached pics. The track needs to be compatible with the rollers shown in the pic.

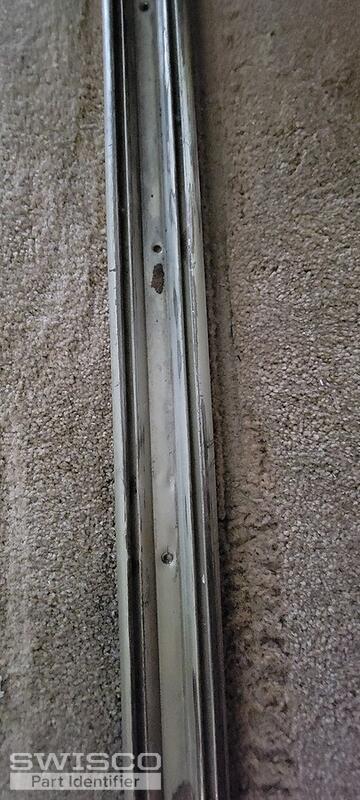

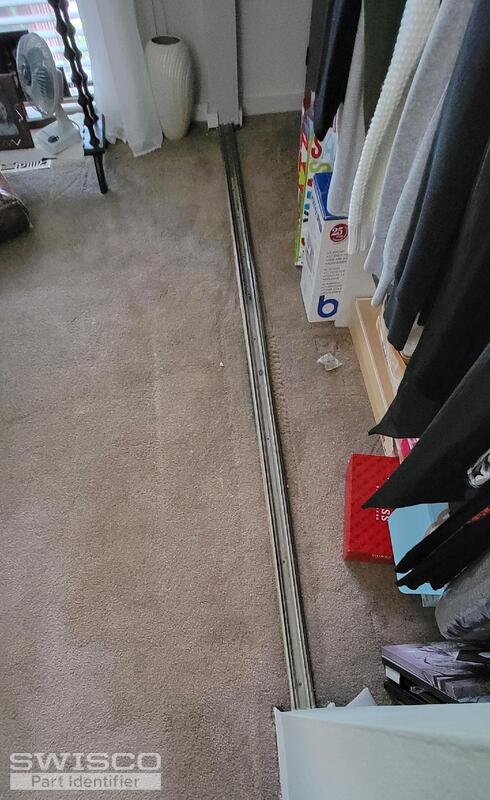

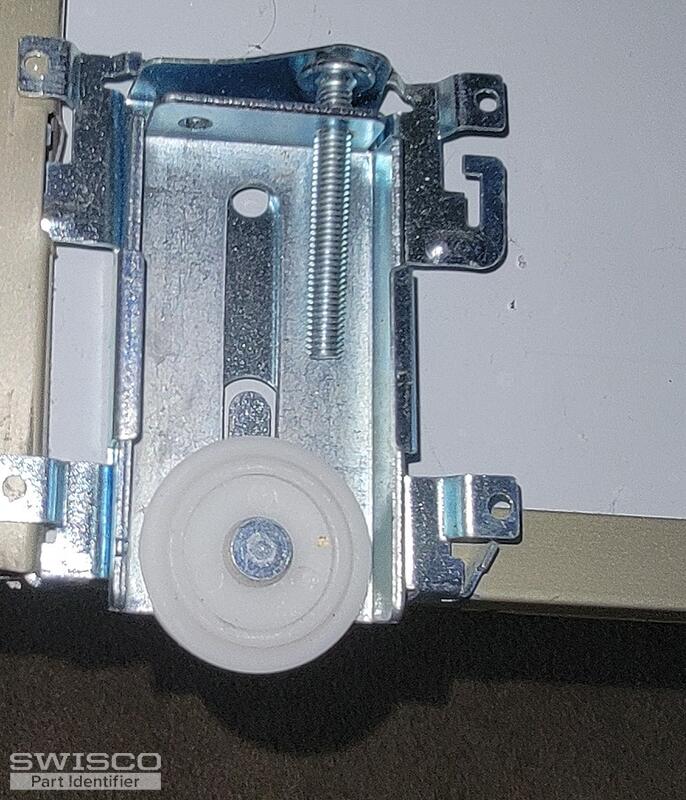

full 96 inch closeup wheel
3 user uploaded images
3 Replies
Bob
Bob from SWISCO
Jul 28, 2024 1:10 am
SWISCO
EXPERT

Thanks for posting. The roller looks like an older version of the 23-041, which has a convex wheel. Therefore, a track like our 23-272 should work. However, this track is only 72" long. What you can do however is use the 23-272, along with the 48" long 23-270. Adjoin these pieces together, then cut off the excess length with a hacksaw like our 75-023A. Let me know if you have further questions.

Quick Learner from westerville, Oh
Jul 28, 2024 7:31 am
Do you make a 72" inch and a 24" inch version of the recommended track? I would rather have the point where the tracks meet at a point where there could be less use of the track rather than in the center.
Bob
Bob from SWISCO
Jul 28, 2024 11:52 am
SWISCO
EXPERT

Unfortunately, we do not. Of course, you could just use (2) of the 23-271 47" long tracks. This would equal 94" and the adjoining point would be entirely in the center. There'd be a spare inch to either side but I do not think this is likely to affect the door's performance at all (the wheels shouldn't go that far in the track). Let me know what you think.
