Sliding padio door lock

Handy Person from Colorado, USA

Sep 26, 2022 11:12 am

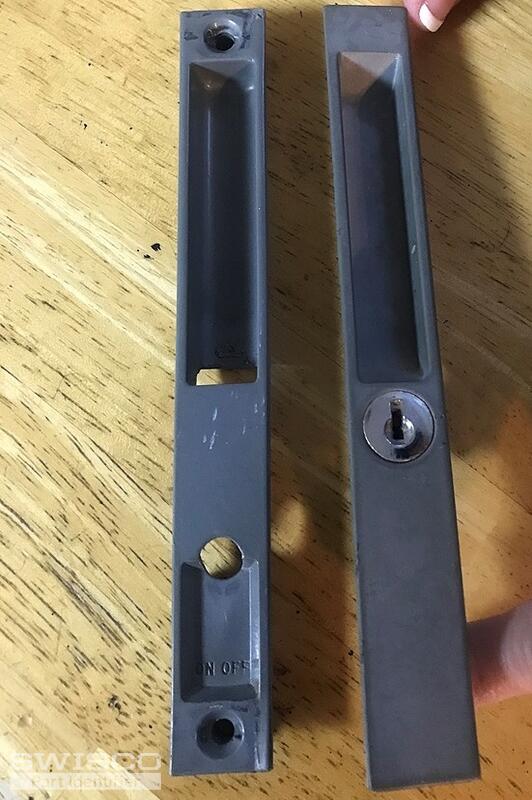

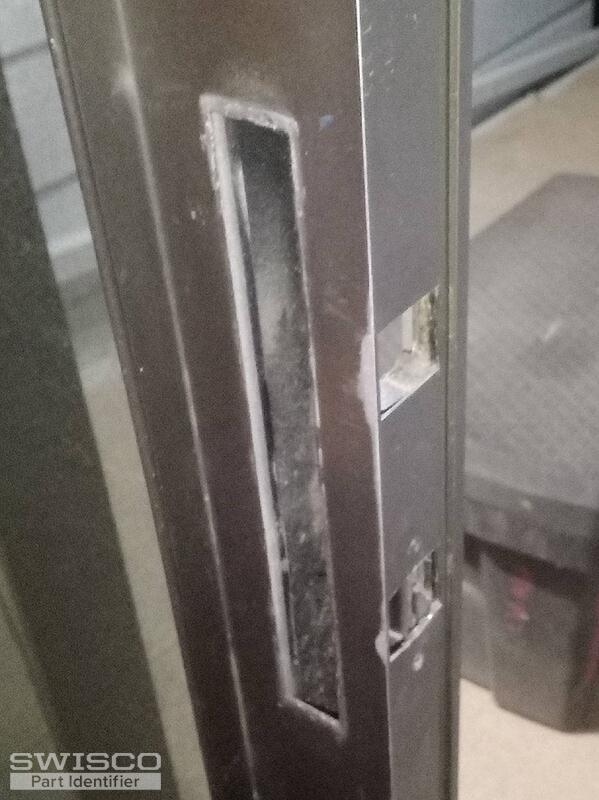

I have an older sliding glass padio door and the lock assy fell apart on. I found a close match but the problem is it will only work on doors up to 1-1/4 inch thick and this door is 1-1/2 inch thick. Do you have anything that will work for this door?

4 user uploaded images

9 Replies

Handy Person from Colorado, USA

Sep 26, 2022 11:17 am

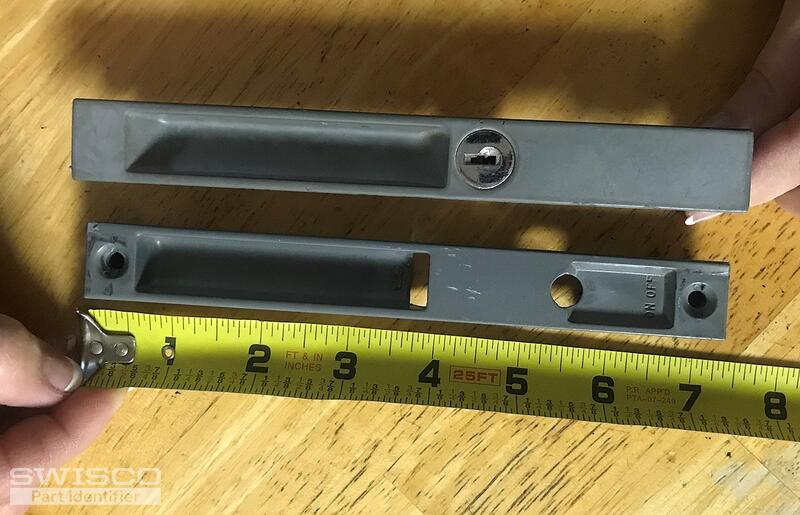

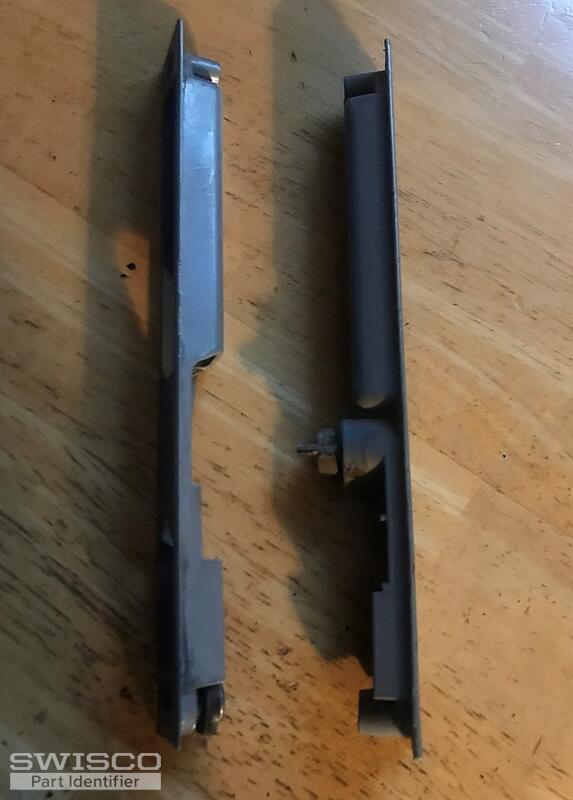

Here are some additional photos. Also the mounting holes are 6-5/8 inch spacing

3 user uploaded images

Casey from SWISCO

Sep 30, 2022 9:17 am

Hello,

We carry three handle sets that are similar to the assembly shown in your photos, which we've related for you to review. Unfortunately, we can't be sure if one of them might work since the locking hook is missing from your handle set. The orientation and placement of the locking hook is an important detail when choosing a replacement for this kind of handle, as well as the distance between the installation holes.

Also, please note that you would most likely need to reuse your original installation screws since this type of handle is not normally used for doors as thick as yours. Take a look and see what you think.

Handy Person from Colorado, USA

Oct 1, 2022 4:14 pm

So the 82-002 is the correct one but it is on a 1-1/2 inch door with a lock cylinder

Casey from SWISCO

Oct 3, 2022 8:21 am

We also offer the 82-002K keyed version of this handle set. As we mentioned, they come with installation screws to accommodate up to 1-1/8" thick doors, so you would need to reuse your original installation screws. Thank you.

Handy Person from Colorado, USA

Oct 4, 2022 9:05 pm

As I stated before I need this for a 1-1/2 thick door. NOT a 1 to 1-1/8"
Please help me locate one that will fit a 1-1/2" door please.

Casey from SWISCO

Oct 5, 2022 8:18 am

As stated in our previous recommendations, you would need to reuse your original installation screws since we do not carry a version of this handle set for 1-1/2" thick doors. I'm sorry that we can't provide a replacement handle set with screws to accommodate your door thickness but these would be our best replacement options at this time.

Handy Person from Colorado, USA

Oct 6, 2022 1:54 pm

So the problem is not the screws, as I already have this door lock Assyria. The problem is the lock cylinder does not make contact with the internal works to make this an operational system and that was why I was reaching outto you folks to see if you had something that souls work for the added door thickness to make the locking potion work?

Casey from SWISCO

Oct 6, 2022 2:03 pm

Thank you for clarifying the problem for us. Unfortunately, we do not carry a key lock with a longer spindle to accommodate your door thickness. We apologize for the inconvenience.
