Sliding patio door from the 70's hook latch assy.

Start a new Discussion

Home Owner

Jan 18, 2025 12:24 pm

Need this part as it is worn out and hard to latch

1 user uploaded image

8 Replies

Casey from SWISCO

Jan 22, 2025 1:08 pm

Hello,

We'd be happy to look into this for you but I don't recognize your mortise lock at first glance. I'm also not sure how it's installed since there are no visible installation screws. If you could show us you lock assembly fully removed from the door, along with straight-on photos of both handles, that may help us confirm if a replacement is available. Thank you!

Home Owner from Iowa

Feb 23, 2025 3:20 pm

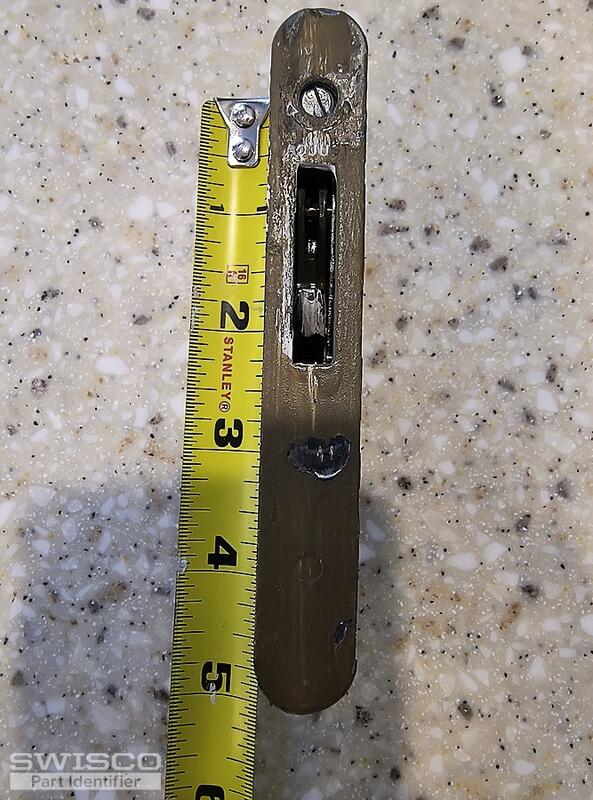

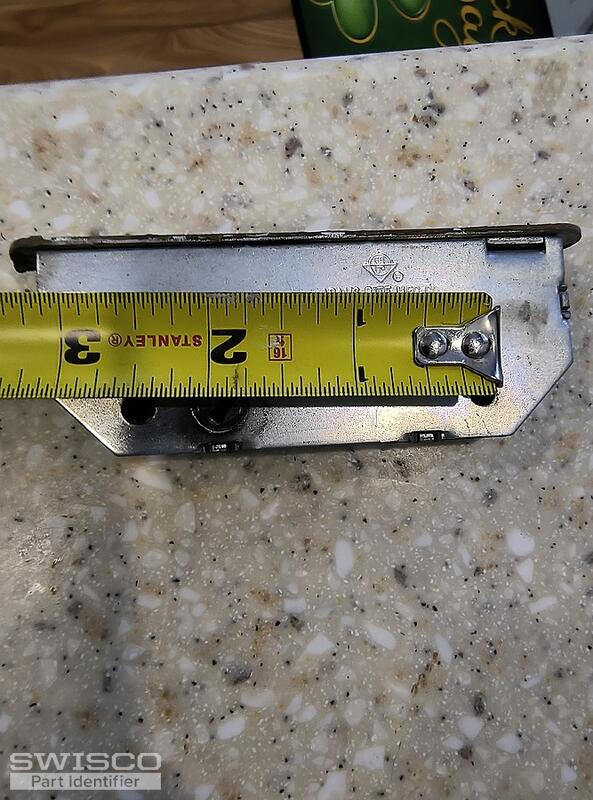

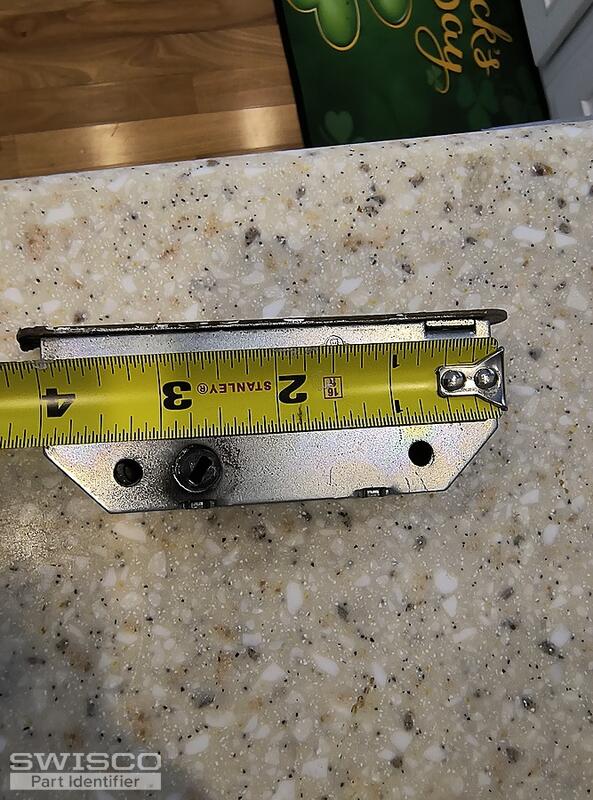

Attached are more pictures with the lock assembly removed.

5 user uploaded images

Dave Sr. from SWISCO

Feb 24, 2025 9:53 am

Thanks for getting back to us. Your mortise lock resembles the 82-263 but note that the keyway is in a 90-degree position when the hook is engaged as shown in the image below. Review the specifications to confirm if this would work for your repair. Thanks for posting!

Alternate image for 82-263

Home Owner from Iowa

Feb 24, 2025 4:30 pm

I see what you're saying. I believe the one you have listed should work. I'll go ahead and order it
Thank you for your time.
Dave

Dave Sr. from SWISCO

Feb 25, 2025 8:49 am

Great! Just let us know if you need anything else.

Home Owner from IL

Sep 7, 2025 1:43 pm

I have the identical mortise on my door from 1974. My latch handle locks toward the door jamb and not the glass panel as indicated by Andersen. Does 82-037 lock towards the glass or towards the jamb? Or do I need a new latch handle?

Tom from SWISCO

Sep 15, 2025 10:13 am

It's possible you have an older door. As long as the keeper is the same, though, I don't see any difference between locking to the frame and locking to the opposite panel. The function is still identical.
