Sliding patio door hardware

Start a new Discussion

Home Owner from Boylston,Ma

Jul 25, 2018 1:18 pm

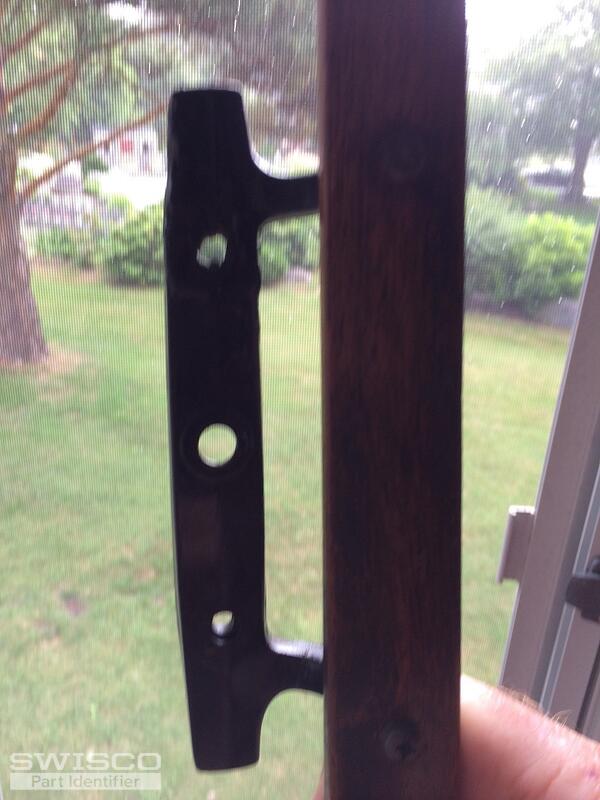

7 3/16 long

First hole from top is 1 9/16 to center of hole

Center hole is 3 5/8 to center of hole going from top

Third hole is 5 9/16 to center of hole going from the top

Thickness of door is 1 1/16

made by sash controls inc.

1 user uploaded image

4 Replies

Tom from SWISCO

Jul 31, 2018 2:27 pm

Hello,

Take a look at our 82-035 handle set. Compare you dimensions to the ones on our product page and us know if you have any other questions. Thank you!

Home Owner from West Boylston,Ma

Jul 31, 2018 10:43 pm

I just looked at the video for the 82-035. my handle does not have a key lock. Also there is a place on the back for a long piece of spring type metal that allows you to lock the slider from the inside only.
Please advise.

Tom from SWISCO

Aug 1, 2018 10:31 am

The video you watched is a video about how to install a key lock on the keyless 82-035; it's not a video on the 82-035 itself. You don't have to install the key lock, which is sold separately. The 82-035 is opened from the inside by a thumb lever.
