Sliding patio door replacement parts

Question

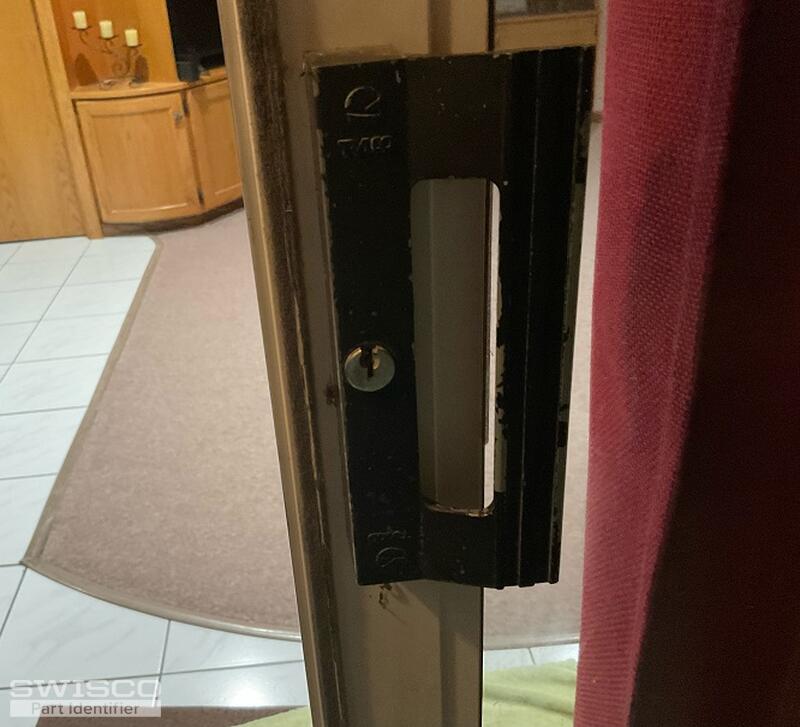

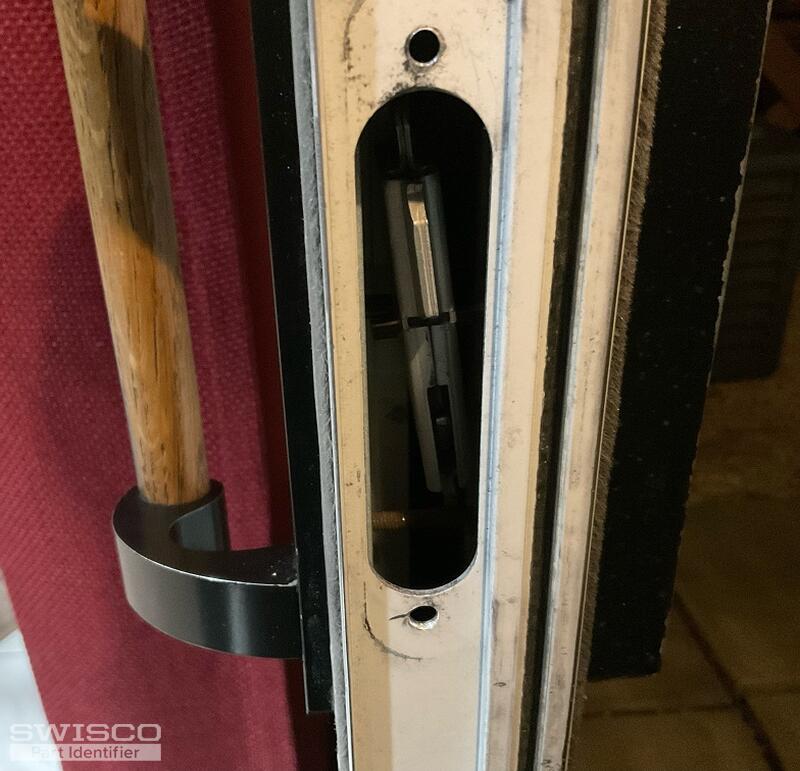

I'm in need of compatible replacement parts for an old sliding glass patio door. Please see attached pictures.
I need new handles (indoor and outdoor), the lock, and the keeper. As you can see in the pictures, the housing for the lock appears to be in good condition. There is a patent number on the lock itself, 3.596.954.
Another person online indicated that particular patent number is associated with Swisco part 82-225.
The distance between the two screws on the indoor handle is approximately 3-7/8 inches.
The distance between the two holes on the housing bracket for the lock also appears to be approximately 3-7/8 inches.
Also, the two holes in the patio door that hold the screws for the housing bracket of the lock are stripped. Do you have any suggestions on how to repair those holes or solve that issue?

Jasmine · Accepted Answer

Hey there,

Thanks for writing in! Your patio door is a Traco brand patio door which uses the 82-214B Mortise Lock and Keeper. In regard to the stripped holes in the door, our senior experts would suggest to try using a larger diameter screw or purchase some type of "molly bolt" from a hardware store in your area.

Dimensions for the 82-214B lock and its keeper

We do not carry an exact replacement match for the handle set but our 82-030A should work as a suitable replacement. This handle set comes with a keyed lock and a set of compatible keys. If you would like to stick with the wood handle, our 82-020 should as work well, although, you'll need to purchase the 82-306 Keyed Exterior Sliding Pull. Both handle sets have an installation hole spacing of 3-15/16", center to center.

Dimensions for 82-030A
