Sliding patio door roller

Quick Learner from White Mills, KY

Oct 25, 2014 4:20 pm

1" nylon roller in nylon holder bracket. part failed after about 6 weeks. Part now tracks sideways or tilted due to too flexible bracket holding wheel. Have tried manufacture and they have no contact number for part or warranty replacement. Is there a replacement or another part that has metal bracket with amybe a metal roller to maintain vertical tracking of roller?

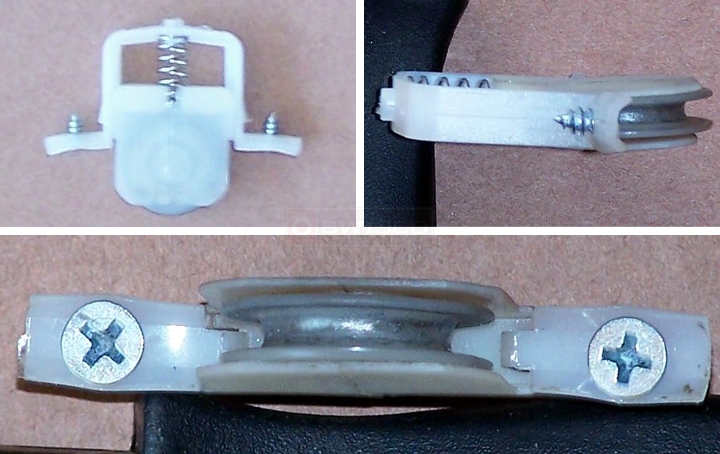

User submitted photos of a patio door roller.

7 Replies

Tom from SWISCO

Oct 28, 2014 12:34 pm

This looks very similar to our 84-064. Check it out and let me know if you agree.

Professional from California

Oct 28, 2014 2:57 pm

You may have to squeeze the frame so that it is tighter to hold the roller together.

Quick Learner from White Mills

Oct 28, 2014 5:20 pm

Looks almost identical but is there a better identical/similar part made out of metal for the bracket and the wheel?

Dave Sr. from SWISCO

Oct 29, 2014 10:19 am

Well, we also carry the 84-046 roller. Could that work?

Quick Learner

Dec 27, 2014 1:52 pm

im looking for something exactly like this part but the top of this assembly (5/8) is to wide to fit in existing hole , i need 1/4 wide by 1 1/4. thanks for your help

Paul from SWISCO

Dec 29, 2014 9:32 am

The narrowest width we have is 5/16" for both the 84-064 and 84-083. Could you get either of these to work?
