Sliding patio door roller assembly : SWISCO.com

Quick Learner from New ulm, texas

Feb 12, 2023 9:03 pm

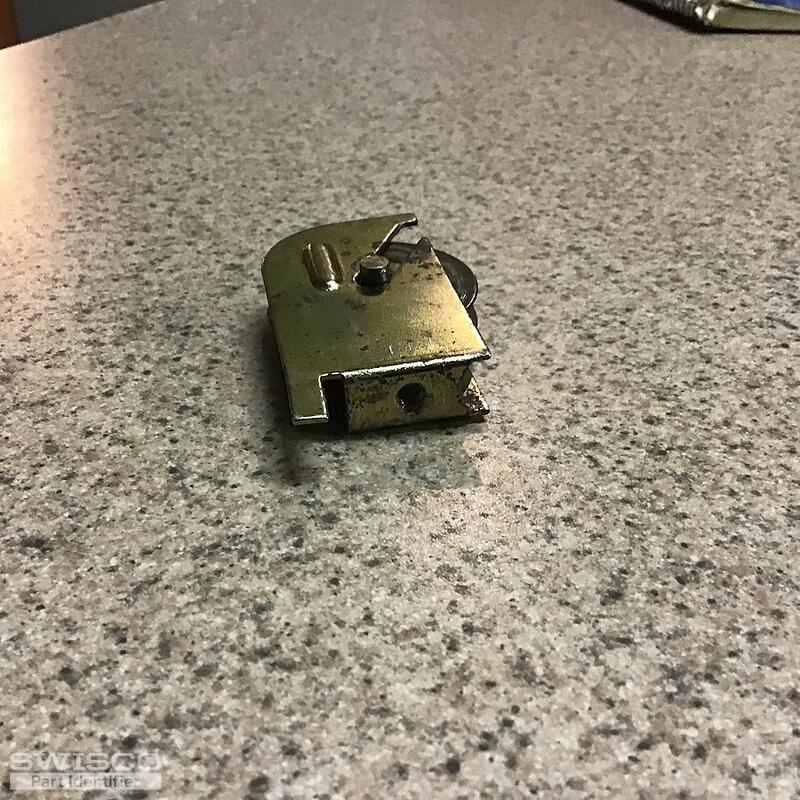

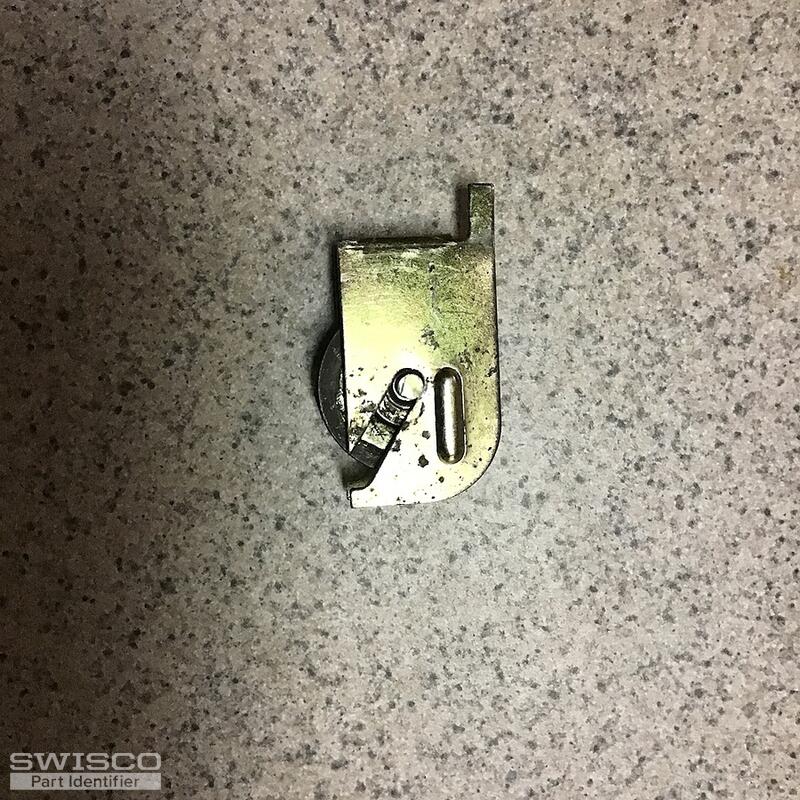

Could not find anything matching in your parts pictures. Do you have anything that could be made to work .
There are no names or numbers on the roller assembly or the door.
The wheel is 1 1/2" metal.
The assembly is 2 1/4" long without the tab, 1 5/8" tall and 5/16" thick

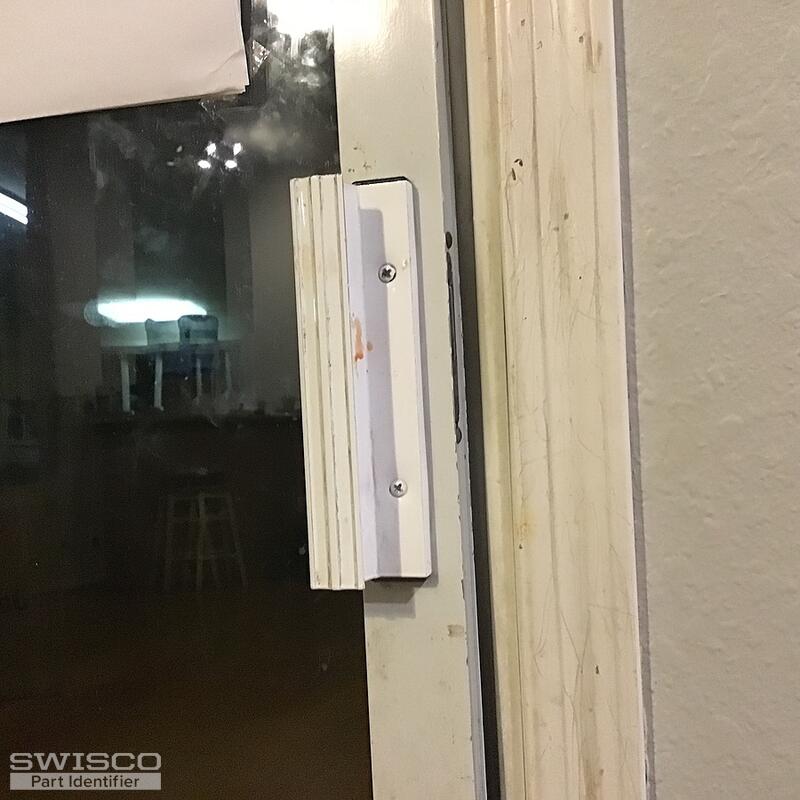

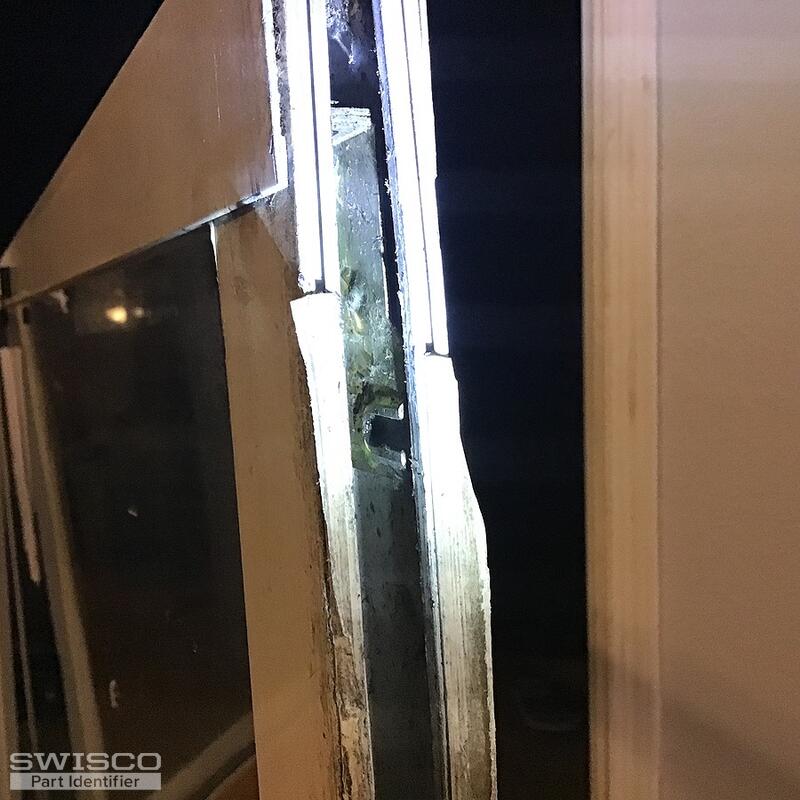

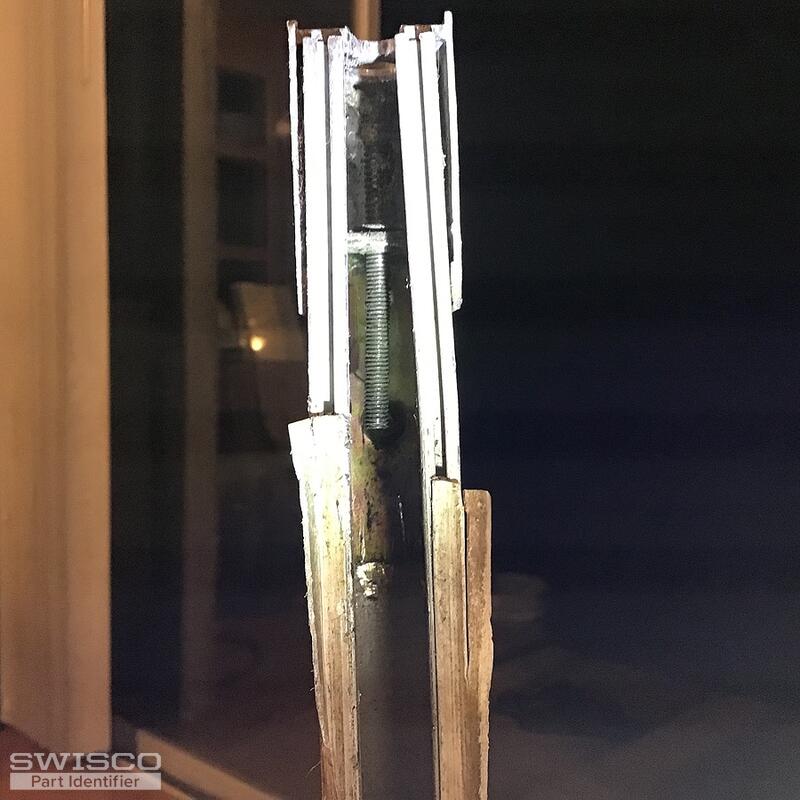

5 user uploaded images

4 Replies

Casey from SWISCO

Feb 14, 2023 10:53 am

Hello,

We'd be happy to help but we would need to see the outer housing of your roller removed from the door, which is shown in your third and fourth photos, to compare to our inventory. Thank you!

Quick Learner from New ulm, texas

Feb 14, 2023 2:15 pm

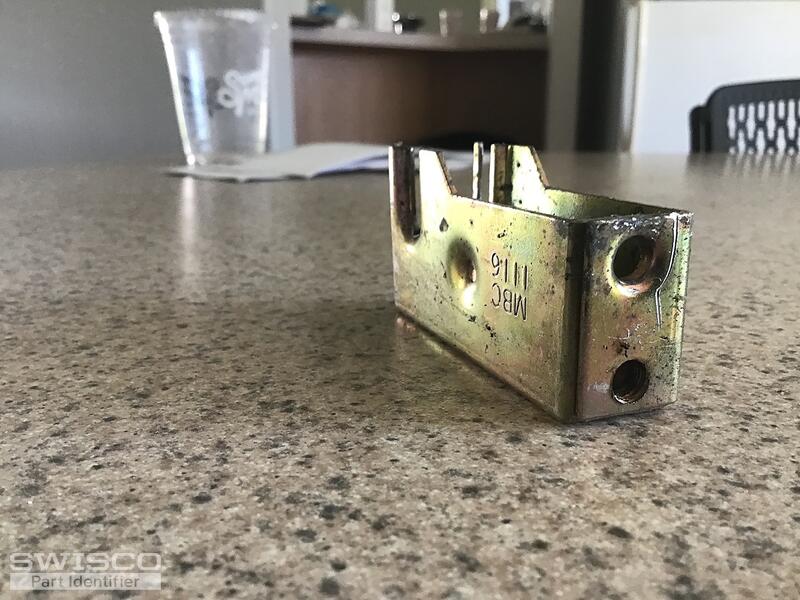

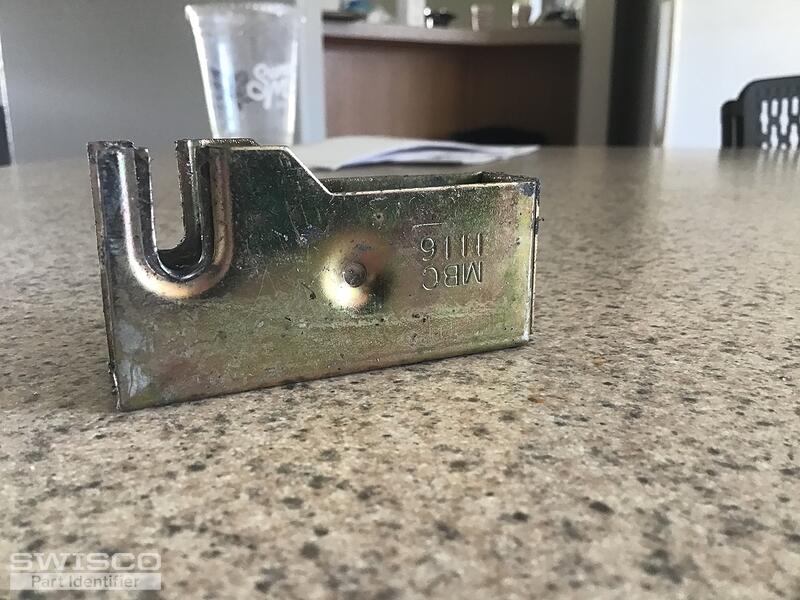

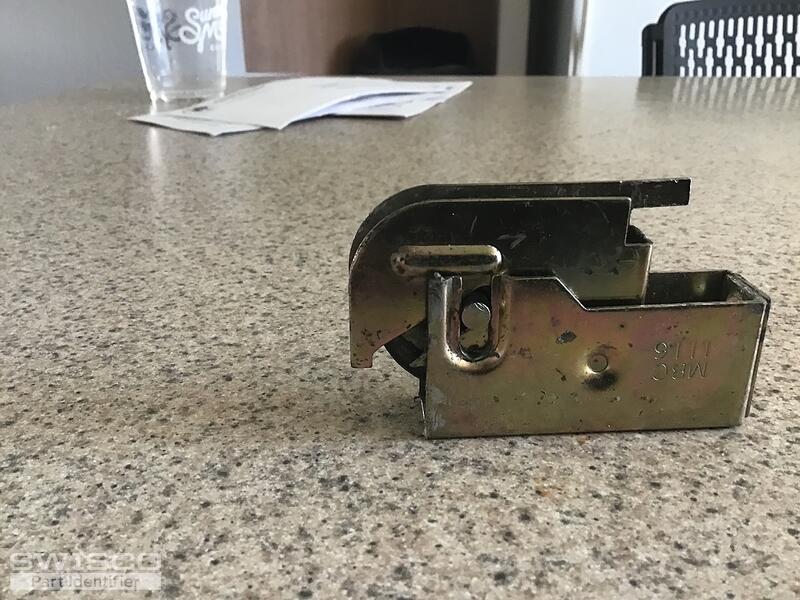

Here is the outer casing. I see the model #. MBC 1116.

3 user uploaded images

Casey from SWISCO

Feb 15, 2023 8:55 am

Thanks for getting back to us. I would recommend starting by comparing the dimensions of our 81-282 and 81-004 to your outer housing. If you notice any discrepancies, please write out your exact measurements and we can go from there.

Dimensions for 81-282

Dimensions for 81-004
