Sliding window, channel balance

Question

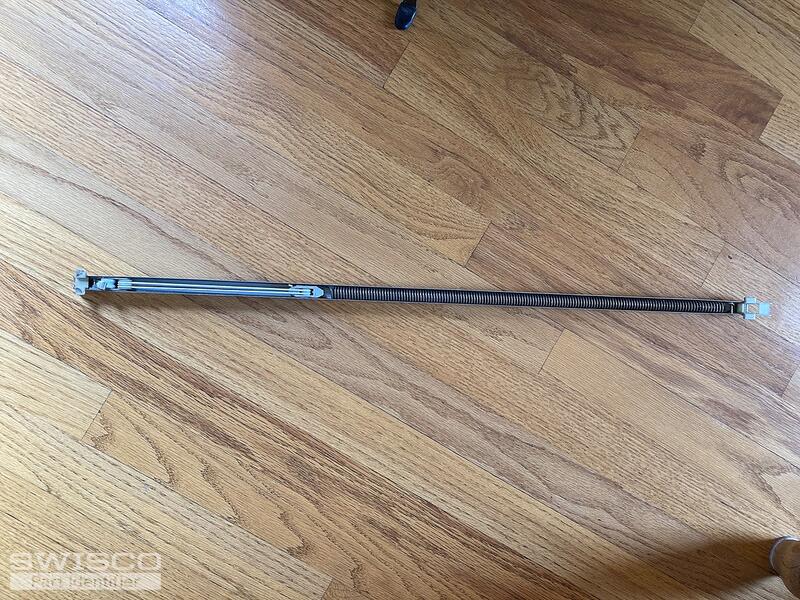

Sliding window, channel balance, 27".

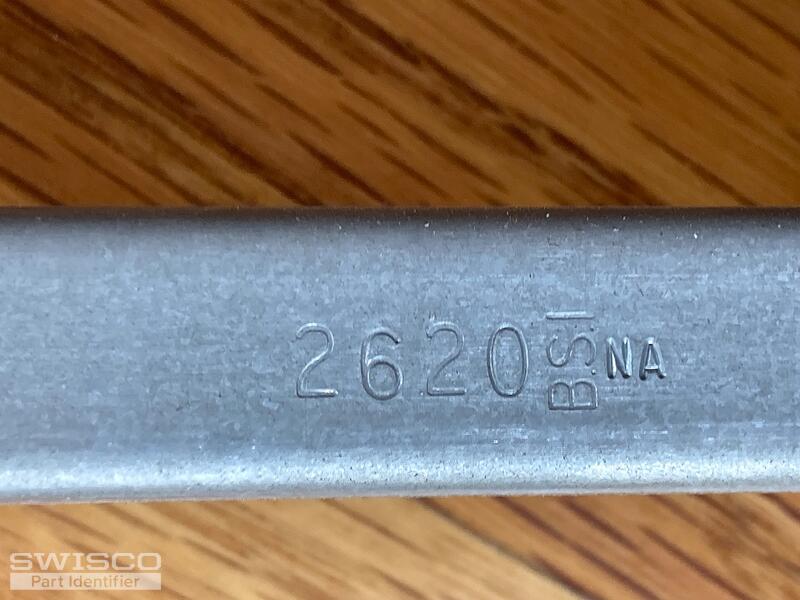

Markings on side: 2620, BSI NA

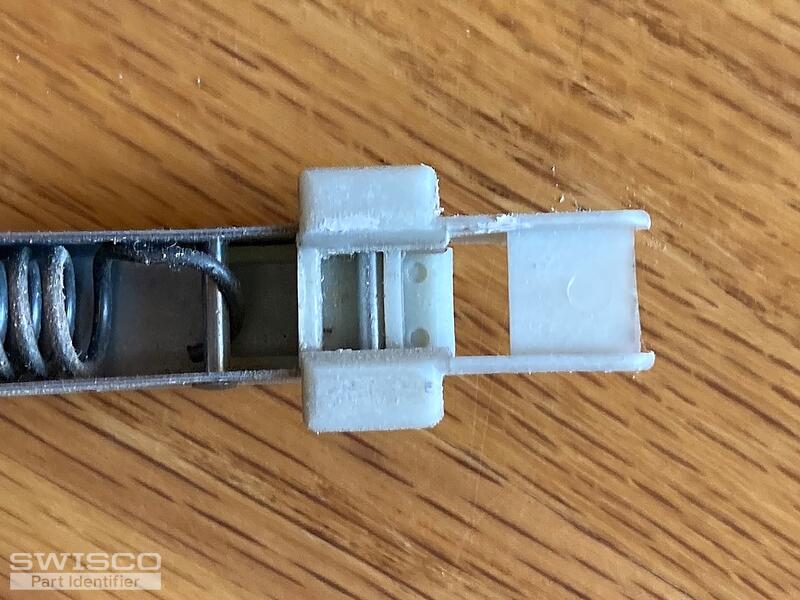

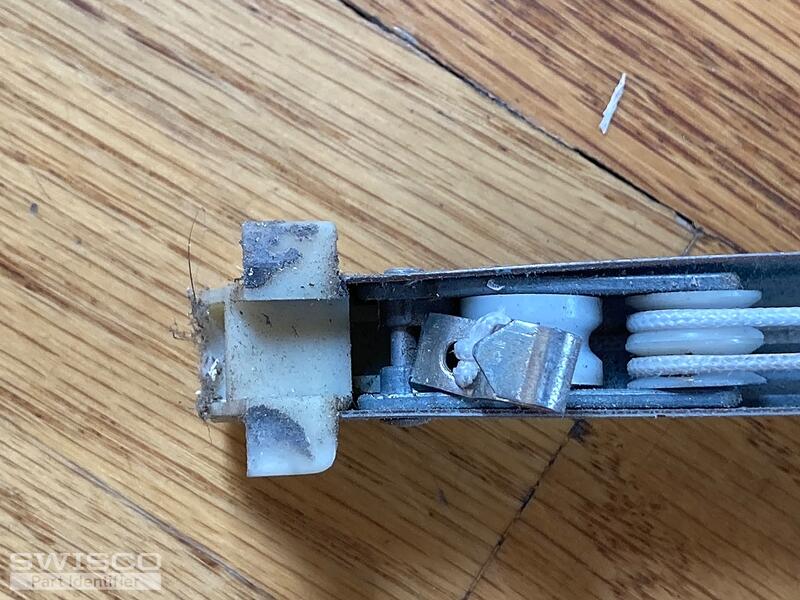

Plastic guide with wings
Depth of channel 5/8"
With of channel. 9/16"

Emily · Accepted Answer

Hello!

Based on what I see here, you could have either our S380-27 or S385-27 balances. These two parts look identical at first glance but each one has a different shoe depth. With that said, you'll need to measure as shown in the image below to determine the best match. Our Series 380 comes attached with a 1" deep shoe, while the Series 385 comes attached with a 1-3/32" shoe. You will also need to select the 2620 spring strength option.

Comparison of the S378, S380 and S385 balance shoes.
