Sliding window hardware

Question

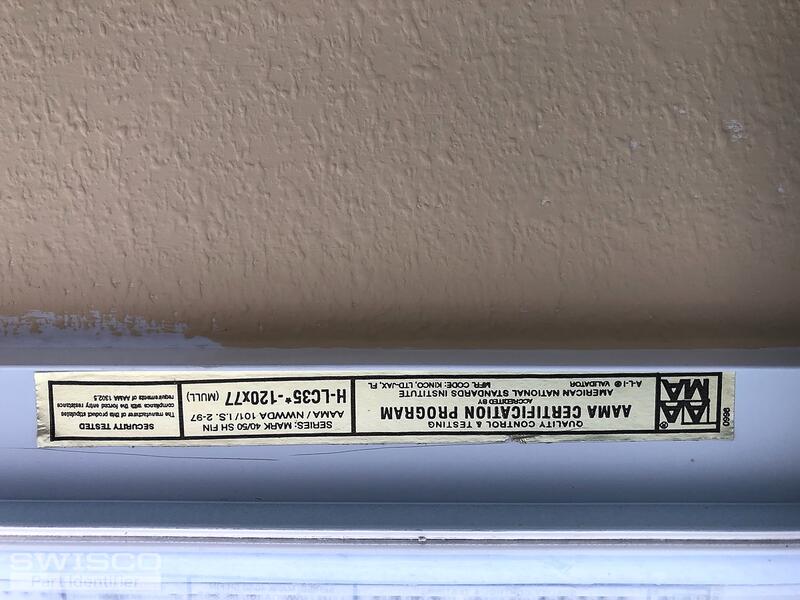

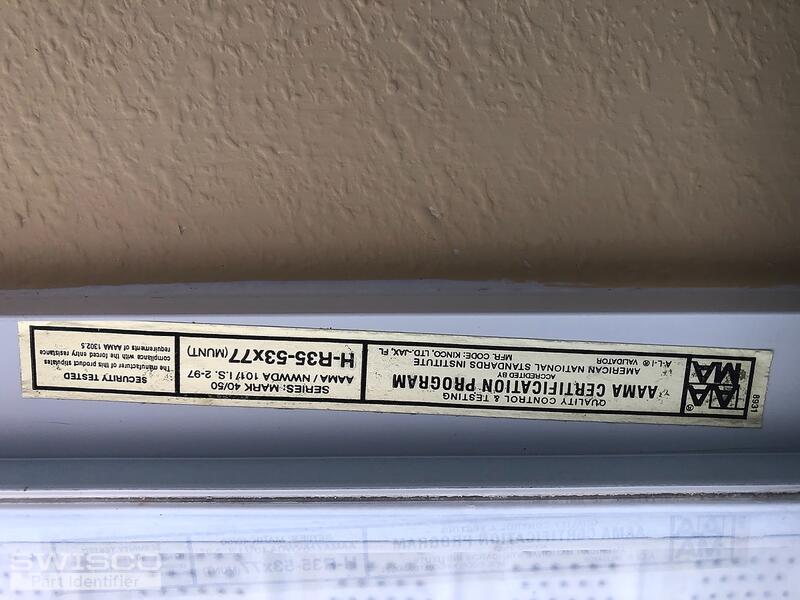

Several windows of different size have rusted out on the bottoms. Included are photos one of the windows hardware.

Emily · Accepted Answer

Hello!

With this combination of attachments, you could have either an S380-30 or S385-30 channel balance. You’ll need to measure as shown below. The Series 380 has a 1" bottom attachment, and the Series 385 has a 1-3/32" attachment. You'll also need to select the 2920 stamp option.

If you have any questions just let us know!

Comparison of the S380 and S385 balance shoes.
