Hello,

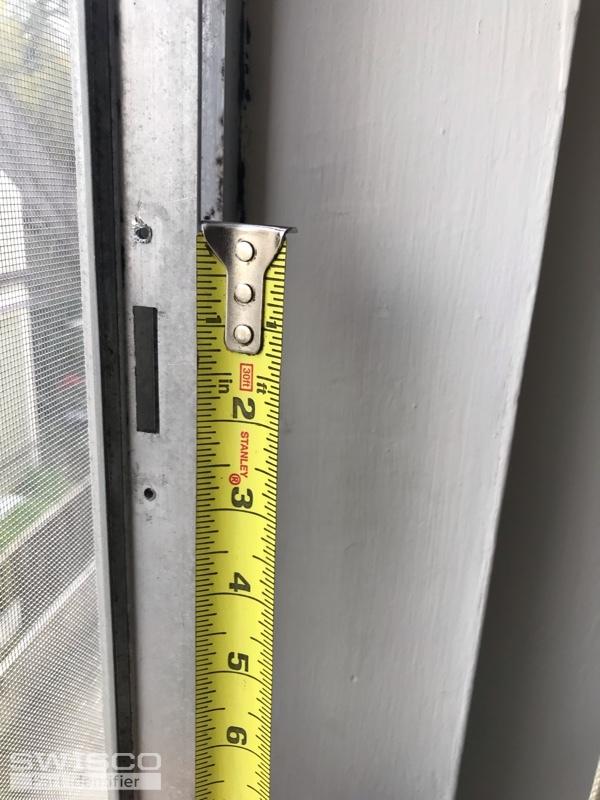

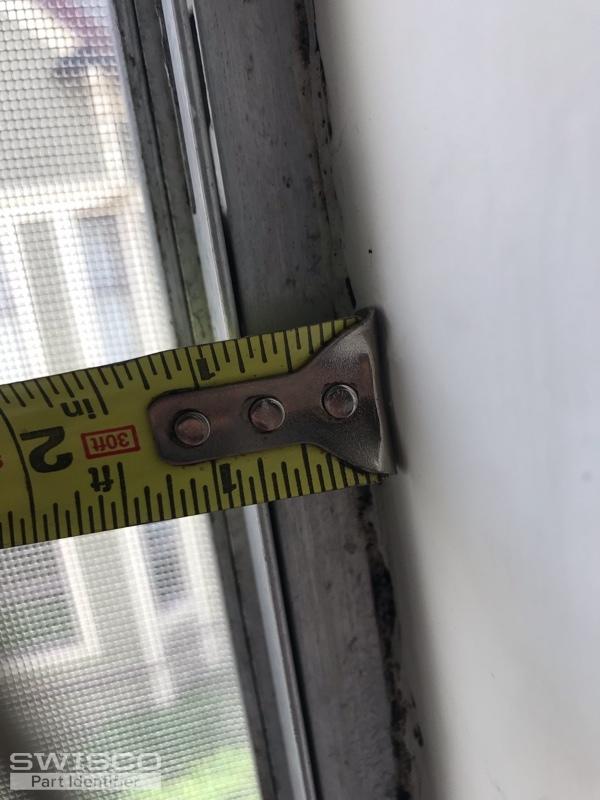

Our customer is missing a latch on the sliding window; this locks the window in the closed position. Pictures attached are from a neighboring window in the same house, which has operable latches.
I found this part on your site, perhaps you can confirm or present other options for replacing this latch.
WINDOW HAND LATCH, 2-1/4" HCS
Product Code: 90-083
Please help us!
Thanks
JC
Sliding window latch
Contractor from San Francisco
Mar 22, 2019 1:10 pm
5 user uploaded images
2 Replies
Dave Sr. from SWISCO
Mar 28, 2019 1:33 pm
Thank you for your patience while we looked into this. Our 90-082 and 90-083 latches are not exactly like the ones you show in your photos, but they might be the closest option we have. The mounting hole centers are at 2-1/4". You will need a cut out in the frame of 1-1/2" long to the locking tab. Take a look and see if you can adapt this to your window.
