Sliding window latch

Home Owner from Celina, TX
Need to replace two bone colored fittings

Vinyl

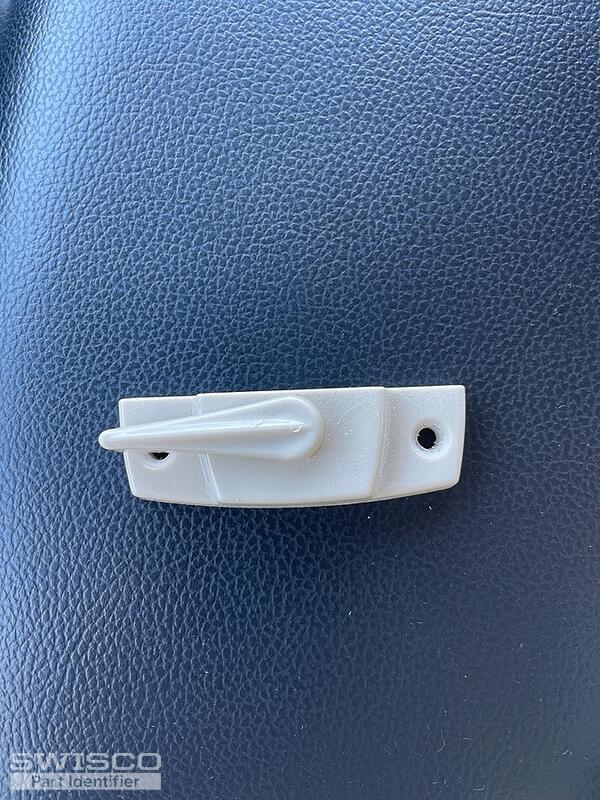

1 user uploaded image
4 Replies
Emily
Emily from SWISCO
SWISCO
Expert

Hello there!

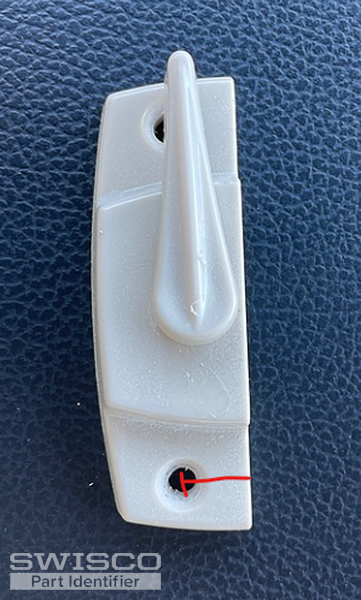

Thank you for reaching out to us. We're happy to look into this. Can you write out the distance between the two installation holes, measured from center to center? Can you also write out the backset? You can use the image below as a reference.

bs
Home Owner from Celina, TX
Distance between two installation holes is 2.25"

Backset is 7/16"
Emily
Emily from SWISCO
SWISCO
Expert

Thank you for confirming that for us. The closest options in our inventory appear to be the 90-180 and 90-274 where the installation holes measure 2-1/4" on center. However, neither have a 7/16" backset. The 90-180 has a 3/8" backset and the 90-274 has a 11/16" backset. We can't promise they will work for you but take a look at the specifications and see what you think.

Dimensions for 90-274
Dimensions for 90-274

Dimensions for 90-180
Dimensions for 90-180
