Sliding window sash balance 3230

Handy Person from California

Oct 28, 2020 12:49 pm

Have a set of Viking single hung vinyl windows that require all the sliding window sash balance 3239 replace.

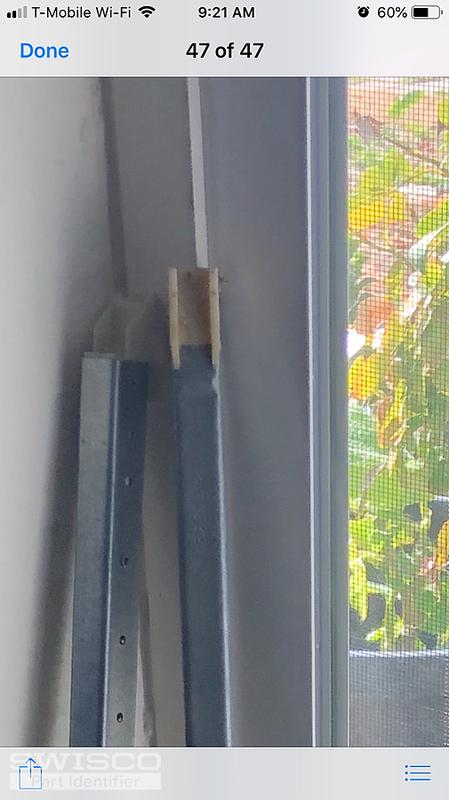

1. Sliding window sash balance 3230 with all the hardware as shown with bottom guide, top guide and terminal clip
2. Nylon sash cam on the window

4 user uploaded images

6 Replies

Tom from SWISCO

Nov 2, 2020 11:15 am

Thanks for posting. Your top sash guide looks like a match for our 18-008. Look it over and let me know if you had any questions about this particular product.

As for the balances, you have either our S351-33 or S390-33. The only difference between them is the size of the bottom fitting, which is indicated on their respective store pages. You'll need to measure your bottom fitting to confirm which one is the better match.

Comparison of the S351 and S390 balance shoes.

Handy Person from California

Nov 2, 2020 2:26 pm

Hi customer service,
I do not have access to the balances?based on your experience which balance will you recommend and work with 18-008.
Thanks.

Tom from SWISCO

Nov 2, 2020 2:56 pm

Both balances I mentioned work with the 18-008 top sash guide. I'm afraid you won't be able to determine which one you need until you get your hands on the original. Measuring that shoe is the only way you can confirm. There's no way around that, unfortunately.

Handy Person from Colorado

Mar 23, 2021 10:26 pm

According to the picture above, I need the S390-33 balance.
I need two of them . Please send price and the order form. Thank You. Jim Edwards .

Tom from SWISCO

Mar 24, 2021 2:50 pm

Great, glad to hear you found a match. All pricing can be found on the S390-33 store page, which I linked you to above. This is also where you can place your order.
