Quick Learner from California

Oct 19, 2023 2:47 pm

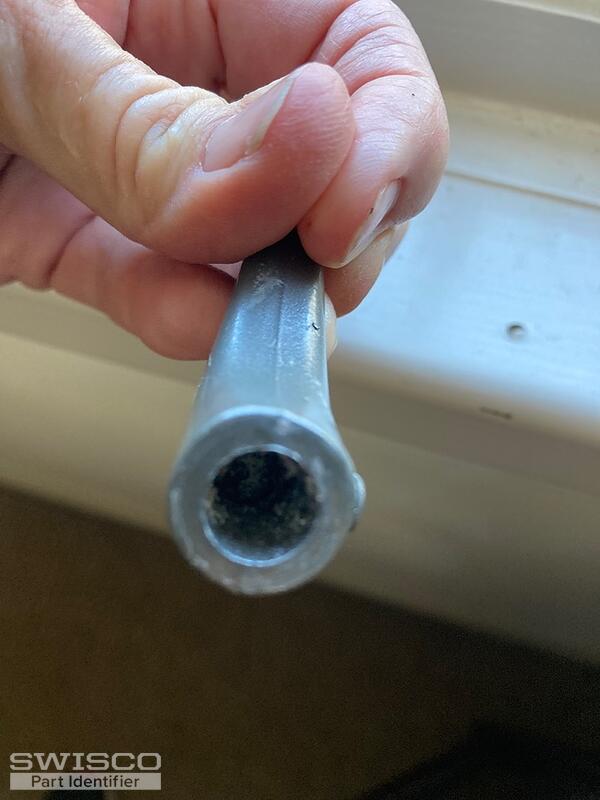

The dimensions match your picture but I cant get a measure on the circumference or depth of the part that connects to the window

5 user uploaded images

4 Replies

Casey from SWISCO

Oct 20, 2023 3:21 pm

Hello,

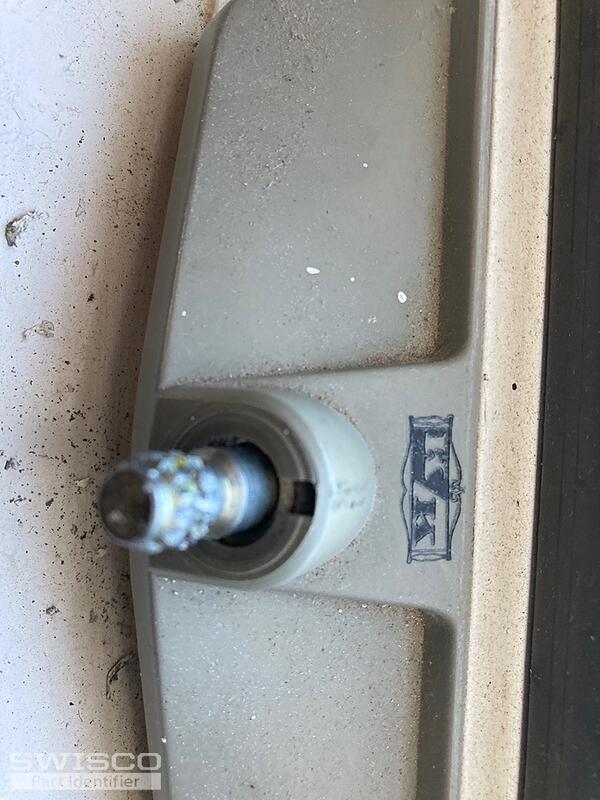

I suspect that you would need the 39-114L or folding 39-205 handle but you would need to confirm that your operator spline matches the 11/32" diameter shown below. Take a look and let us know if you have any other questions.

Alternate view of the gear hole

Quick Learner from California

Oct 20, 2023 5:13 pm

I don't have anything small enough to measure the. 11/32 gear hole. Any suggestions?

Casey from SWISCO

Oct 23, 2023 8:11 am

It is important to measure the diameter of the operator spline where the handle attaches to confirm that one of the handles that we mentioned will fit. If you'd like to give them a try and run into any problems, our return policy can be found here.
