Snap In Glazing Description Help

Quick Learner from Tomball, TX.

May 8, 2017 1:57 pm

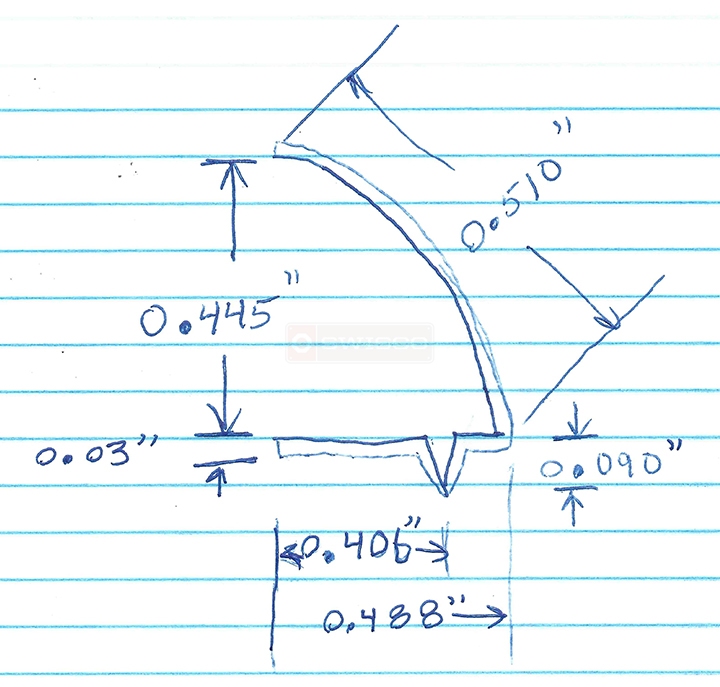

Good afternoon. I need help identifying what snap in window glazing I should get to replace around ALL of the windows in my house. I got my micrometer to get the dimensions defined in the attached drawing. Please note the material thickness. I tried to use one of your competitors but the thickness was too great for me to slide it into the groove.

Thanks for your help,

David

User submitted a photo of snap-in glazing.

8 Replies

Paul from SWISCO

May 12, 2017 9:21 am

Your dimensions are a big help, but I'm not quite sure about the shape of the profile. Yours is fairly unique. Would we be able to see a photo of the glazing itself?

Quick Learner from Tomball, TX.

May 31, 2017 8:07 pm

Hello. I submitted pictures after the above came back, but haven't received anything from you. Did you get them?

Thanks,

David

Paul from SWISCO

Jun 2, 2017 1:14 pm

I'm afraid we never received new pictures from you. Can you upload them directly to this thread for us to see?

Quick Learner from Tomball, TX.

Jun 3, 2017 10:44 am

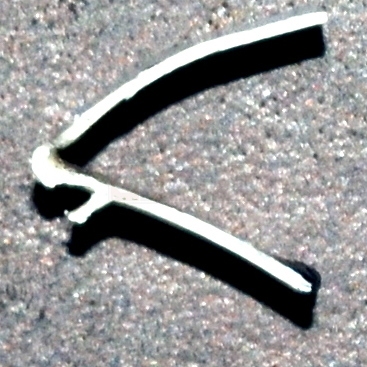

Here is the first picture. I will be sending a second picture in a couple of minutes. Hopefully this picture along with the sketch I provided a few weeks ago will help you. Please let me know if I need to resend the sketch.

Let me know if you need more information.

David

User submitted image of their window hardware.

Quick Learner from Tomball, TX.

Jun 3, 2017 10:46 am

Here is the second picture.

Let me know if I need to give you more information.

How are you doing on the window balances? Did you find any with the clip on them like I need?

David

Quick Learner from Tomball, TX.

Jun 6, 2017 12:06 pm

Did you receive my pictures of the glazing? Also, can you please let me know how much the spring balances will be? I sent that as a separate item.

thank you,

David

Paul from SWISCO

Jun 7, 2017 11:32 am

You might be able to use our 55-197 snap in glazing. The short leg with the locking angle should work. The other leg is a little longer and that might give you some trouble.

I'm afraid this is the only discussion we have from you. I'm not sure what your question is concerning spring balances. It's important you post all information directly to the discussion board. I think you may be emailing the automatic responses you receive by mistake.
