Snap in Glazing for Vinyl Windows

Question

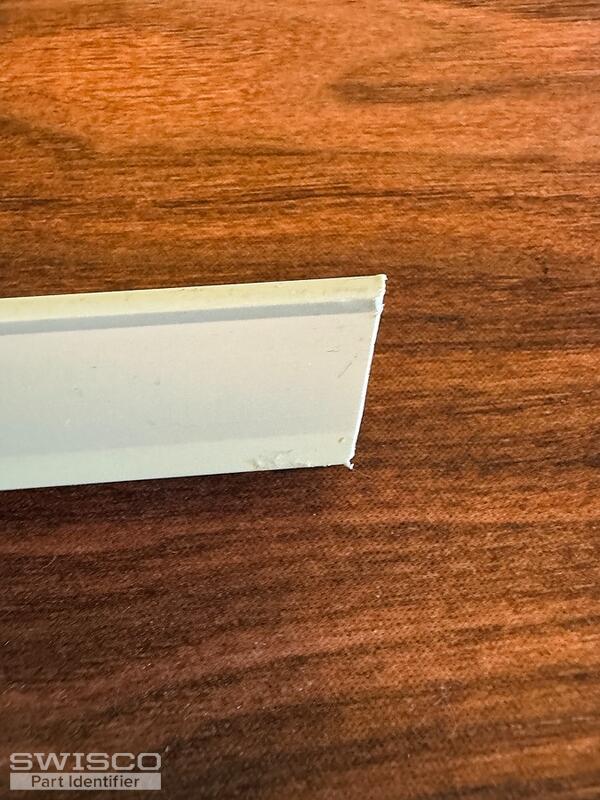

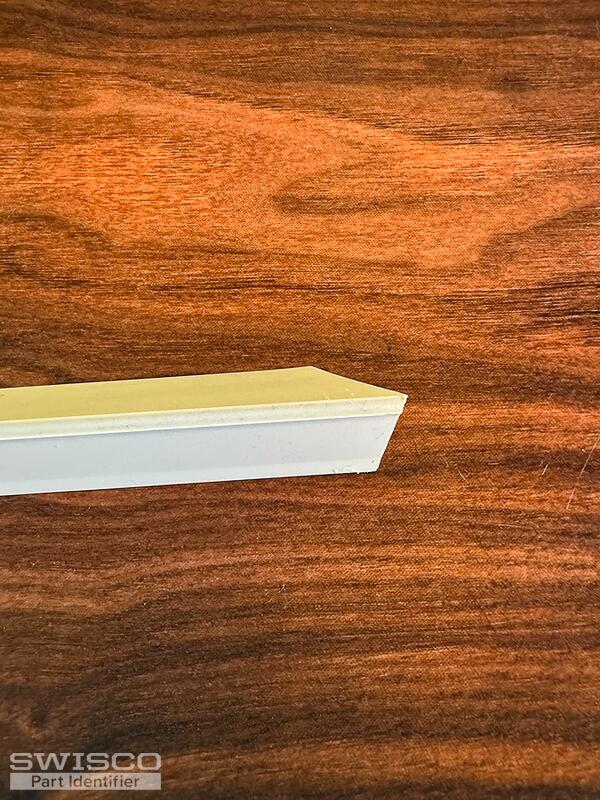

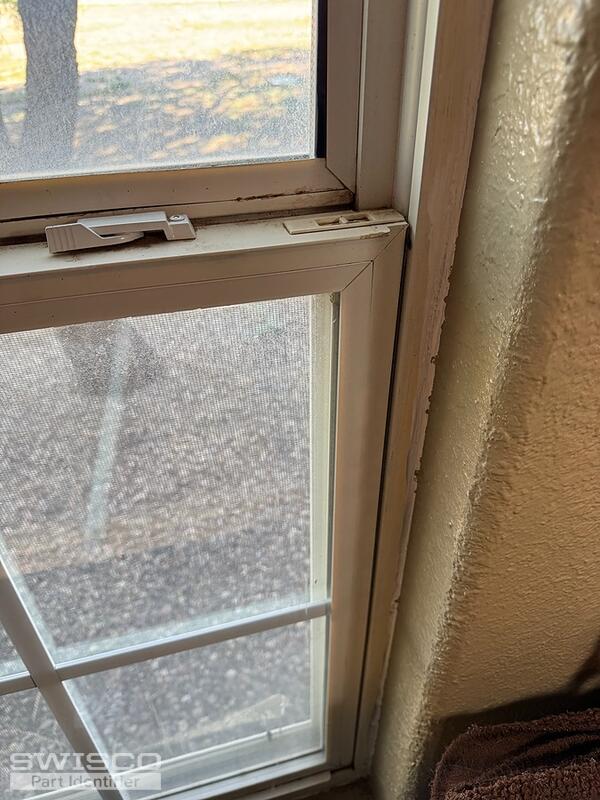

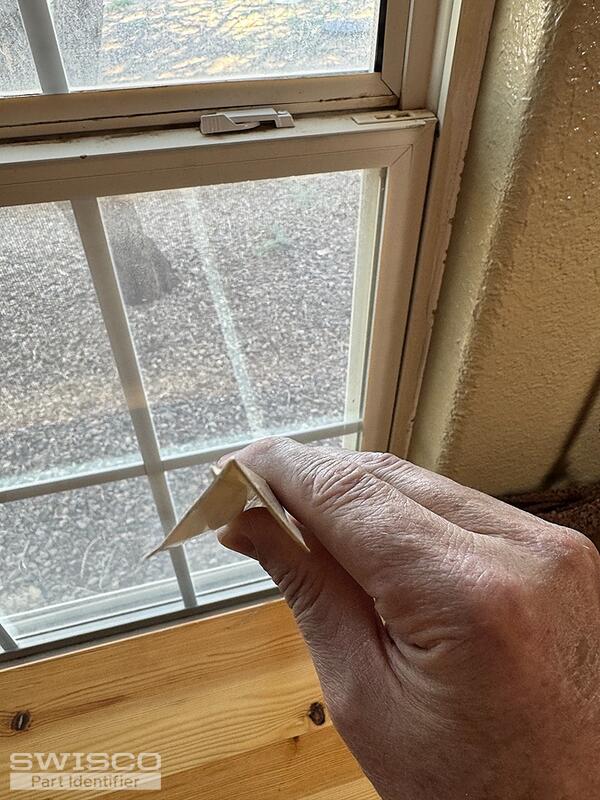

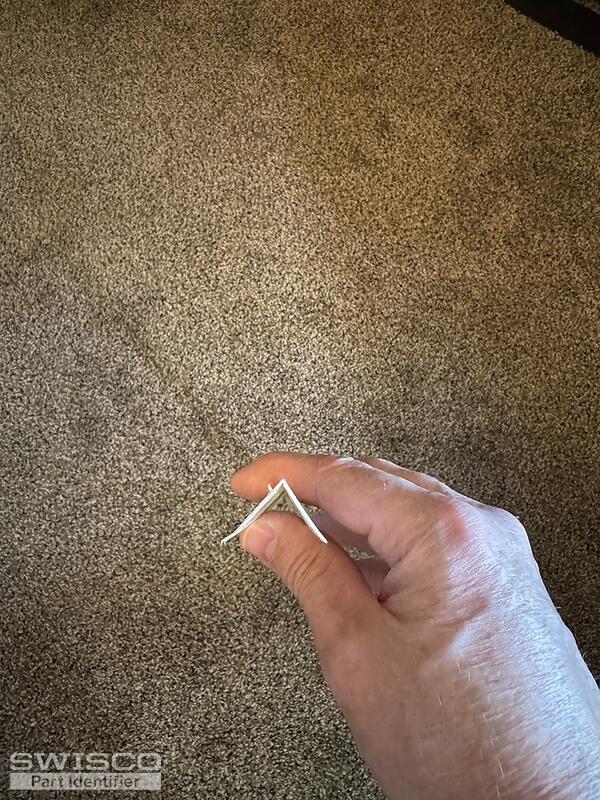

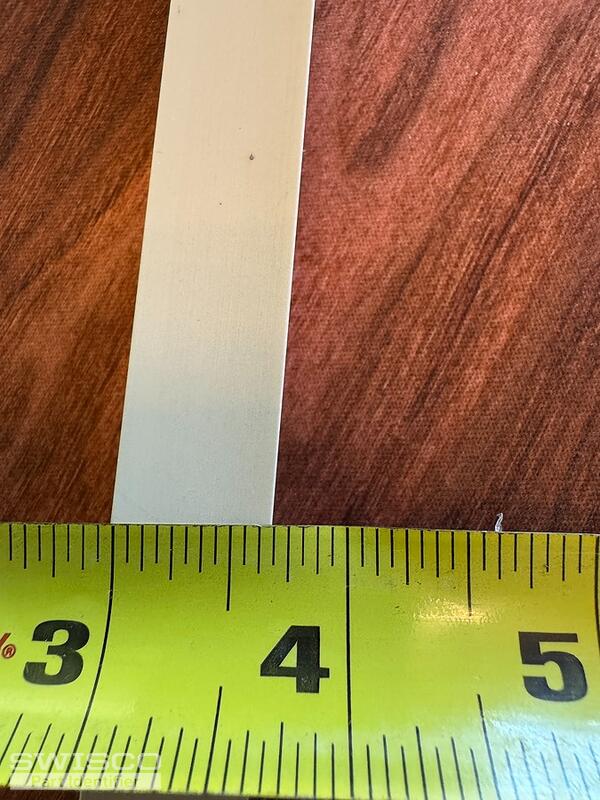

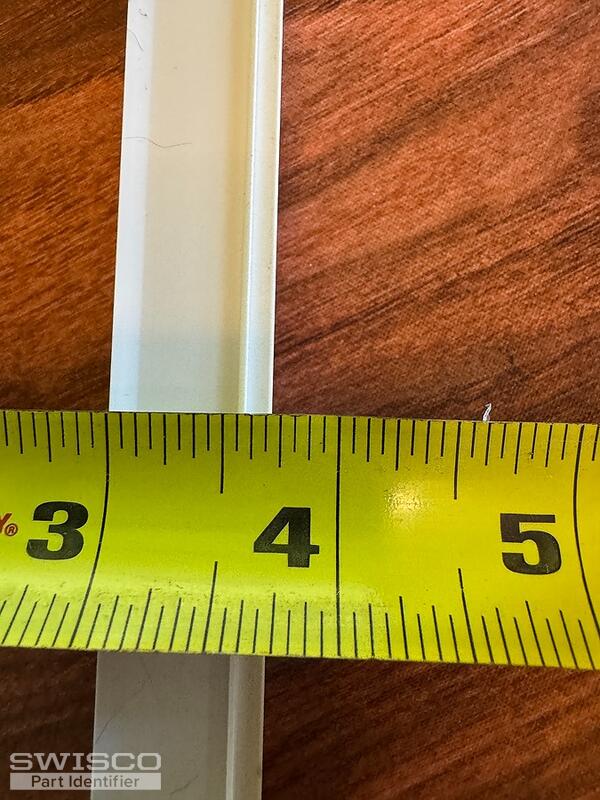

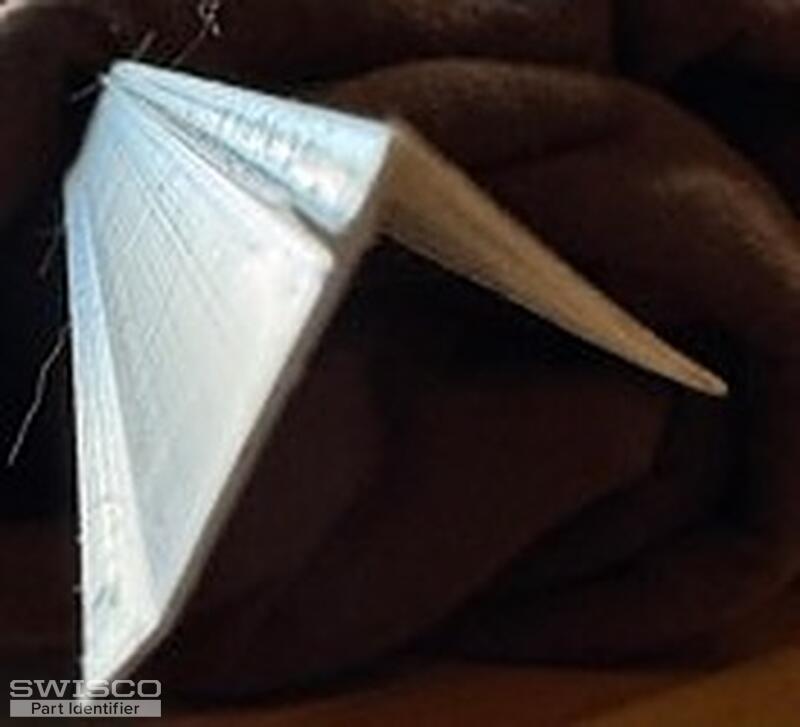

Looking for replacement Glazing for my Alenco Vinal windows. I cannot find any information on these windows or identification. The glazing i need is between the frame of the window and the glass panel. it covers the edge of the glass panel. the front face is 11/16 and flat, wider would be ok. the inside edge is also 11/16 or 3/4 and has a lip near the corner that tucks behind the frame edge and on the opposite side of the inside edge it has a flare that goes into a slot in the window frame.

Jasmine · Accepted Answer

Hey there,

Your Alenco glazing bead bears a very close resemblance to our 55-080-6 Snap-in (also available in a 3ft length, part 58-080). Take a look at the diagram and compare this to your bead to see if it will be a fit.

This is the closest replacement match we have for your glazing.

profile view of 55-080
