Snap in glazing

A home owner from New Jersey says:
I am looking for this snap in plastic glazing for a pennco aluminum window, 9/16" wide ,1/8" deep at top of channel, the piece that you see when installed is 5/16" wide by 1/8" .
Thumbnail of the uploaded file named CB1295AD-71F2-4454-B138-5683B831767F.jpeg
Thumbnail of the uploaded file named 62F72E05-2D67-4B86-87A2-8E979A8B62B9.jpeg
Thumbnail of the uploaded file named 8F241F37-D2BB-4F70-8432-903EE4287802.jpeg

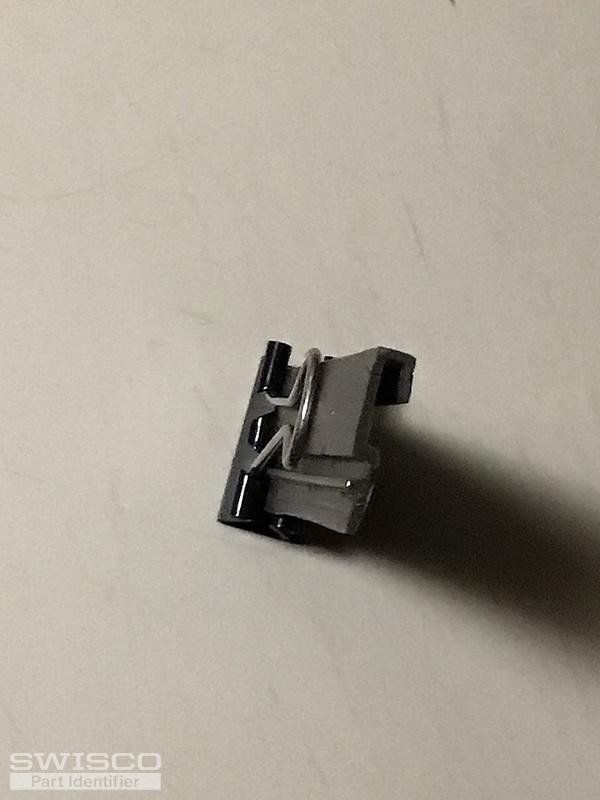

Thumbnail of the uploaded file named E2D183B2-6CFF-4DCF-95DD-DB3158CF14CE.jpeg
Profile picture of Julia
Julia from SWISCO responded:

Hello, thanks for posting! Take a look at our 55-076. Compare its dimensions to yours to see if this could be a match

A home owner from New Jersey says:
It's possible that would work ,I was also looking at 55-066, do you think that would work, but the both of those glazing strips probably would not match the existing glazing, so I would have to change all sides of window. Times four. I would have to get one to see if it will fit the window.
Profile picture of Julia
Julia from SWISCO responded:

The 55-066 is a possibility. You may want to consider our offering of samples, which you can find here. Good luck with your repair!

A home owner from New Jersey says:
I also have to change my channel balance in the windows they are the original balance, the sash weight is 19 to 29 lbs, the windows go up easy but I have to use force to bring them down, would a lighter sash weight solve this problem, or are the original balance just worn out. Do you make the glass double insulated replacement panels, or know someone in NJ that does.
Profile picture of Julia
Julia from SWISCO responded:

Would you be able to show us your channel balance? We would also like to know the stamp or imprint on the metal channel. This will help us determine if you have the appropriate spring strength. We unfortunately do not carry replacement glass panels - you may want to contact your local hardware store.

A home owner from New Jersey says:
Ok I will send a picture of the stamp,I also need channel balances I am looking at 380 and 385 the measurements of the shoe are almost the same so I can't tell the difference. I will send pictures of them.and top sash guides . The guides that look the same are 18-061 but not sure.

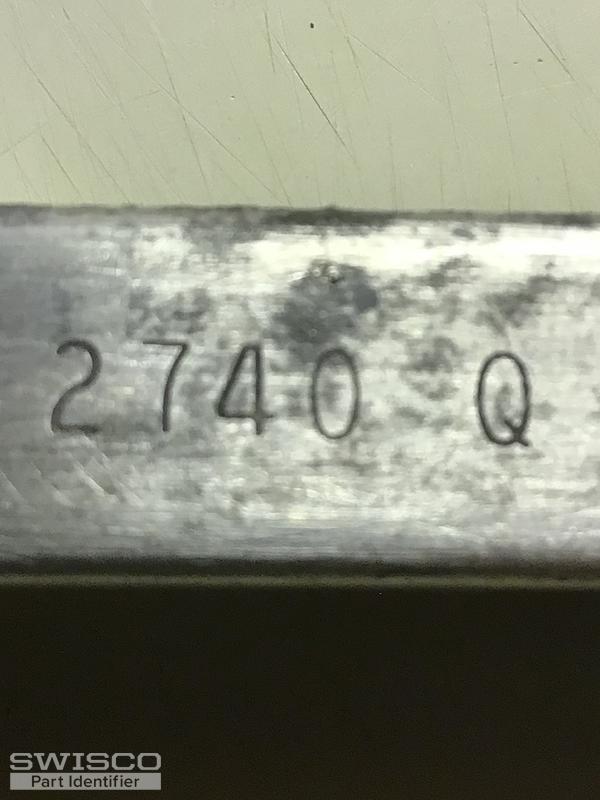

Thumbnail of the uploaded file named B7833D51-CC0C-4514-B1A4-92CDF5B7F587.jpeg

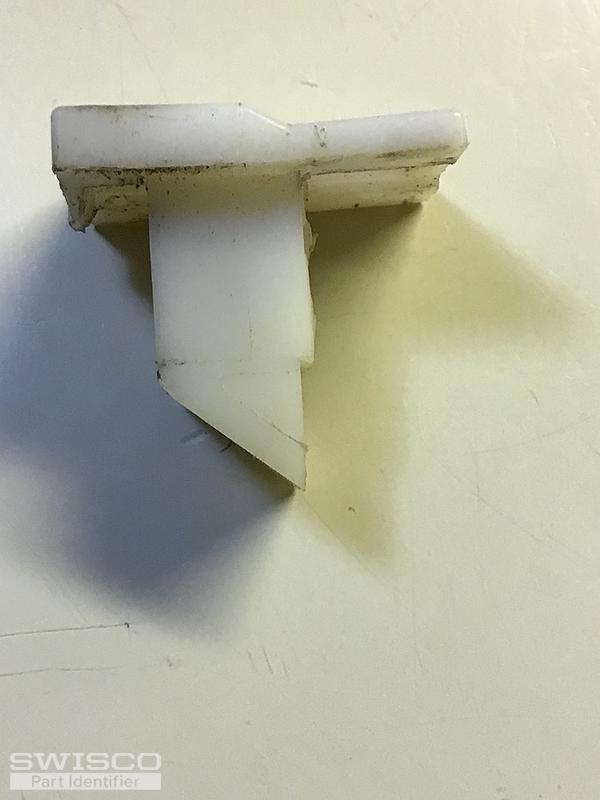

Thumbnail of the uploaded file named 613EEF04-F68F-4FE6-BF45-22786A934E3D.jpeg

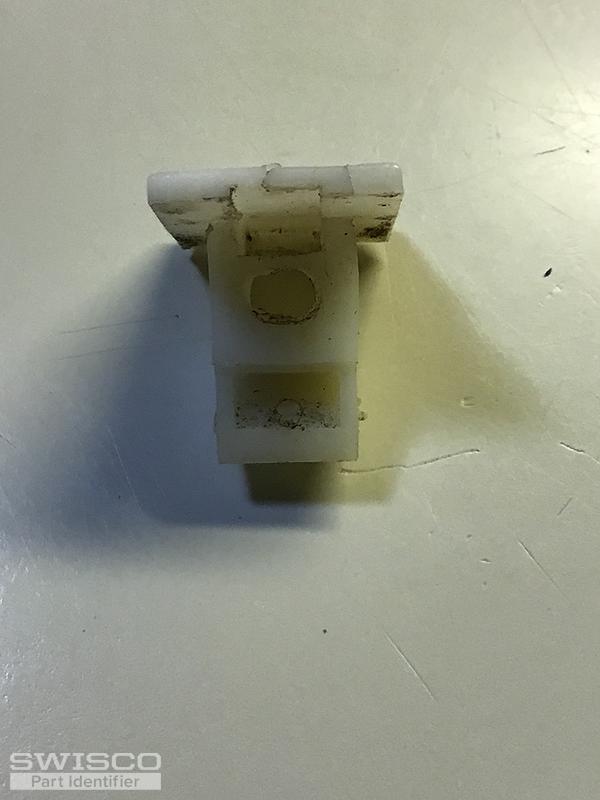

Thumbnail of the uploaded file named 7E17B5DA-F7C1-43C3-BAC7-18A41583B30B.jpeg
Thumbnail of the uploaded file named 49350E0A-CEDD-4EAF-AA2C-F7F2FBE7C16E.jpeg

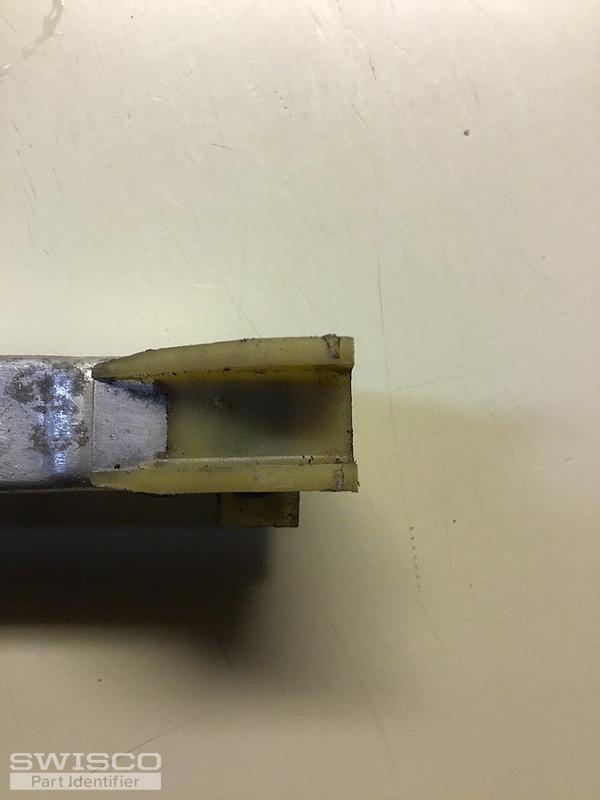

Thumbnail of the uploaded file named 3A5CE59F-9B10-4396-AEA7-60D8F3841FE4.jpeg
A home owner from New Jersey says:
I will send more pictures.

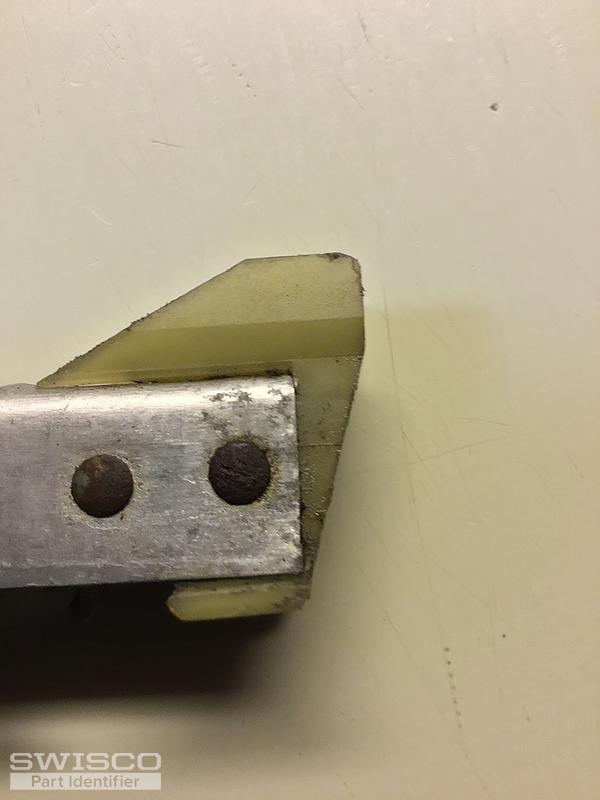

Thumbnail of the uploaded file named 499C2A4F-EB33-4639-B22D-F6FAB0A56B94.jpeg

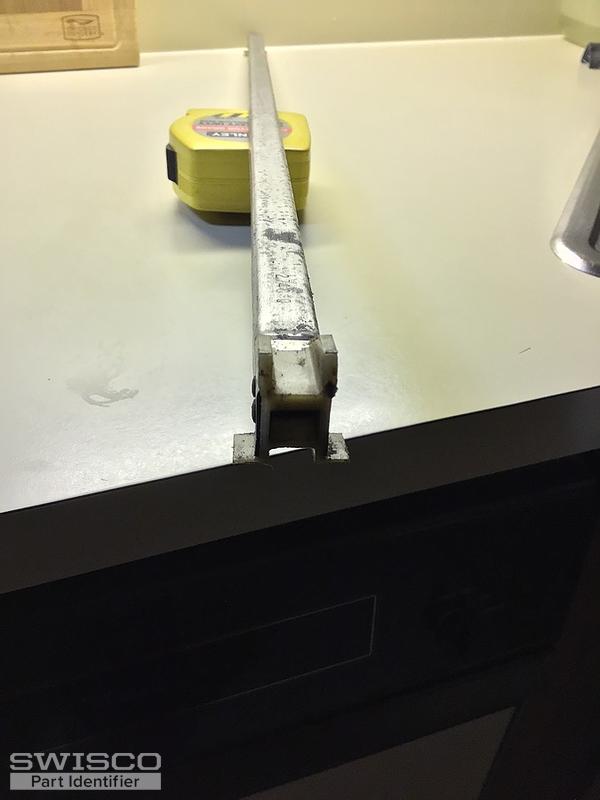

Thumbnail of the uploaded file named 9FBDE51B-8CA3-4062-955F-D6D7DBDA9BB1.jpeg
Thumbnail of the uploaded file named B831C69D-A841-4AE5-97B7-BAA1F84CABB1.jpeg
Profile picture of Julia
Julia from SWISCO responded:

Thanks for the follow up pictures. The difference between the Series 380 and the Series 385 lies in the depth of the shoe. Take a look at the picture below for more detail. You will need to determine this dimension to select the appropriate balance.

1

A 2740 stamp indicates a sash weight range between 19 to 26 pounds. I recommend getting your exact sash weight to ensure you have the appropriate balance. Finally, in regards to your top sash guide, as long as the dimensions are the same I think the 18-061 looks like a good match!
