Snap in vinyl glazing bead

Quick Learner from Pennsylvania

Aug 30, 2017 3:44 pm

Hello, I have a bow bay window with multiple double paned windows which I am replacing. The bead is older and brittle, not sure of the window manufacturer or the make of the bead. Its about 1"

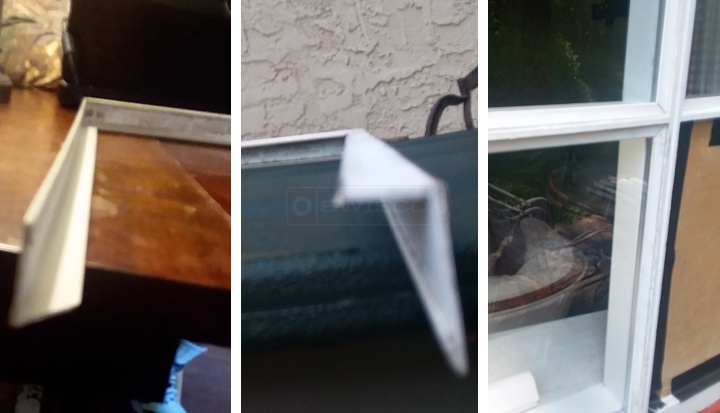

User submitted photos of a glazing bead.

5 Replies

Tom from SWISCO

Sep 6, 2017 11:47 am

Unfortunately, your cross-section photo is too blurry to tell exactly what you need. Can you take a clearer photo from roughly the same angle and send it in? We'd also like to know the dimensions of the cross-section. How long is each of those "legs" on the edge of the glazing?

Quick Learner from Paoli,Pa.

Sep 7, 2017 1:33 pm

Sorry, the message got cut off. The leg measurements are 1 inch by a half inch for the legs. Thank you very much

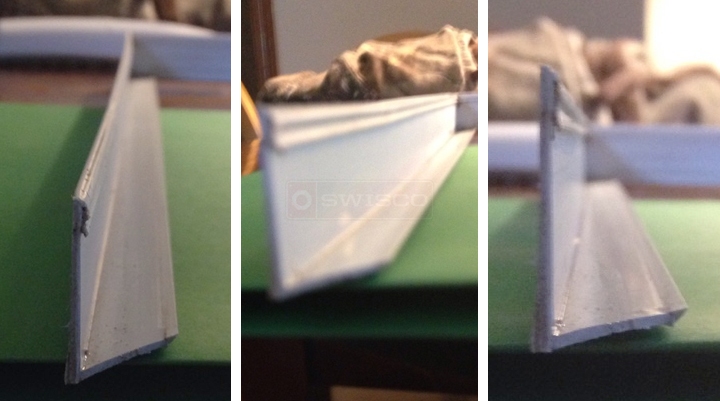

User submitted photos of snap-in glazing.

Dave Sr. from SWISCO

Sep 13, 2017 9:52 am

Look at our 55-175 glazing bead, which is used on Hurd windows. This could be the one you are looking for.

Quick Learner from Paoli,Pa.

Sep 13, 2017 10:11 am

Thank you very much, we ordered it, looks very similar.Thanks again for your time
