Snapped off Sash Pivot Pin

Handy Person from San Diego

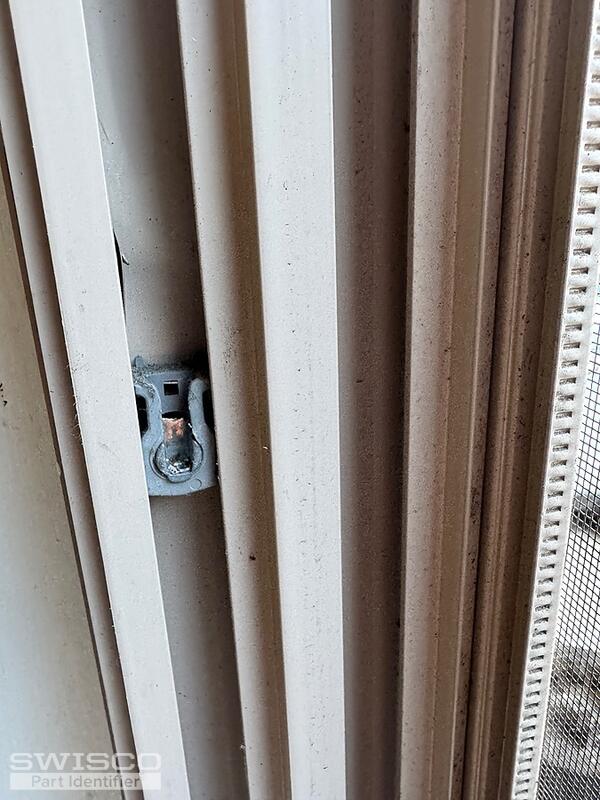

These windows were installed around 2016 the sash pin broke on Both side sides on another window. This is a photo for a reference. Do you know which one I need to order?
1 user uploaded image
6 Replies
Casey
Casey from SWISCO
SWISCO
Expert

Hello,

We'd be happy to help but we would need to see photos of an intact pivot bar removed from one of your windows to compare to our inventory. See the videos related on this page to help you through the process. Thank you!

Handy Person from San Diego
Here is the one I need
2 user uploaded images
Paul
Paul from SWISCO
SWISCO
Expert

Thanks for getting back to us. Unforutnately, we do not carry an exact match for your pivot bar. To help us if a replacement is available for your window, we would like to see the pivot shoe that your pivot bar engages with. Also, please include some written-out dimensions of the pivot bar, including the width, length, and installation hole backset from the tip to the first hole and from the first hole to the mounting second hole. That will help us narrow down your options.

Handy Person from San Diego

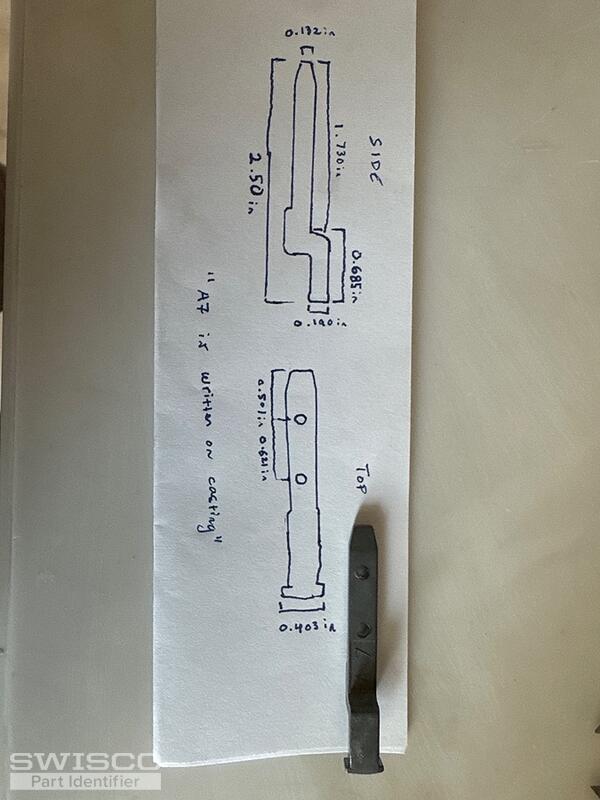

Here they are! Thank you...
2 user uploaded images
Paul
Paul from SWISCO
SWISCO
Expert

Unfortunately, we don't carry an exact match for your offset pivot bar but we have a few options that you could consider. Start by reviewing the specifications of our 26-021, which would be compatible with the 15-191 pivot shoe. Review the specifications of both parts below and let us know if you need anything else.

Alternate image for 26-021
Alternate image for 26-021

Alternate image for 15-191
Alternate image for 15-191
