Solar Tite Sliding Door

A home owner from Clermont, FL says:
February 16, 2018
Hi, I need some help! Two things. one is I'm concerned about my measurements on the weather strip because the sun and weather has shrunk the materials ... so here's what I get 3/16 x 3/8. see photos. My next concern is installation. I don't see a way to feed the new striping in the cannels.(see photos) Any help?

thank you, Steve

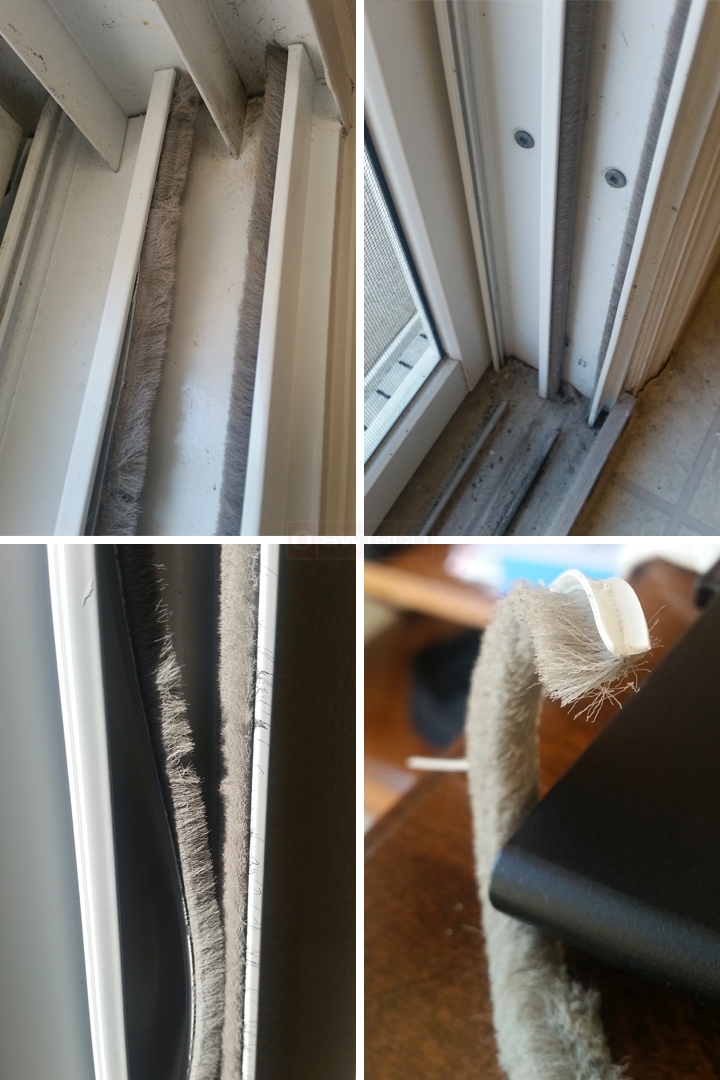

User submitted photos of wool pile.
Profile picture of Dave Sr.
Dave Sr. from SWISCO responded:
February 20, 2018
We do carry the 58-198, which has a 3/16" backing and a height of 7/16", if you think that could work in your door. 7/16" is a little higher than 3/8", but you said yours may have shrunk a little. In a worst case scenario you could always give it a slight "haircut" with a straight edge razor.

Looks like original wool pile was installed before the doors were assembled. What I do in this situation is to put one half of the wool pile base into the groove and then use the back edge of a razor knife to force the other side of the wool pile leg into the groove.
Grey Pile Weatherstrip, 3/16" x 7/16"
Grey Pile Weatherstrip, 3/16" x 7/16"
58-198
$9.80
How to Cut Out Pile Weatherstripping
How to Cut Out Pile Weatherstripping
VIDEO
WATCH >
Identifying Replacement Weatherstripping
Identifying Replacement Weatherstripping
VIDEO
WATCH >
