Special Order Balance(s)

A professional from Portland, OR says:
September 14, 2022

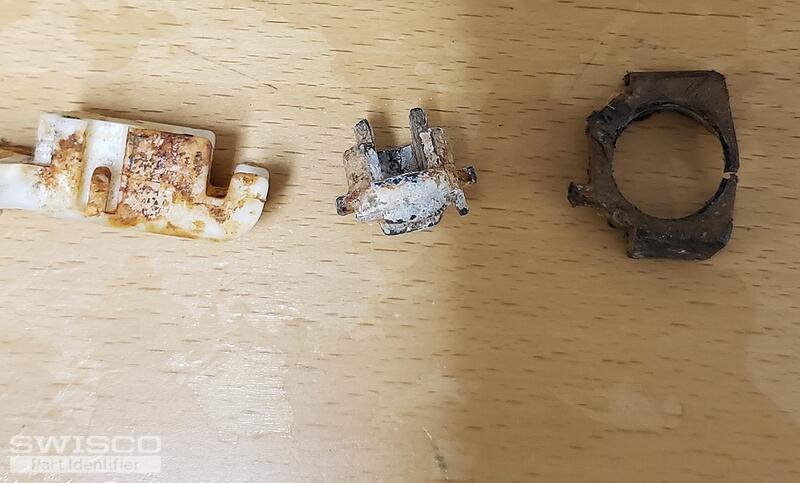

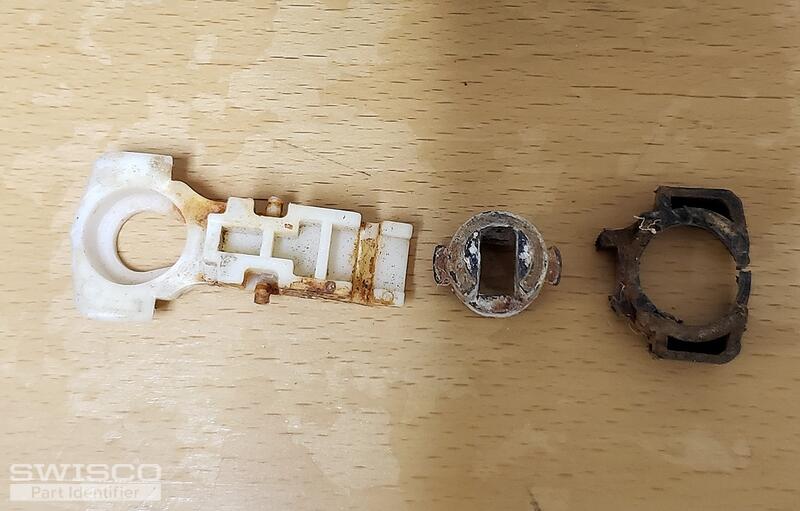

Need to order 4 balances for tilt windows - 28" with Pivot Lock shoe and 2 1/2" pivot bar. The original balances are eroded due to salt water - attached is a picture of the pieces of the pivot shoe to better identify the parts.

Thanks in advance
Thumbnail of the uploaded file named 20220914_105007.jpg
Thumbnail of the uploaded file named 20220914_105048.jpg
Thumbnail of the uploaded file named 20220914_105100.jpg
Thumbnail of the uploaded file named 20220914_105132.jpg
Thumbnail of the uploaded file named 20220914_105142.jpg
Profile picture of Tom
Tom from SWISCO responded:
September 19, 2022

Hello! Your balance appears to be a match for our S795-28. The only major difference is that your shoe appears to be the smaller 1" wide variety, whereas the S795-28 comes with the larger 1-1/4". With that in mind I recommend purchasing our 15-194 separately and attaching it to your balance up on receipt. The video below will show you how it's done. They just snap on and off so it's very easy.
1" T-Lock Balance Shoe, Closed Cam
1" T-Lock Balance Shoe, Closed Cam
15-194
$2.05
How to Install a T-Lock Shoe on a Channel Balance
How to Install a T-Lock Shoe on a Channel Balance
VIDEO
WATCH >
How to Convert a Crossbow Balance to a Channel Balance
How to Convert a Crossbow Balance to a Channel Balance
VIDEO
WATCH >
Modifying the Series 795 Balance
Modifying the Series 795 Balance
GUIDE
READ >
Classifying Channel Balance Fittings
Classifying Channel Balance Fittings
GUIDE
READ >
