Spiral Balance
Quick Learner from South Carolina
Sep 19, 2024 8:10 am
Looking for spiral balance rod measurements 7/16 or 3/8 diameter and 29" length tag on window series Twinseal Double hung AAMA/NWDA 101/I.S 2-97 H-R15-46X77 H-R25-46X65(modif) H-R25*-42X77(modif) Complies with HUD UM-111

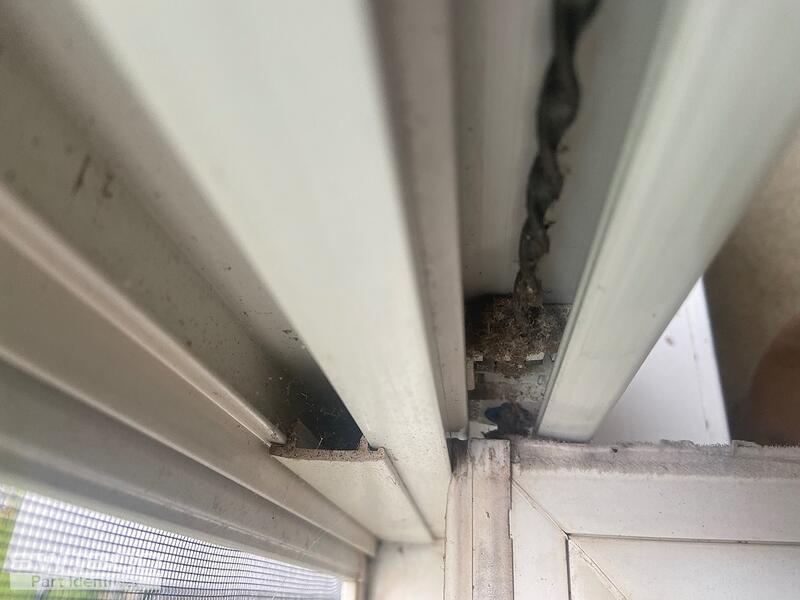

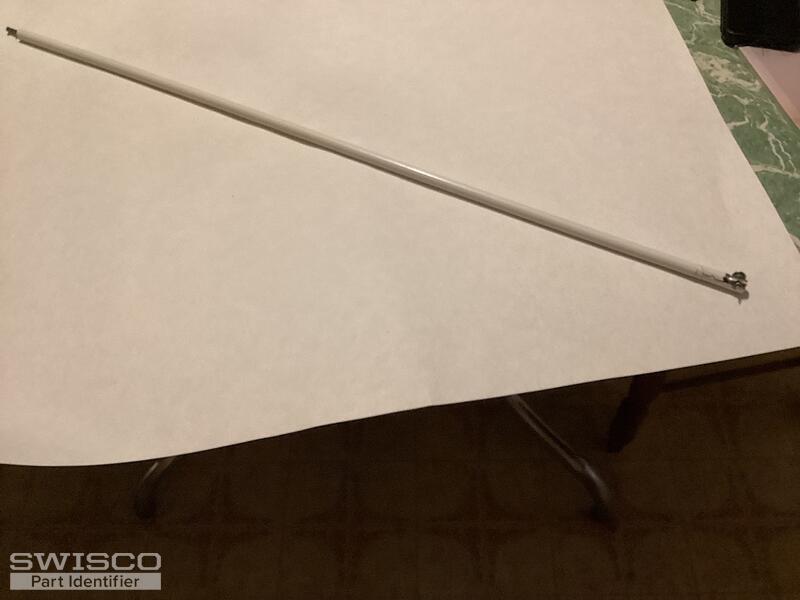

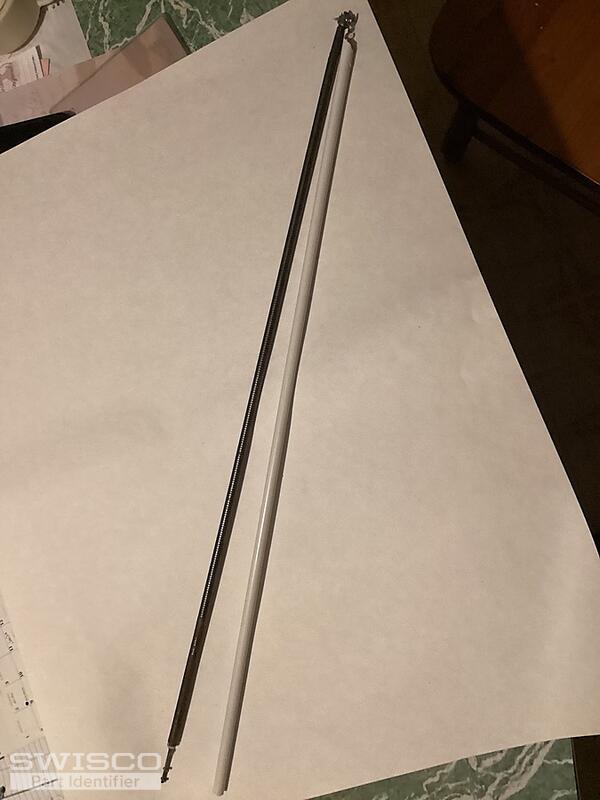

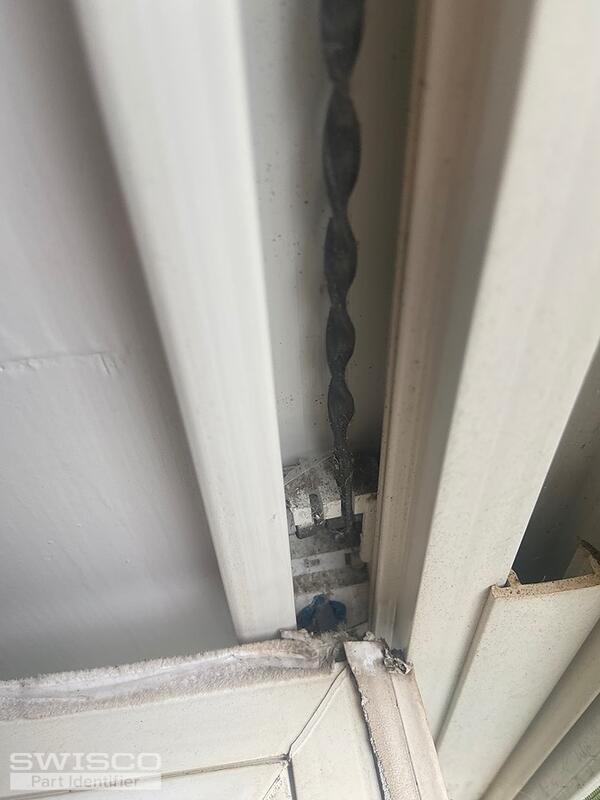

4 user uploaded images
2 Replies
Casey from SWISCO
Sep 24, 2024 8:29 am
Hello,
If the white housing tube of your spiral balance measures 3/8" in diameter, take a look at the S900-29 for tilt windows. You'll also need to weigh your sash to determine which option you'll need. There is a chart on the product page that explains how to choose your color option based on the sash weight.
