Spiral Balance Assistance

A professional from Lancaster, PA says:
June 19, 2020

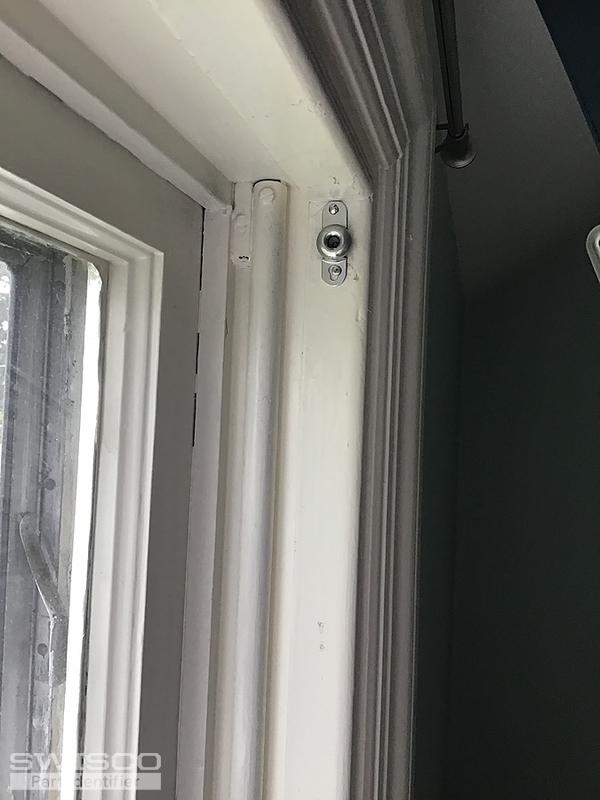

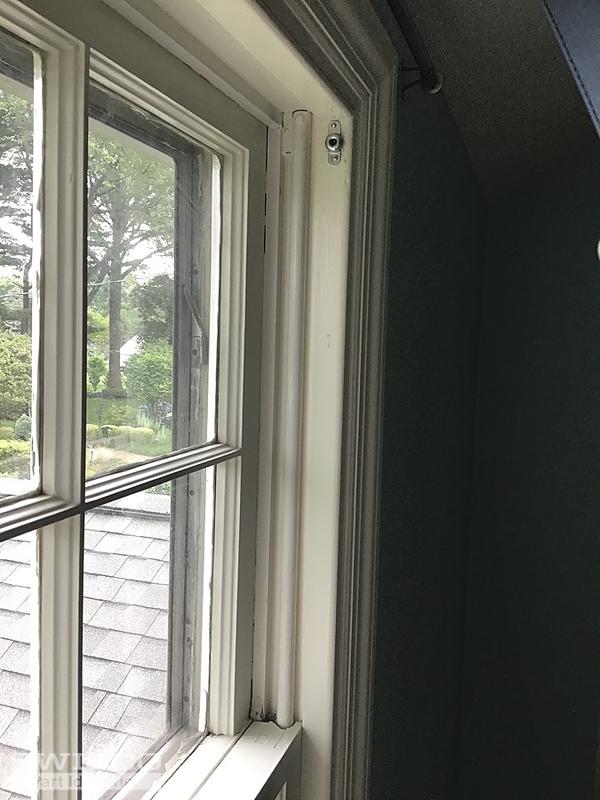

House built in 1950. Sash spring 5/8" thick. Attached to bottom of window with a 3" bracket, two screws.
Thumbnail of the uploaded file named 7135F9BF-B9EE-4F8F-948E-40F54B2B45BD.jpeg
Thumbnail of the uploaded file named 02C83514-1E45-4533-9457-9AB58152B285.jpeg
Thumbnail of the uploaded file named FE217901-E81F-4B17-813F-FD2FA0CF93E2.jpeg
Thumbnail of the uploaded file named 30F92763-5719-41D9-8AF4-A1460B2FCC6A.jpeg
Thumbnail of the uploaded file named 78DD9D01-C470-48EA-8EBF-22589B1D16C9.jpeg
Profile picture of Bob
Bob from SWISCO responded:
June 23, 2020

These older spiral balances can be replaced by our Series 500, along with a 17-012 bracket that screws to the bottom of the sash. It looks like from your photos you'd need the S500-23 specifically, but double-check your dimensions to be safe.
A professional from Lancaster, PA says:
June 23, 2020
Thank you Bob. I'll check dimensions, order a pair to see how they work and then take care of the rest of the house. Thanks again!
Profile picture of Bob
Bob from SWISCO responded:
June 24, 2020

My pleasure. Let us know how you make out, and good luck with the repair.
Bracket, #32
Bracket, #32
17-012
$1.20
23" Series 500 Spiral Balance
23" Series 500 Spiral Balance
S500-23
$8.80
