Spiral Balance ID

Contractor from Concord, NC

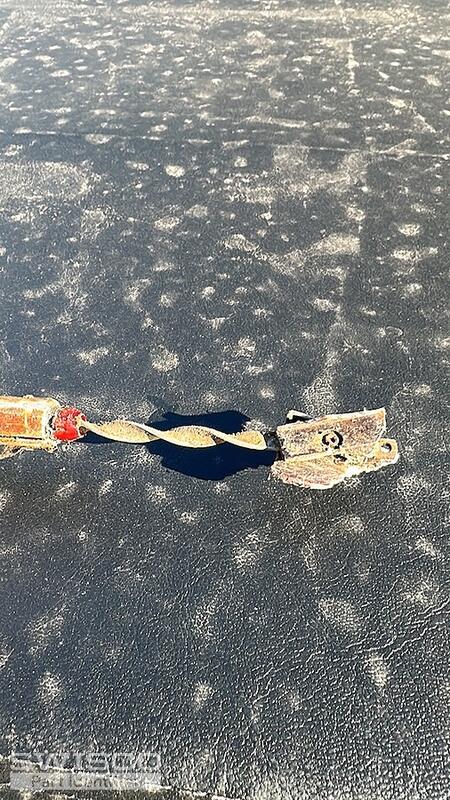

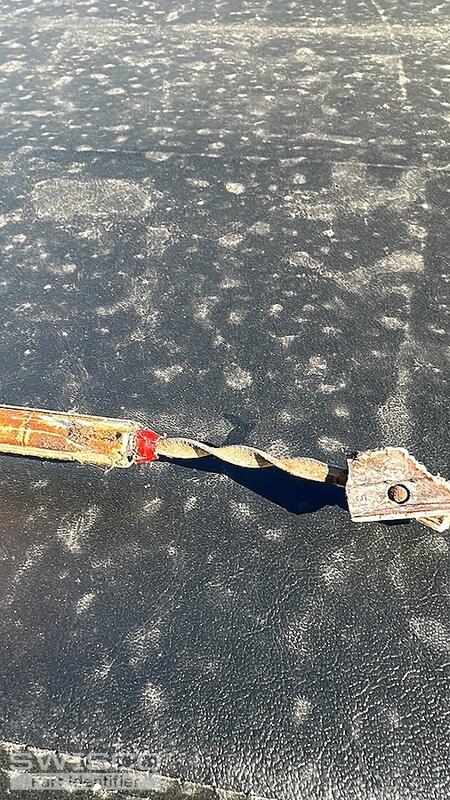

Red tip, 5/8" diameter, 19" length but hard to tell what style shoe.
5 user uploaded images
2 Replies
Jasmine
Jasmine from SWISCO
SWISCO
Expert

The shoe attached to the bottom of your spiral balance is the 15-010 Spiral Balance Shoe. This shoe is used on both the Series 200 Spiral Balance or the Series 303 Keller Spiral Balance Assembly (used in Keller windows).

That said, I believe the S200-19 is the replacement you'll need. Be sure to double check that your internal rod measures 21-1/8" in length.
