Spiral Balance Tilting Window, Aluminum

A home owner from Ponte Vedra Beach FL says:

I need to replace the left plastic holder and the metal piece attached to the bottom

of the window that allows the window to swing down. The spring balance measures 3/8 inch with a red bottom and the length of the balance is 26", although the balance is in good condition. All the windows in the house are more than 25 years old but still function well. If I can get the above holder and metal piece I may want to replace them all. The aluminum window frames are taking a beating in the Florida climate.

Thumbnail of the uploaded file named IMG_20191124_121206 (2).jpg
Thumbnail of the uploaded file named IMG_20191125_102458.jpg
Thumbnail of the uploaded file named IMG_20191125_110005.jpg

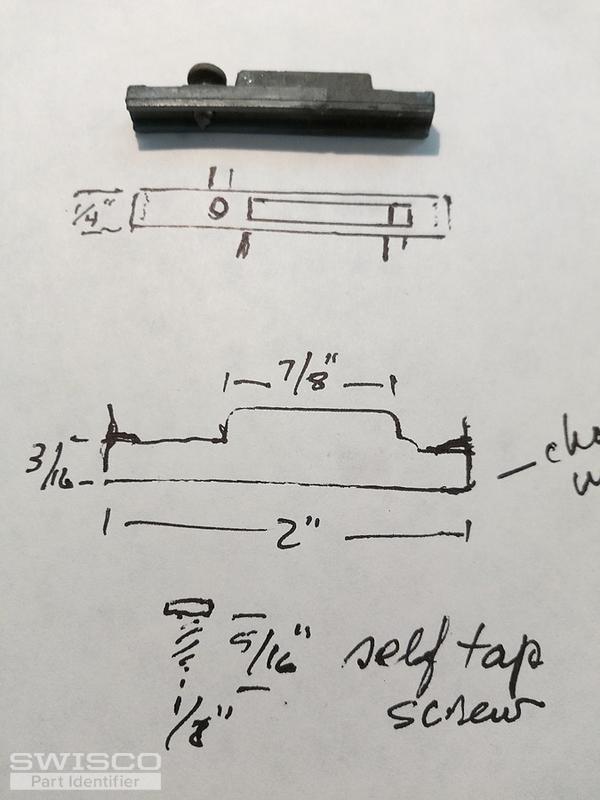

Thumbnail of the uploaded file named IMG_20191125_103150.jpg
Profile picture of Tom
Tom from SWISCO responded:

Hi there! Thanks for your patience during the holiday season. Your pivot bar looks a lot like our 26-041, which is made to be used with our 15-045 pivot shoe. Look these parts over and let me know if you agree.

If you also needed the spiral balance, see our S900-26. This is fully compatible with the parts I mentioned.

A home owner from Ponte Vedra Beach FL says:
Thanks, Tom. I ordered the parts from you and installed today. Had to grind a groove in the pivot shoe to clear the bottom spiral balance pin but otherwise everything fit perfectly.
Profile picture of Tom
Tom from SWISCO responded:

Great! Glad to hear everything worked out.
