Spiral Balance for 90's Atria Window

Quick Learner from 43035

Hello,

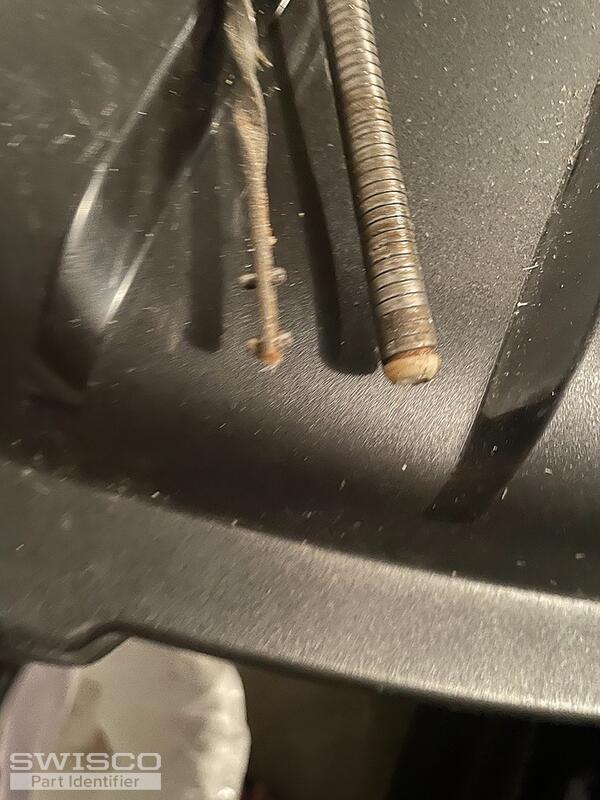

28" spiral balance replacements (pair) are needed for a single hung, tilt, Atria vinyl window. White vinyl cavity covers, 29.5", are needed as well. It appears that the 28" Series 600 Spiral Tilt Window Balance, Product Code: S600-28 would work. I'm unable to see the tip color but the sash weighs 12.4 pounds. Please let me know the parts that should be ordered.

Your help and experise are appreciated!

Thank you!

Trish

4 user uploaded images
2 Replies
Bob
Bob from SWISCO
SWISCO
Expert

Hey Trish. If the outer tube is 5/8" in diameter and 28" long, then you do indeed need the S600-28. If the sash weighs 12.4 pounds, choose the Red Tip option, which will support a window sash in the weight range of 7 through 29 pounds. I am afraid we do not carry balance covers. They are too particular for each window size and manufacturer for us to supply. I apologize for the inconvenience. Let us know if you have further questions.
