Spiral Balance for tilt window

A quick learner from Franklin, TN says:
March 27, 2022

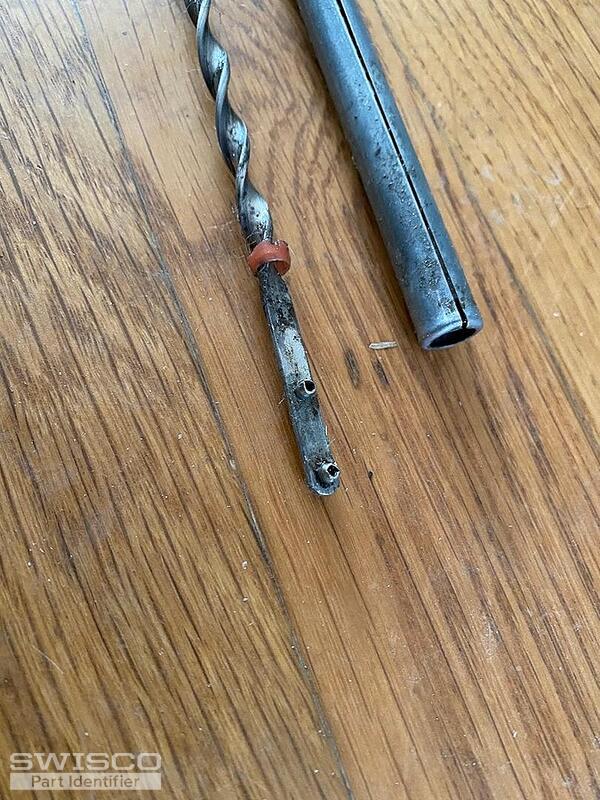

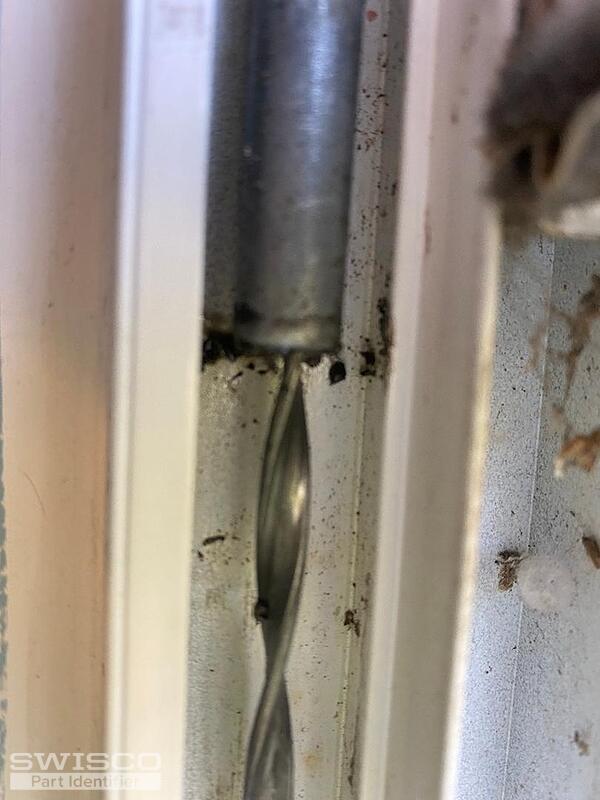

"Pic 1" shows the broken balance (pictures out of order). There appears to be a red tip, but that was inside the balance. If you see "Pic 2", that is the balance on the opposite side of the window - it does not have a colored tip. So I assume you should ignire the broken red piece in "Pic 1". The sash weighs 12 lbs. The broken balance's tube is 28" long with a 5/8" diameter.
Thumbnail of the uploaded file named pic 1.jpg
Thumbnail of the uploaded file named pic 2.jpg
Profile picture of Lauren
Lauren from SWISCO responded:
March 29, 2022

Hello, thank you for posting,

Based on the measurements provided, please review the S600-28 spiral balance that has a 5/8" diameter. For a 12 pound window sash, you can use a red tip option. Please let me know if you have any additional questions.
28" Series 600 Spiral Tilt Window Balance
28" Series 600 Spiral Tilt Window Balance
S600-28
$9.28
How to replace a tilt window spiral balance.
How to replace a tilt window spiral balance.
VIDEO
WATCH >
How to Identify a Replacement Spiral Balance
How to Identify a Replacement Spiral Balance
VIDEO
WATCH >
How to choose the proper spiral balance tip color
How to choose the proper spiral balance tip color
GUIDE
READ >
How to adjust a spiral balance on a tilt window
How to adjust a spiral balance on a tilt window
GUIDE
READ >
