Spiral Tilt Window Balance

Question

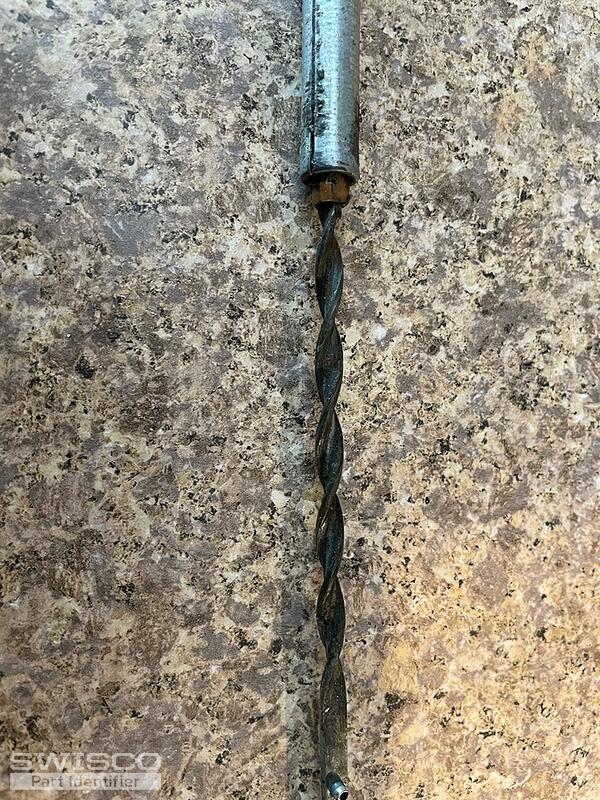

Hello, I have a balance that has broken for my window sash that I need to replace. I cannot identify a tip color for certain. My window is 27 lbs, I have measured the tube diameter at 3/8" and the tube length at 30". There appears to be a marking on the balance of FC A 1375 at the top of the balance where it mounts to the window frame. I have attached photos of the tip, the markings, the tube length and the tube diameter. Thank you for your help

- John

Jasmine · Accepted Answer

Thanks for posting! Your spiral balance appears to be our S900-30 with a 3/8" diameter. You'll need to select the yellow tip for your 27lb sash. I am confident this is the replacement balance you'll need.
