Hi
The length of tube is 24 inches
The width of the tube is 5/8 inches
The pivot shoe is 2 inches and 1/16 in length and
1 inch and 5/16 wide and 1/2 in depth
Spiral arm ,tube and shoe replacement
Quick Learner from Maryland
May 20, 2022 7:35 pm

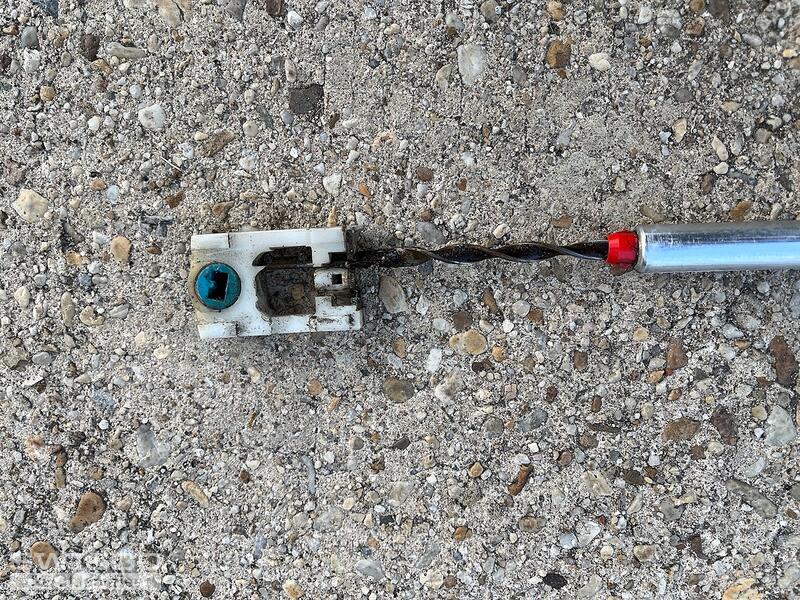

1 user uploaded image
2 Replies
Tom from SWISCO
May 24, 2022 3:34 pm
Thanks for reaching out to us. Your spiral balance looks like a match for our S600-24, but I'm not sure about the shoe. Most shoes in this style are 1-1/4" wide, not 1-5/16". Could you triple check that dimension?
