Spiral balance 70s aluminum

Question

Hello

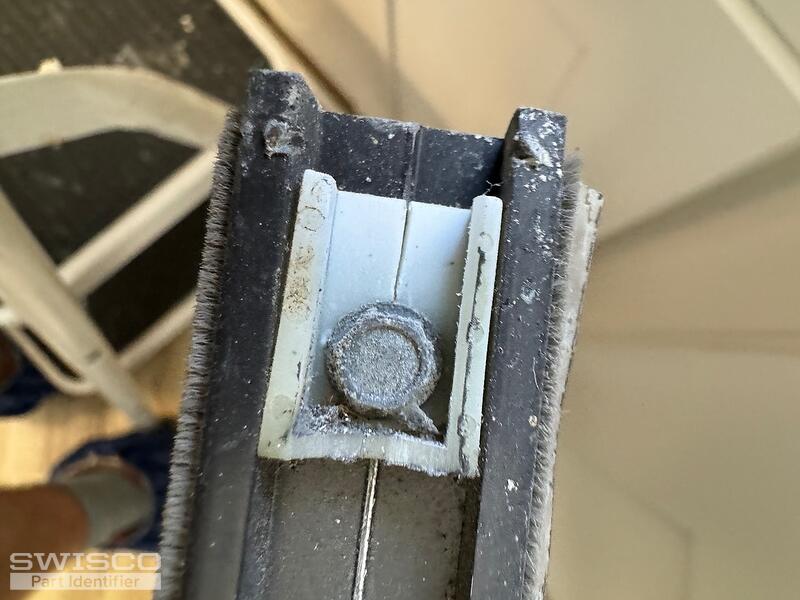

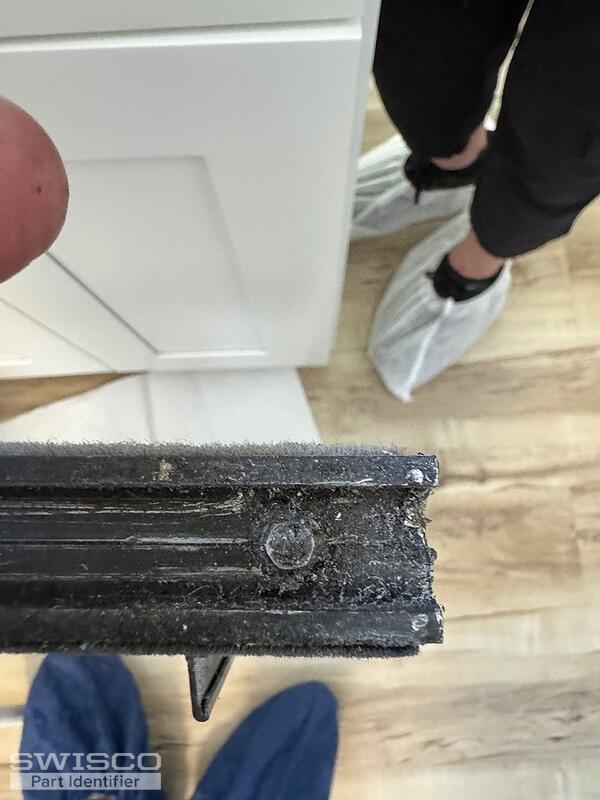

My spiral balance are 9/16 red top non tilt. The attachment at bottom of sash is missing. The rub block is still on top of sash. 24" tube length. What do I need for attachment at bottom of sash?
Thank you!!!!

Paul · Accepted Answer

Hello,

You may need the S500-24 red tip spiral balances but keep in mind that the tube diameter measures 5/8". The bottom balance bracket would be the 17-025 and 18-001 top nylon guide. We also offer the 75-005 charging tool for installing the balances. Review the related parts to confirm if they would work for your repair. Thank you.
