Spiral balance

A quick learner from Mississippi says:
February 27, 2022

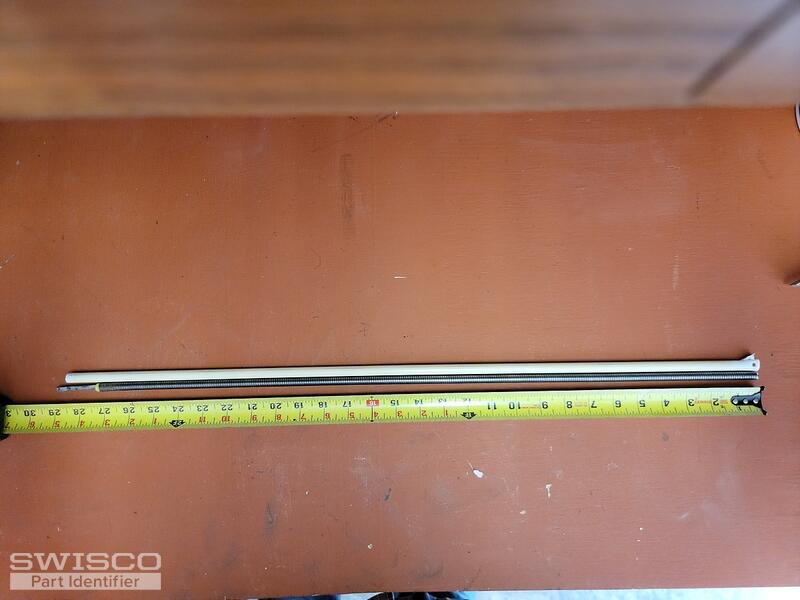

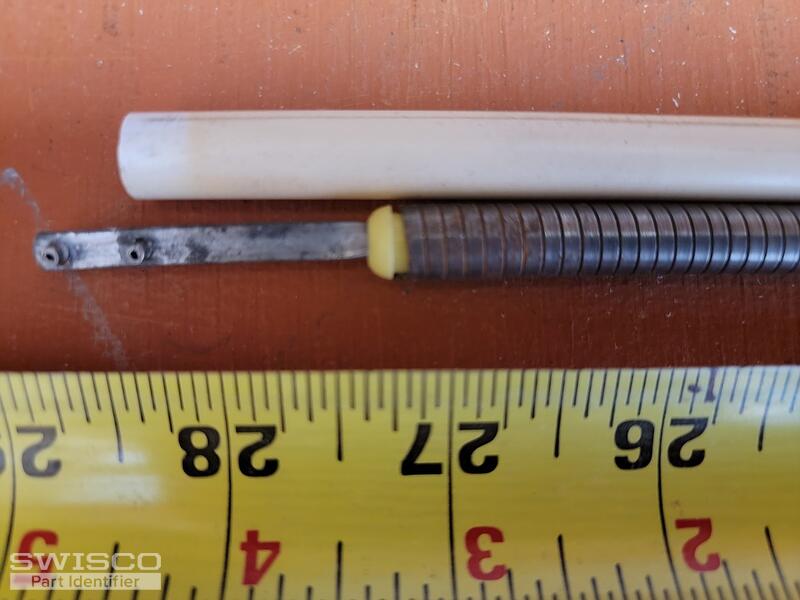

Looking for 3/8 spiral balance for tilting window. The metal measure 27.25. They have plastic cover on them that measure 28.5. The connector color looks to be white or light yellow. Which part number and length do I order?
Thumbnail of the uploaded file named 20220227_141008.jpg
Thumbnail of the uploaded file named 20220227_140952.jpg
Profile picture of Emily
Emily from SWISCO responded:
March 1, 2022

Hello!

Your outer tube's diameter looks to be 5/8", so we recommend the S600-29 with the red tip option, which supports a sash weight of 7 to 29 pounds. You may want to weigh your sash on a scale and refer to the chart under the product description on the S600-29 store page to confirm that this option is appropriate for your sash.
