Spiral balance

Handy Person from Fayetteville Arkansas

Mar 18, 2025 12:48 pm

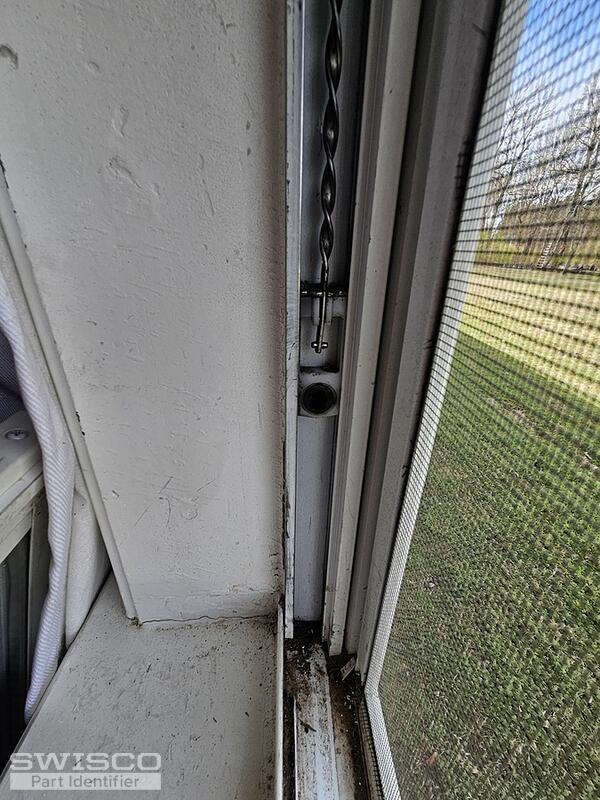

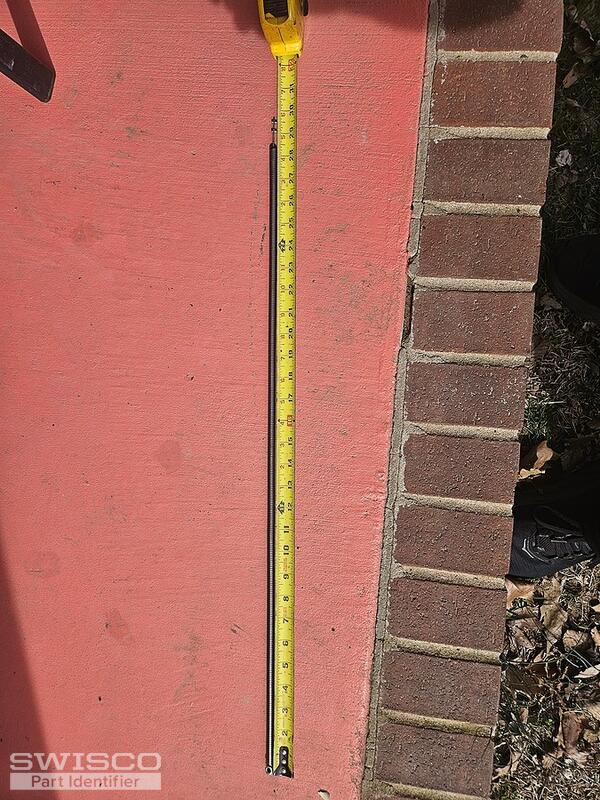

I'm looking for some of these, see uploaded pictures. The OD is 3/8 inches and the length as shown in one picture is 28-5/16 inches. The sash weighs 18 pounds. I also need a pivot shoe, but I reached the max number of files, so I will submit another request. Any help would be appreciated.

5 user uploaded images

3 Replies

Handy Person from Fayetteville Arkansas

Mar 18, 2025 1:02 pm

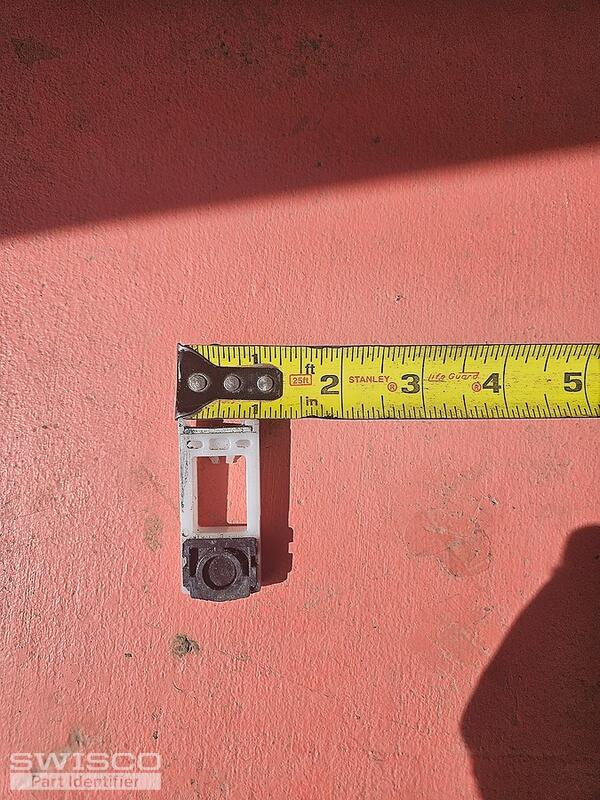

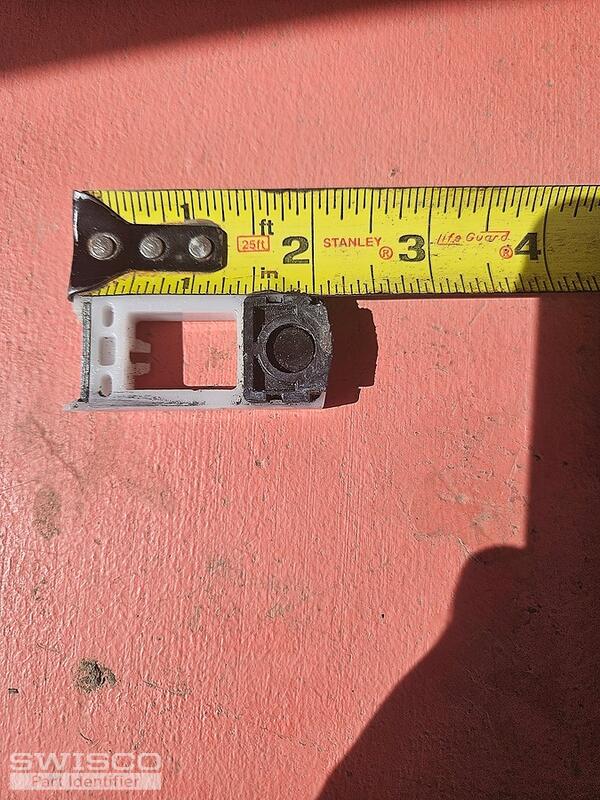

I am looking for this pivot shoe. I submitted a post for the spiral balance for this. The main white plastic body measures .35 inches where it fits in the channel though one small part measures .42 where the balancer attaches and .44 at the pivot. It measures .95 inches in width and the overall length is 2.16. These measurements were taken with calipers. Any help would be appreciated.

3 user uploaded images

Casey from SWISCO

Mar 20, 2025 11:47 am

Hello,

If the outer housing tube for your spiral balances measures 3/8" in diameter, see the S900-29 with red tip options to support an 18-pound sash.

We also offer the 15-212 pivot shoe used with these balances but make sure to confirm the width and thickness shown below match up to yours. Thanks for posting!

Alternate image for 15-212
