Spiral balance

Start a new Discussion

Quick Learner from US

Nov 3, 2017 8:38 am

I have a spiral window balance not working properly.

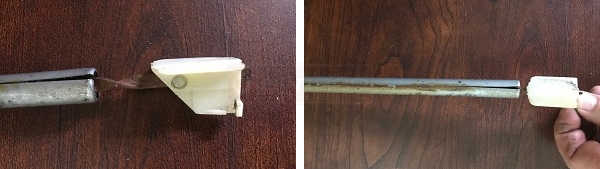

User submitted photos of a window balance.

4 Replies

Paul from SWISCO

Nov 8, 2017 11:33 am

Looks like you have a 3/8" thick spiral balance tube with a 15-020 nylon shoe attached. Please compare dimensions to the Series 300 balance, and see which one you need.

Quick Learner

Nov 8, 2017 3:08 pm

It's 5/8" or 9/16"

Paul from SWISCO

Nov 8, 2017 3:09 pm

In that case, you might have a 5/8" Series 200 tube balance with a 15-010 nylon shoe, or a Series 303 with an extended spiral and the 15-010 shoe. Please compare and see if either of these is the right balance for you. The plastic color will be different, but check the size.
