Spiral balance attachment??

Quick Learner from Haddonfield, NJ

Jun 3, 2017 7:05 pm

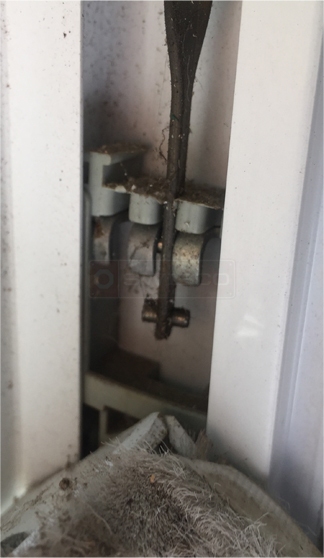

I need this to replace a broken one that the upper sash spiral balance connects to. See photo. The photo is of another window that operates correctly.

User submitted image of their window hardware.

6 Replies

Tom from SWISCO

Jun 6, 2017 1:09 pm

Looks like you need a pivot shoe. I think we can help, but we will need a bit more information. First, is there any way you can show me yours out of the window? Many important details are obscured. Can you also tell me its width and thickness?

Quick Learner from Haddonfield NJ

Jun 6, 2017 1:41 pm

I will take a better picture later today and provide the measurement.
Thanks!!

Tom from SWISCO

Jun 7, 2017 12:15 pm

Great, let me know whenever you can.

Quick Learner from Haddonfield, NJ

Jun 8, 2017 2:06 pm

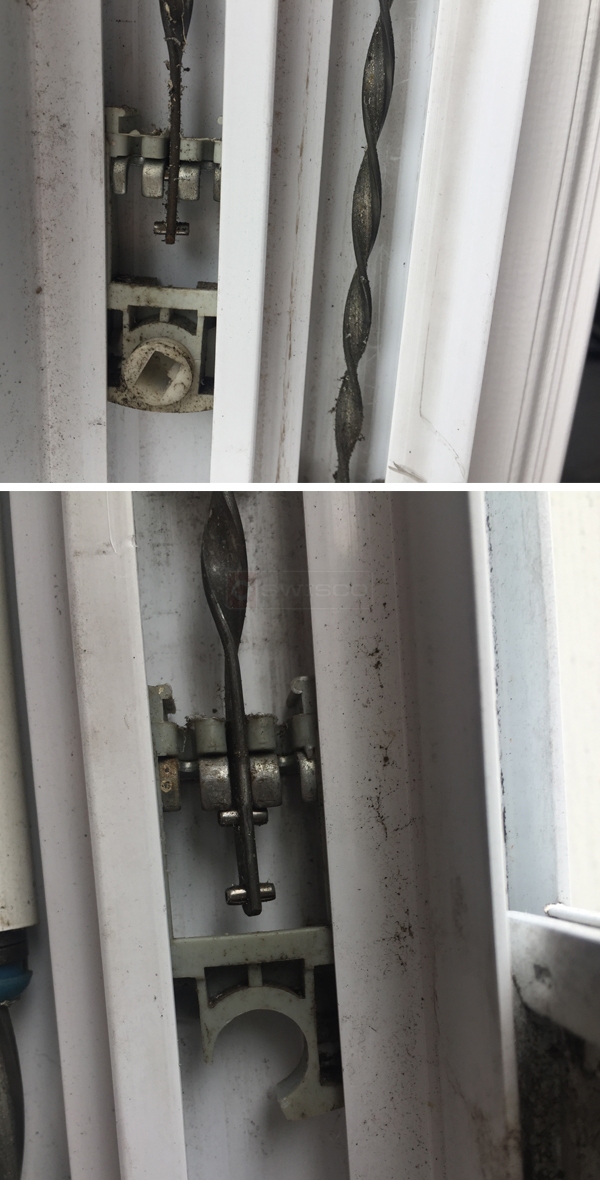

Here's a better picture. The broken one and an unbroken one. Not sure how to get it out of the track to measure. The window is from universal windows in Camden from 1995.

User submitted photos of a window balance.

Paul from SWISCO

Jun 12, 2017 10:19 am

This exact shoe is no longer made, but since the thickness is 9/16", I would recommend our 15-118 as a replacement.
